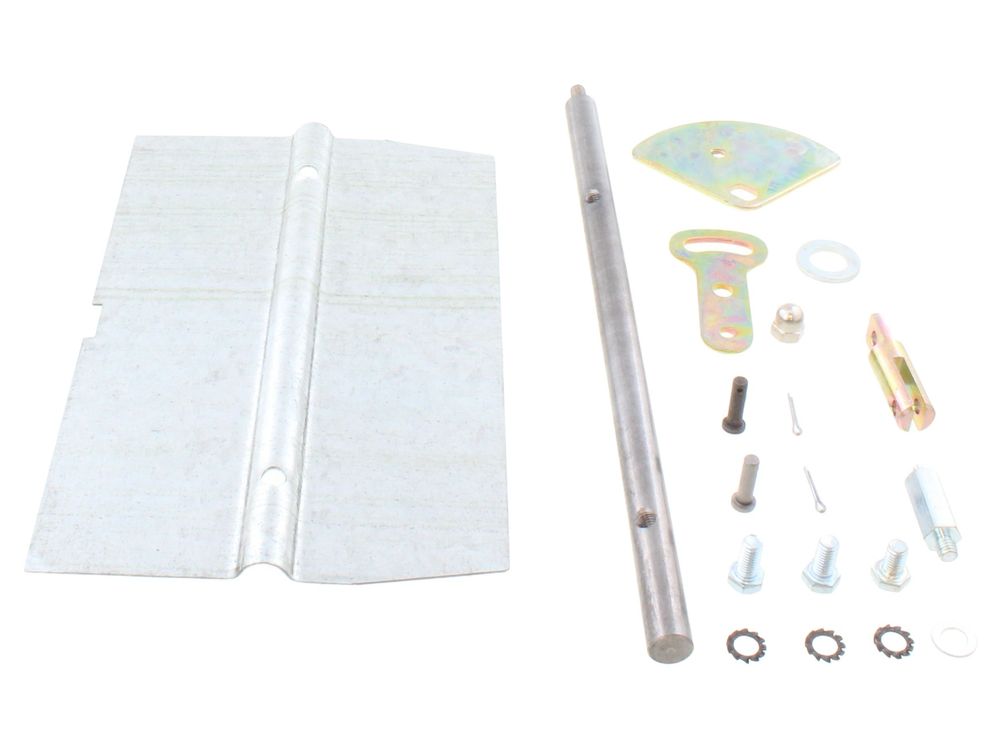

Riello Air Damper Assembly 3000609
Air damper assembly for Riello Press oil burners, controlling combustion air flow through the burner.
At a glance
- Also known as 3201152
£72.28
£60.23 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Riello 3000609 is an air damper assembly for Riello Press series oil burners. It regulates the volume of combustion air drawn into the burner, allowing the air setting to be matched to the nozzle and appliance. Correct damper operation is essential for stable combustion and clean, efficient running.
Signs this part needs replacing
- The damper blade no longer moves freely or is seized in one position
- Combustion readings cannot be set correctly, with the air setting drifting or unstable
- Visible distortion, corrosion or heat damage to the damper blade or linkage
- The damper does not respond when the burner is adjusted during commissioning
- Sooty or erratic combustion that persists after nozzle and pump checks
Before you order
- Confirm the burner model and code against the fitment list for your appliance
- Check whether the fault lies with the damper assembly or with the air adjustment linkage before ordering
- Have the burner's combustion settings re-checked after fitting, as damper position affects CO2 and smoke readings
- Note the burner type number from the data plate, as Press 1G, GBW and GW variants differ
Compliance
| Barcode / EAN | 4010009288657 |
|---|---|
| Alternative numbers | 3201152 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| RIELLO BURNER SPARES | — | — | — | |
| RIELLO PRESS 1G - CODE 20032906 - TYPE 606-T1 | — | — | — | |
| RIELLO PRESS 1G - CODE 3474520 - TYPE 606-T1 | — | — | — | |
| RIELLO PRESS 1G - CODE 3474582 - TYPE 606-T80 | — | — | — | |
| RIELLO PRESS 1G - CODE 3474587 - TYPE 606-T85 | — | — | — | |
| RIELLO PRESS GBW - CODE 20032930 - 605 T50 | — | — | — | |
| RIELLO PRESS GBW - CODE 3473754 - TYPE 605-T-50 | — | — | — | |
| RIELLO PRESS GW - CODE 3473720 - TYPE 605-T1 | — | — | — | |
| RIELLO PRESS GW - CODE 3473784 - TYPE 605-T80 | — | — | — | |
| RIELLO PRESS GW - CODE 3473787 - TYPE 605-T85 | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
RIELLO appliance manual — PRESS 1G - CODE 20032906 - TYPE 606-T1
manualmanualRIELLO appliance manual — PRESS 1G - CODE 3474520 - TYPE 606-T1, PRESS GW - CODE 3473720 - TYPE 605-T1
manualmanualRIELLO appliance manual — PRESS 1G - CODE 3474582 - TYPE 606-T80, PRESS 1G - CODE 3474587 - TYPE 606-T85
manualmanualRIELLO appliance manual — PRESS GBW - CODE 20032930 - 605 T50
manualmanualRIELLO appliance manual — PRESS GBW - CODE 3473754 - TYPE 605-T-50
manualmanualRIELLO appliance manual — PRESS GW - CODE 3473784 - TYPE 605-T80
manualNo technical questions yet for this part.
