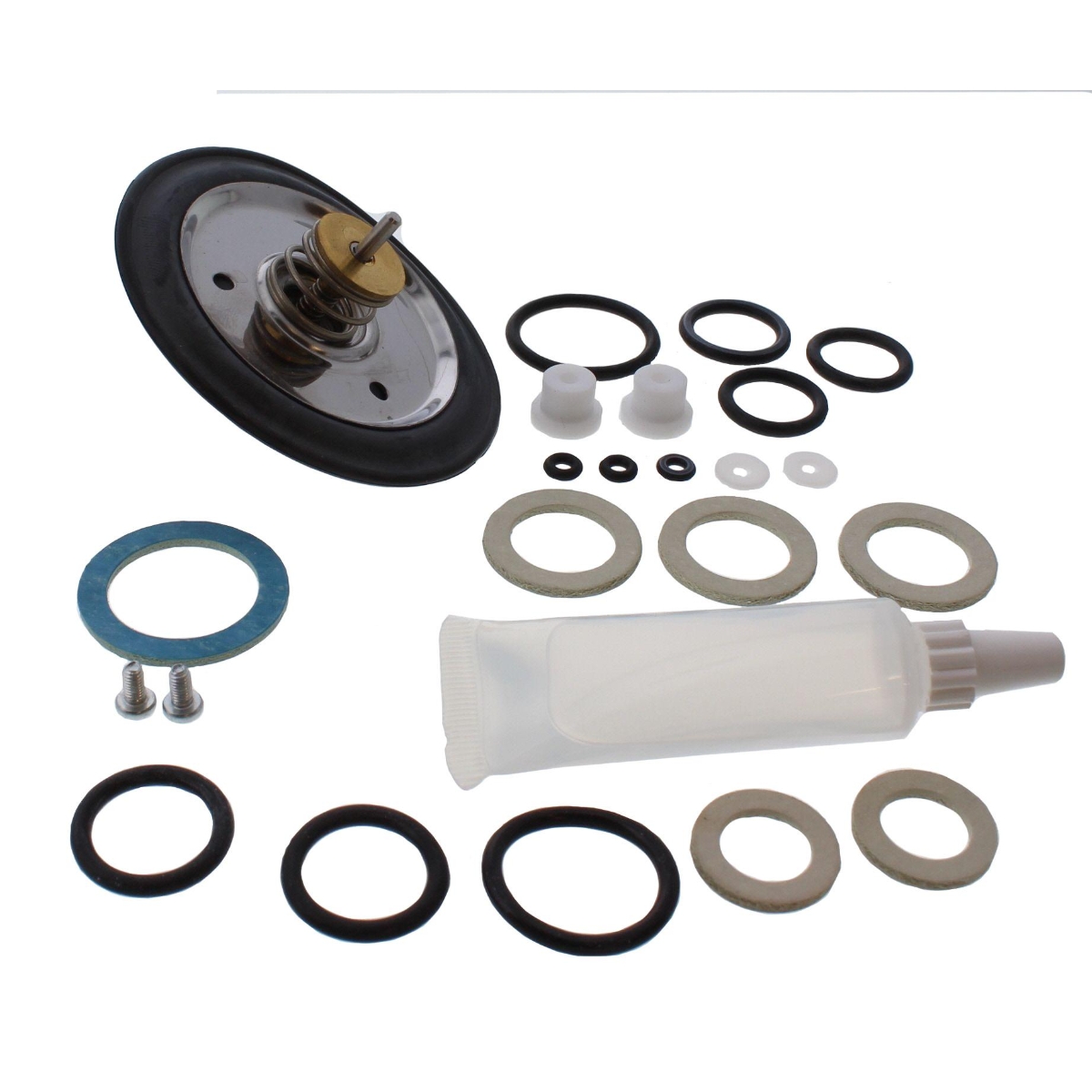

Alpha Diverter Valve Seal Kit 3.013391
Alpha diverter and flow valve seal kit, part 3.013391, for CB, CD and CDC boiler models; reseals the valve assembly against water leaks.
At a glance
- Part type: Gaskets, O-rings, seals and washers
- Also known as 1250616
£57.77
£48.14 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Alpha diverter and flow valve seal kit is a set of seals, O-rings, gaskets and washers used to reseal the diverter and flow valve assembly on Alpha boilers. It is supplied by Alpha under part number 3.013391 and sits in the gaskets, O-rings, seals and washers category. The seals sit at the joints and ports of the valve body, keeping water contained within the assembly during domestic hot water and heating operation.
Signs this part needs replacing
- Water weeping or dripping from the diverter and flow valve body
- Damp staining, corrosion or limescale trails around the valve joints
- Seals that look flattened, hardened or cracked when the valve is opened
- Scale or debris preventing the seals from seating correctly
- Loss of system pressure traced back to the valve assembly
Before you order
- Match part number 3.013391 and the GC number for your appliance against the compatibility list.
- Earlier number 3.013163 may appear on older documentation for the same kit.
- O-rings, gaskets, seals and washers are specific to a location within the boiler and are rarely interchangeable, so confirm the kit suits the diverter and flow valve on your model.
- Have the boiler GC number and serial number to hand when ordering.
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 3.013391 |
|---|---|
| Commodity code | 8484 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 3.013163, 1250616 |
| Previous numbers | 3.013163 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALPHA ALPHA CB24 | — | — | — | |
| ALPHA ALPHA CB24X | — | — | — | |
| ALPHA ALPHA CB28 | — | — | — | |
| ALPHA ALPHA CB28X | — | — | — | |
| ALPHA ALPHA CD24C | — | — | — | |
| ALPHA ALPHA CD24S | — | — | — | |
| ALPHA ALPHA CD32C | — | — | — | |
| ALPHA ALPHA SY24 | — | — | — | |
| ALPHA CB24 | 47-532-15 | 47-532-15 | — | — |
| ALPHA CB24 (LPG) | — | — | — |
Showing 10 of 32 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ALPHA appliance manual — CB24 (GC 47-532-15), CB24 (LPG), CB24X (GC 47-532-14), CB24X (LPG), CB28 (GC 47-532-16), CB28 (LPG), CB28X (GC 47-532-17), CB28X (LPG)
manualmanualALPHA appliance manual — CD18S (GC 41-532-06), CD18S (LPG) (GC 41-532-13), CD30S (GC 41-532-08), CD30S (LPG) (GC 41-532-14)
manualmanualALPHA appliance manual — CD24C (GC 47-532-19), CD24C (LPG) (GC 47-532-29), CD24S (GC 41-532-02), CD24S (LPG) (GC 41-532-15), CD32C (GC 47-532-21), CD32C (LPG) (GC 47-532-30)
manualmanualALPHA appliance manual — HE CB25 (GC 47-532-25), HE CB25 (LPG) (GC 47-532-27), HE CB33 (GC 47-532-26), HE CB33 (LPG) (GC 47-532-44)
manualmanualALPHA appliance manual — SY24 (GC 41-532-01), SY24 (LPG)
manualNo technical questions yet for this part.
