ALPHA3.013389 Seal Kit Diaphragm Dhw In Diverter
At a glance
- Part type: DHW diaphragm seal
- Also known as ALPHA3.013389
£39.31
£32.76 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

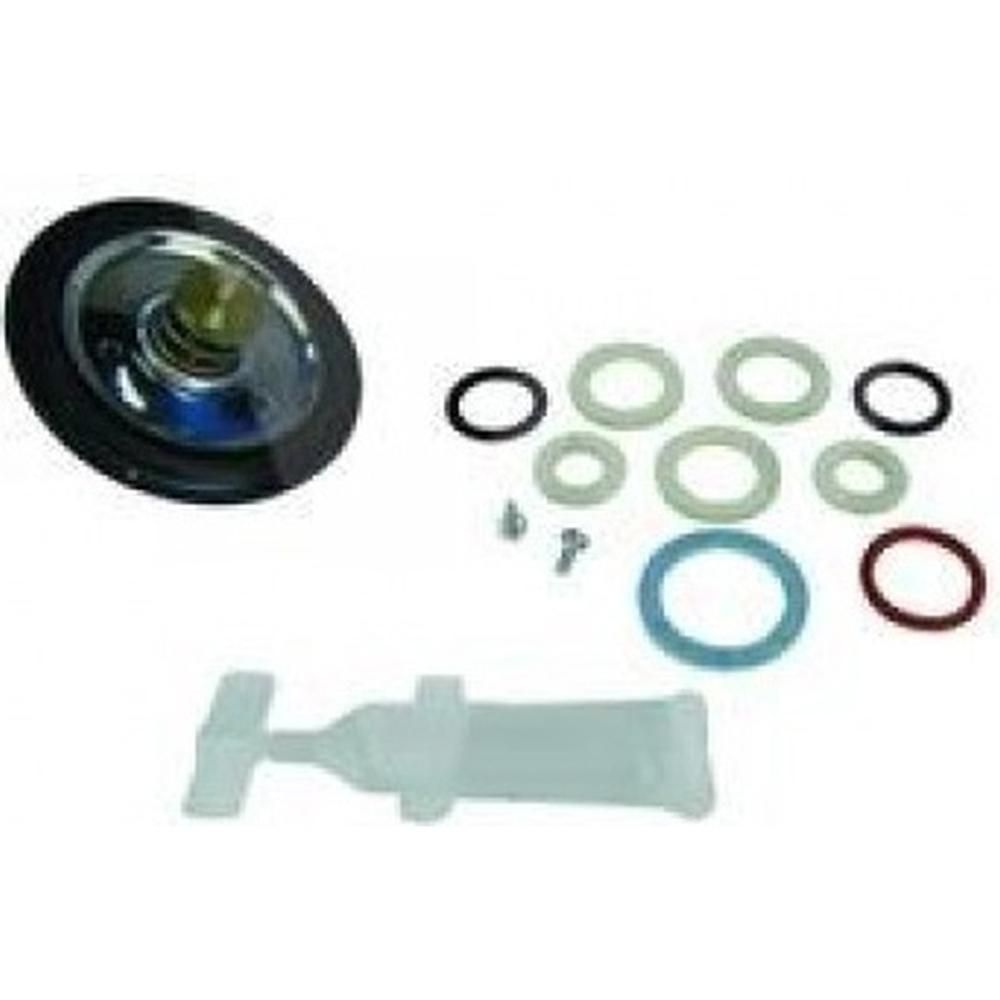

The Alpha DHW diaphragm seal is a replacement sealing component for the domestic hot water diaphragm assembly used across the Alpha CB and CD appliance ranges. It sits within the diaphragm housing, where it maintains a tight, airtight joint so the diaphragm can respond correctly to changes in water pressure and demand. A sound seal here keeps the hot water circuit operating as intended and prevents water from escaping past the diaphragm seating.
Signs this part needs replacing
- No hot water when a tap is opened, with the appliance failing to respond to a hot water demand
- Hot water that runs intermittently or fluctuates between hot and cold
- Water weeping or pooling around the diaphragm housing or adjacent joints
- A diaphragm that has hardened, split or distorted when the housing is opened
- Repeated loss of pressure in the hot water circuit after the diaphragm has been disturbed
Before you order
- Check the appliance model and GC number against the compatibility information to confirm this seal is the correct item
- Compare the number on the existing part with 3.013389 and the alternative number 013389
- Inspect the diaphragm and housing for scale or debris, as a worn diaphragm often needs replacing at the same time as the seal
- Confirm whether any other seals or washers in the same assembly also need renewing before the appliance is reassembled
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Appliance family | CB24/28, CD24C/S |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 3.013389 |
|---|---|
| Commodity code | 4016 93 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | ALPHA3.013389, 1250614 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALPHA ALPHA CB24 | — | — | — | |
| ALPHA ALPHA CB24X | — | — | — | |
| ALPHA ALPHA CB28 | — | — | — | |
| ALPHA ALPHA CB28X | — | — | — | |
| ALPHA ALPHA CD24C | — | — | — | |
| ALPHA ALPHA CD32C | — | — | — | |
| ALPHA CB24 | 47-532-15 | 47-532-15 | — | — |
| ALPHA CB24 (LPG) | — | — | — | |
| ALPHA CB24X | 47-532-14 | 47-532-14 | — | — |
| ALPHA CB24X (LPG) | — | — | — |
Showing 10 of 30 compatible appliances.
