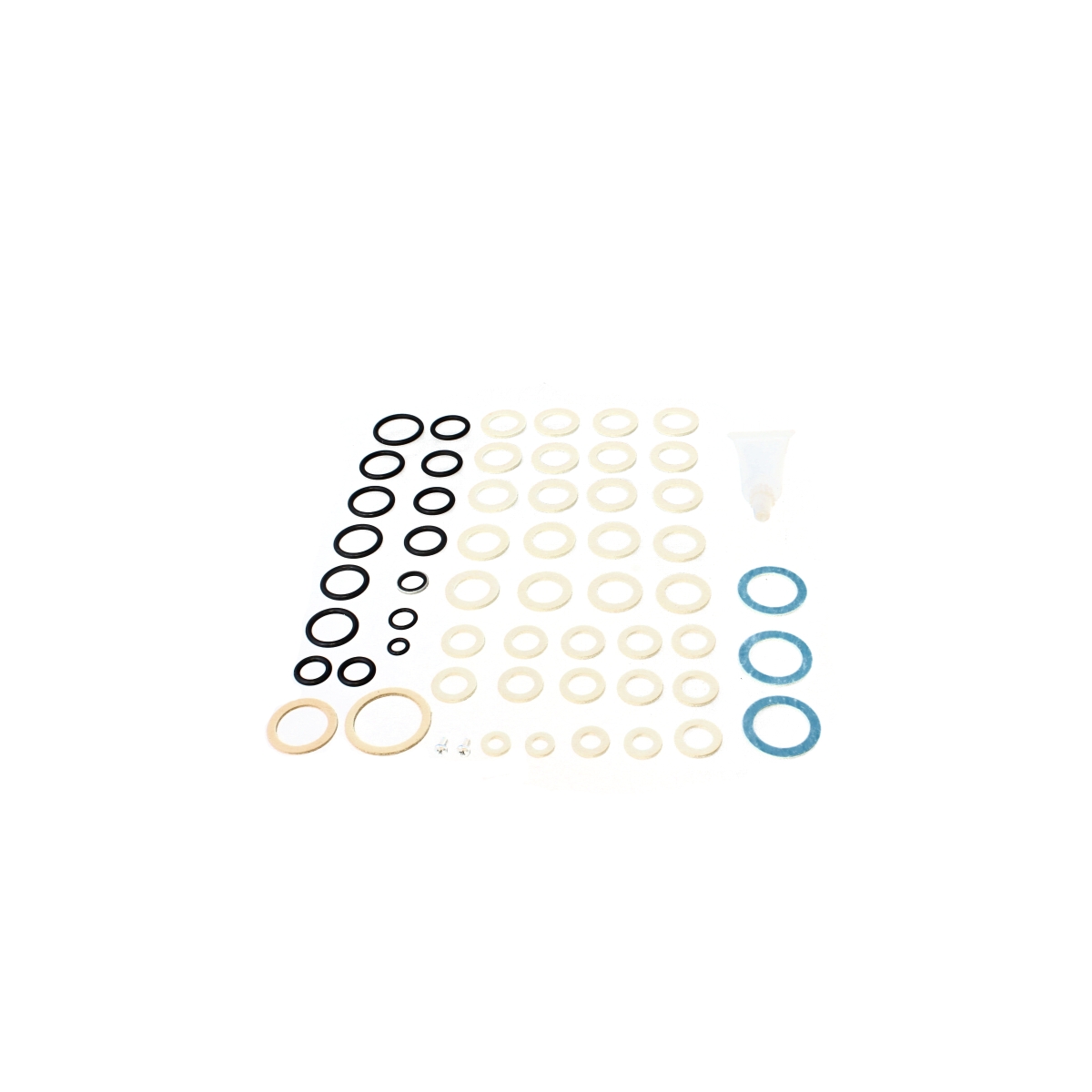

Alpha Seal Kit Water Complete 3.013386
Alpha Water Complete Seal Kit 3.013386 for the diverter valve section of Alpha C23, C27 and CB series combi boilers.
At a glance
- Part type: Gaskets, seals and washers
- Also known as 1250611
£37.96
£31.63 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Alpha Water Complete Seal Kit is a service kit of gaskets, O-rings, seals and washers for the water section of Alpha combi boilers. It is built around the diverter valve assembly, the mechanism that switches the boiler between central heating and domestic hot water production. Replacing the seals in this section restores a sound seal on the water-carrying components and is a common step when the diverter valve area is stripped down for repair.
Signs this part needs replacing
- Water weeping or dripping from the diverter valve area of the boiler
- Traces of scale or corrosion around the water section joints
- Loss of domestic hot water while central heating continues to run, or the reverse
- Boiler losing pressure with no visible leak elsewhere on the system
- Seals found flattened, hardened or split when the diverter valve is opened up
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the kit suits your model
- Confirm the part number on the existing component or in the boiler manual matches 3.013386
- Note the alternative numbers 1250611 and 013386, which may appear on older documentation or packaging
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 3.013386 |
|---|---|
| Barcode / EAN | 8015065352263 |
| Commodity code | 8484 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 7625854086517, ALPHA3.013386, 3013386, ALPHA3.013386, SEAL-KIT---WATER-COMPLETE-CB2428SYCD24CS, 1250611 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALPHA ALPHA C23 | — | — | — | |
| ALPHA ALPHA C27 | — | — | — | |
| ALPHA ALPHA CB24 | — | — | — | |
| ALPHA ALPHA CB24X | — | — | — | |
| ALPHA ALPHA CB28 | — | — | — | |
| ALPHA ALPHA CB28X | — | — | — | |
| ALPHA ALPHA CD24C | — | — | — | |
| ALPHA ALPHA CD24S | — | — | — | |
| ALPHA ALPHA CD32C | — | — | — | |
| ALPHA ALPHA SY24 | — | — | — |
Showing 10 of 40 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ALPHA appliance manual — C23 (GC 47-532-22), C23 (LPG), C27 (GC 47-532-23), C27 (LPG)
manualmanualALPHA appliance manual — CB24 (GC 47-532-15), CB24 (LPG), CB24X (GC 47-532-14), CB24X (LPG), CB28 (GC 47-532-16), CB28 (LPG), CB28X (GC 47-532-17), CB28X (LPG)
manualmanualALPHA appliance manual — CD18S (GC 41-532-06), CD18S (LPG) (GC 41-532-13), CD30S (GC 41-532-08), CD30S (LPG) (GC 41-532-14)
manualmanualALPHA appliance manual — CD24C (GC 47-532-19), CD24C (LPG) (GC 47-532-29), CD24S (GC 41-532-02), CD24S (LPG) (GC 41-532-15), CD32C (GC 47-532-21), CD32C (LPG) (GC 47-532-30)
manualmanualALPHA appliance manual — HE CB25 (GC 47-532-25), HE CB25 (LPG) (GC 47-532-27), HE CB33 (GC 47-532-26), HE CB33 (LPG) (GC 47-532-44), HE SY25 (GC 41-532-07), HE SY25 (LPG) (GC 41-532-12)
manualmanualALPHA appliance manual — SY24 (GC 41-532-01), SY24 (LPG)
