Alpha

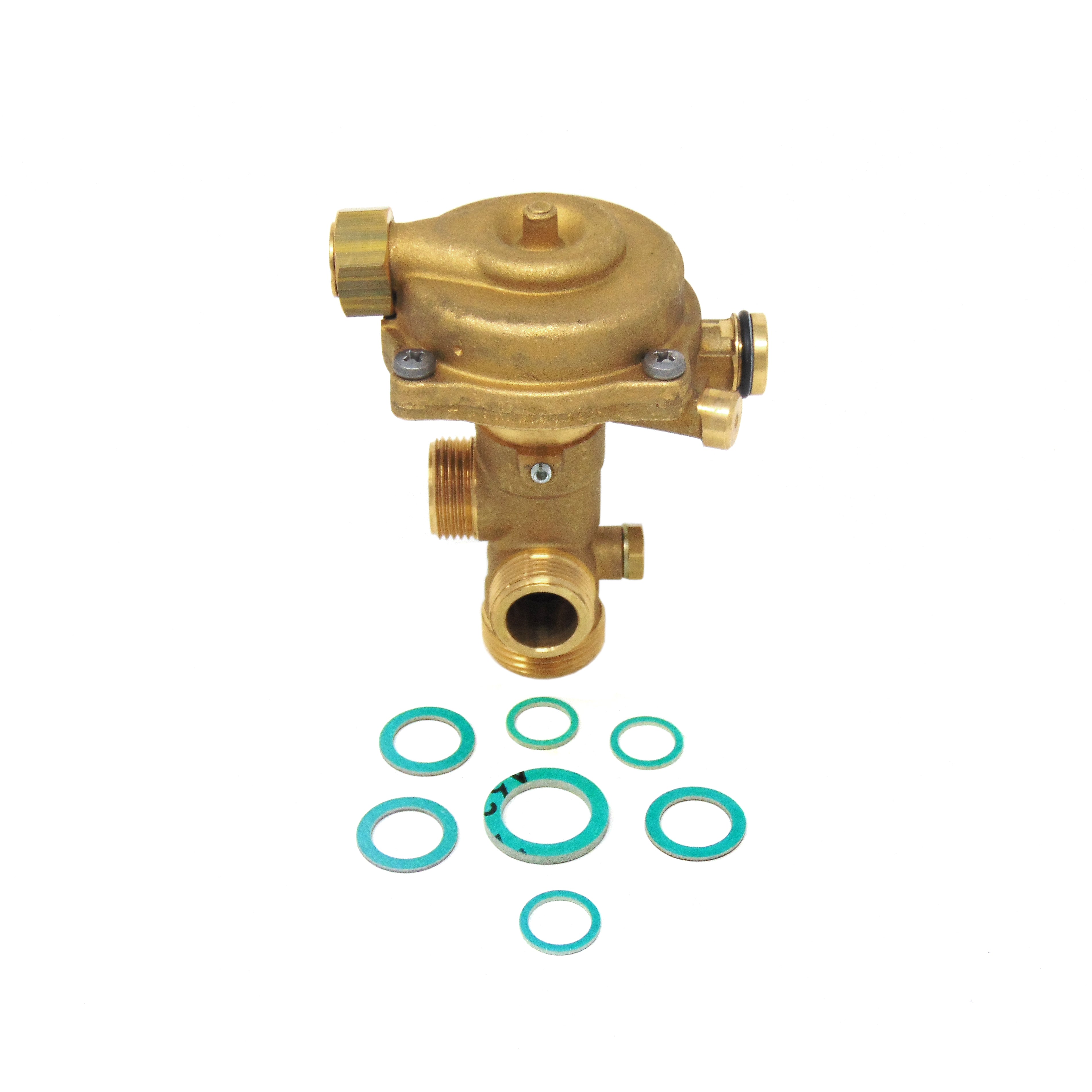

Alpha Diverter Valve Assembly 3.012752
At a glance
- Part type: Diverter valve assembly
- Also known as 1250584
£205.60
£171.33 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Alpha diverter valve assembly is a hydraulic component fitted inside Alpha combination and condensing boilers. It sits in the water circuit and moves to direct flow either to the domestic hot water heat exchanger or around the central heating loop, depending on what the boiler is being asked to do. It is supplied as a complete assembly under part number 3.012752.
Signs this part needs replacing
- Hot water runs cold or only lukewarm while the central heating continues to work normally
- Radiators warm up when only a hot water tap is opened
- Domestic hot water temperature swings between hot and cold during a draw-off
- Boiler locks out or reports a fault while running in hot water mode
- Tap temperature drops noticeably when a second outlet is used
Before you order
- Check the appliance model and GC number against the compatibility list to confirm the correct assembly for the boiler.
- Have the boiler serial number and model details to hand when ordering.
Mechanical
| Part type | Diverter Vlave |
|---|
Compliance
| Manufacturer part number (MPN) | 3.012752 |
|---|---|
| GC number | E57-773 |
| Barcode / EAN | 8015065351365 |
| Commodity code | 8481 80 99 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1250584 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| ALPHA ALPHA CB24 | — | — | — | |
| ALPHA ALPHA CB24X | — | — | — | |
| ALPHA ALPHA CB28 | — | — | — | |
| ALPHA ALPHA CB28X | — | — | — | |
| ALPHA ALPHA CD24C | — | — | — | |
| ALPHA ALPHA CD32C | — | — | — | |
| ALPHA ALPHA HE CB25 | — | — | — | |
| ALPHA ALPHA HE CB33 | — | — | — | |
| ALPHA CB24 | 47-532-15 | 47-532-15 | — | — |
| ALPHA CB24 (LPG) | — | — | — |
Showing 10 of 24 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
ALPHA appliance manual — CB24 (GC 47-532-15), CB24 (LPG), CB24X (GC 47-532-14), CB24X (LPG), CB28 (GC 47-532-16), CB28 (LPG), CB28X (GC 47-532-17), CB28X (LPG)
manualmanualALPHA appliance manual — CD24C (GC 47-532-19), CD24C (LPG) (GC 47-532-29), CD32C (GC 47-532-21), CD32C (LPG) (GC 47-532-30)
manualmanualALPHA appliance manual — HE CB25 (GC 47-532-25), HE CB25 (LPG) (GC 47-532-27), HE CB33 (GC 47-532-26), HE CB33 (LPG) (GC 47-532-44)
manualNo technical questions yet for this part.
