Vokera

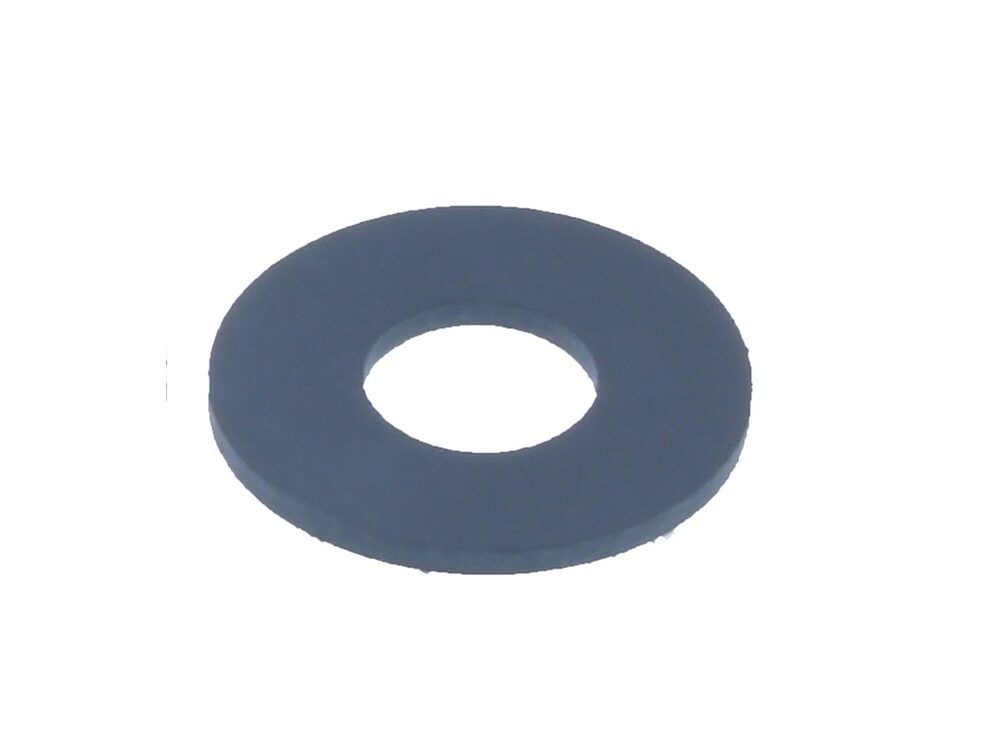

Vokera Bobbin Seating Washer 2913
Vokera 2913 bobbin seating washer for Linea and Eclipse gas boilers, sealing the bobbin seating face.
At a glance
- Part type: bobbin seating washer
- Also known as BOBBIN-SEATING-WASHER, 1530213
Showing prices
£2.10
£1.75 ex. VAT · VAT at 20%
Available to order · 3 working days
Available to order · 3 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vokera 2913 is a bobbin seating washer for Vokera gas boilers. It provides the seating seal for the bobbin, preventing leakage at the seating face. It is a service part for the Linea and Eclipse appliance families.
Signs this part needs replacing
- Visible cracking, flattening or perishing of the washer
- Weeping or staining at the bobbin seating face
- A gas smell around the seating area
- Burner pressure that drifts or cannot be set reliably
- Water or condensate tracking past the seating
Before you order
- Confirm your boiler model against the fit list above.
- For Linea 24 and Linea 28, check the serial number break to identify Mk1 or Mk2.
- Check the existing washer or the manufacturer's parts list for your appliance.
- Washers are consumable items and should be replaced if disturbed during servicing.
Compliance
| GC number | E06-320 |
|---|---|
| Alternative numbers | BOBBIN-SEATING-WASHER, 1530213 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VOKERA ECLIPSE ESC | 47-094-24 | 47-094-24 | — | — |
| VOKERA LINEA 24 MK1 - UP TO 161380001 | 47-094-27 | 47-094-27 | — | — |
| VOKERA LINEA 24 MK2 - AFTER 161380001 | 47-094-27 | 47-094-27 | — | — |
| VOKERA LINEA 28 MK1 - UP TO 164370001 | 47-094-28 | 47-094-28 | — | — |
| VOKERA LINEA 28 MK2 - AFTER 164370001 | 47-094-28 | 47-094-28 | — | — |
| VOKERA LINEA MAX SE | 47-094-30 | 47-094-30 | — | — |
| VOKERA VOKERA LINEA MAX SE | — | — | — |
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
VOKERA appliance manual — ECLIPSE ESC (GC 47-094-24)
manualmanualVOKERA appliance manual — LINEA 24 MK1 - UP TO 161380001 (GC 47-094-27), LINEA 24 MK2 - AFTER 161380001 (GC 47-094-27), LINEA 28 MK1 - UP TO 164370001 (GC 47-094-28), LINEA 28 MK2 - AFTER 164370001 (GC 47-094-28)
manualmanualVOKERA appliance manual — LINEA MAX SE (GC 47-094-30)
