Drayton Controls
Drayton MA1/679-3 22mm Mid-Position Valve 27101

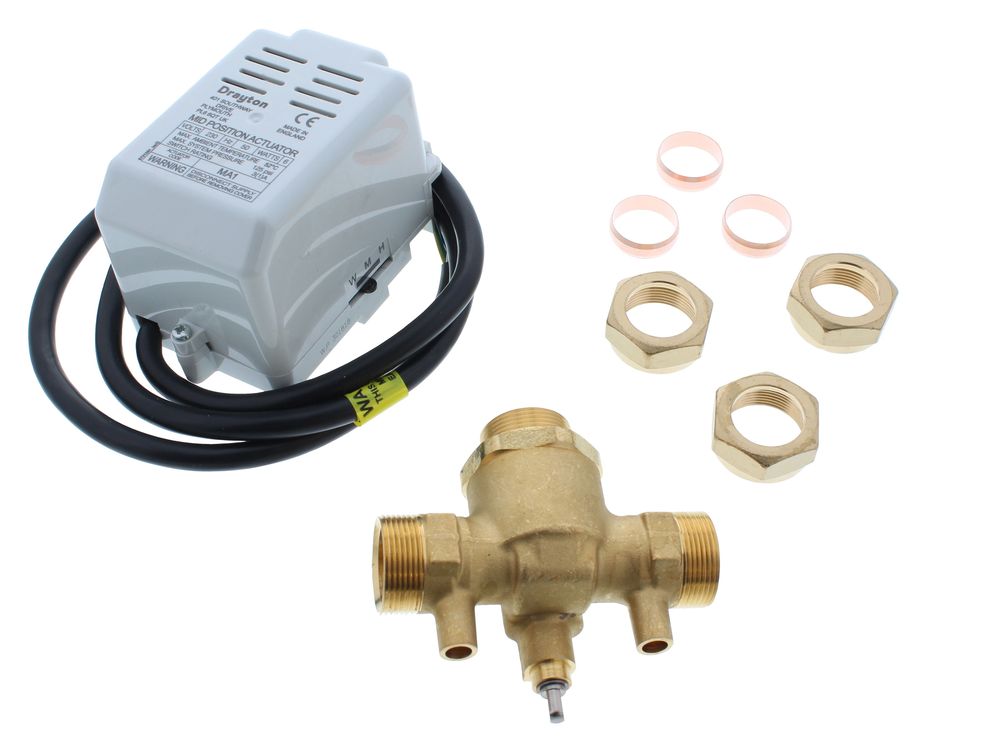

A 22mm 3-port mid-position motorised valve with a snap-on removable actuator, for one heating zone and one hot water zone.
At a glance
- Also known as 4221015
£120.29
£100.24 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Drayton MA1/679-3 is a 3-port mid-position motorised valve controlled by a room or cylinder thermostat, directing water flow to the heating circuit, the hot water circuit, or both together (mid-position). It has a manual lever for direct control when the motor is not powered.
Signs this part needs replacing
- Valve stuck in one position, so heating or hot water won't run independently
- Motor humming but the valve not moving
- Water leaking from the valve body
- Actuator failing to snap on or off correctly
- No movement from the manual override lever
Before you order
- Confirm you need a 3-port mid-position valve, not a 2-port zone valve
- Isolate the electrical supply before replacing the actuator
- Drain down the heating system before removing the valve body
- Check your pipework is 22mm compression
Mechanical
| Part type | MOTORIZED VALVES - 3 PORT |
|---|
Compliance
| Manufacturer part number (MPN) | 27101 |
|---|---|
| Barcode / EAN | 5016254000012 |
| Alternative numbers | 4221015 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| DRAYTON CONTROLS MOTORIZED VALVES | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No documents held for this part. The technical team will source them from the manufacturer — usually the same working day.
