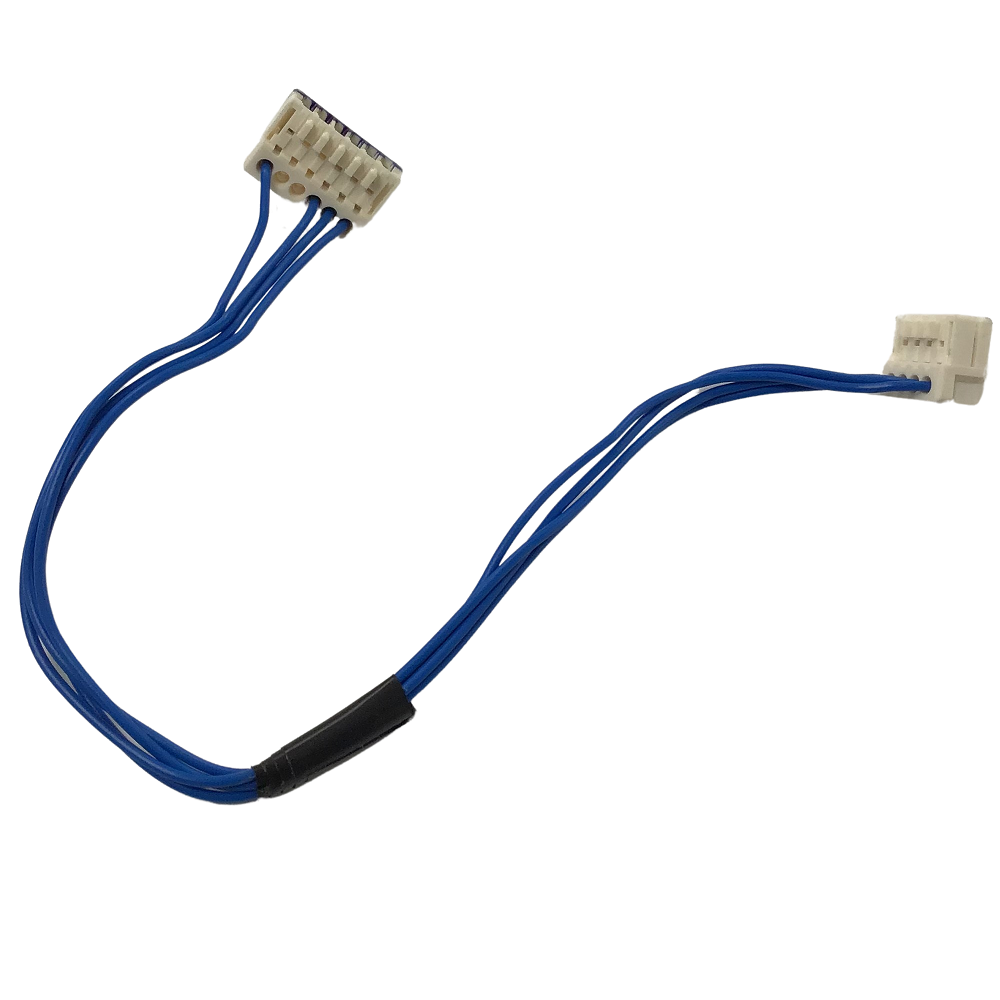

Vaillant 256136 Cable Tree
At a glance
- Part type: Cable tree (wiring harness)
- Also known as 1377622, VAILLANT256136
£29.40
£24.50 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant cable tree, part number 256136, is a wiring harness assembly used to route and connect electrical circuits within a Vaillant heating appliance. It carries the low-voltage and control wiring between the appliance's electrical components, keeping the loom tidy and the connections secure inside the casing. It is supplied as a Vaillant spare for service and repair work on the manufacturer's standard water heater range.
Signs this part needs replacing
- The appliance fails to power up or does not respond to the controls
- Intermittent operation, flickering displays or repeated lockouts
- Fault codes relating to communication or sensor circuits
- Visible damage to the loom: chafed, cracked or heat-affected insulation
- Loose, corroded or discoloured connectors, or a plug that will not latch
Before you order
- Confirm the part number 256136 matches the number shown on the existing harness or in the appliance's parts list
- Check the appliance model and GC number against the compatibility list below, as Vaillant used different looms across its ranges
- Inspect the connectors and the components the loom feeds before fitting, since a damaged plug or socket can cause the replacement to fail in the same way
Mechanical
| Part type | Cable tree |
|---|
Compliance
| Manufacturer part number (MPN) | 256136 |
|---|---|
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 4024074165362, VAILLANT256136, VAILLANT256136, VAILLANT256136, 256191035383, 43375659, 1377622 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT VUW 246/2-C | 47-044-12 | 47-044-12 | — | — |
| VAILLANT ecoMAX 824/2 E-C VUW 246/2 E-C (2001-2006) | 47-044-12 | 47-044-12 | — | — |
