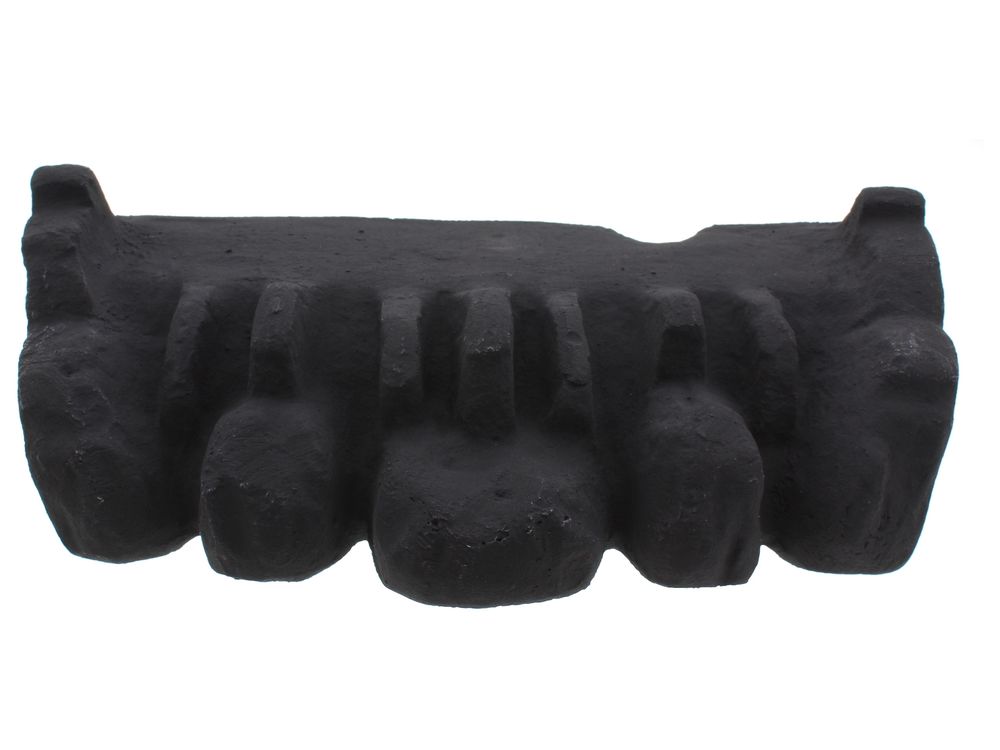

Baxi Fuelbed Assembly Rear 247607

The Baxi 247607 is a rear coalbed assembly — the moulded fuelbed that sits at the back of the firebox and forms part of the combustion and exhaust arrangement on Baxi Bermuda Inset 3 appliances. It is classified by Baxi as a fluebed component within the combustion and exhaust group of spares, and it carries the manufacturer's 1 year guarantee. The coalbed shapes the flame picture and the path of combustion products across the rear of the firebox, so its condition directly affects how the fire looks and burns.

• Coals or the moulded bed are cracked, crumbling or breaking away from the rear of the firebox
• Sooting or blackening across the rear fuelbed after servicing
• A flame picture that has become uneven, patchy or noticeably different from the original
• Discolouration or heat damage that has changed the shape of the bed
• Visible gaps or movement where the rear coalbed should sit flush

• Check the appliance GC number against the compatibility list before ordering, as Bermuda Inset 3 variants use different fuelbed layouts
• Confirm the part number 247607 or the alternative number 1116530 on the existing component or in the appliance documentation
• Inspect the surrounding seals and gaskets while the firebox is open and replace any that are perished
