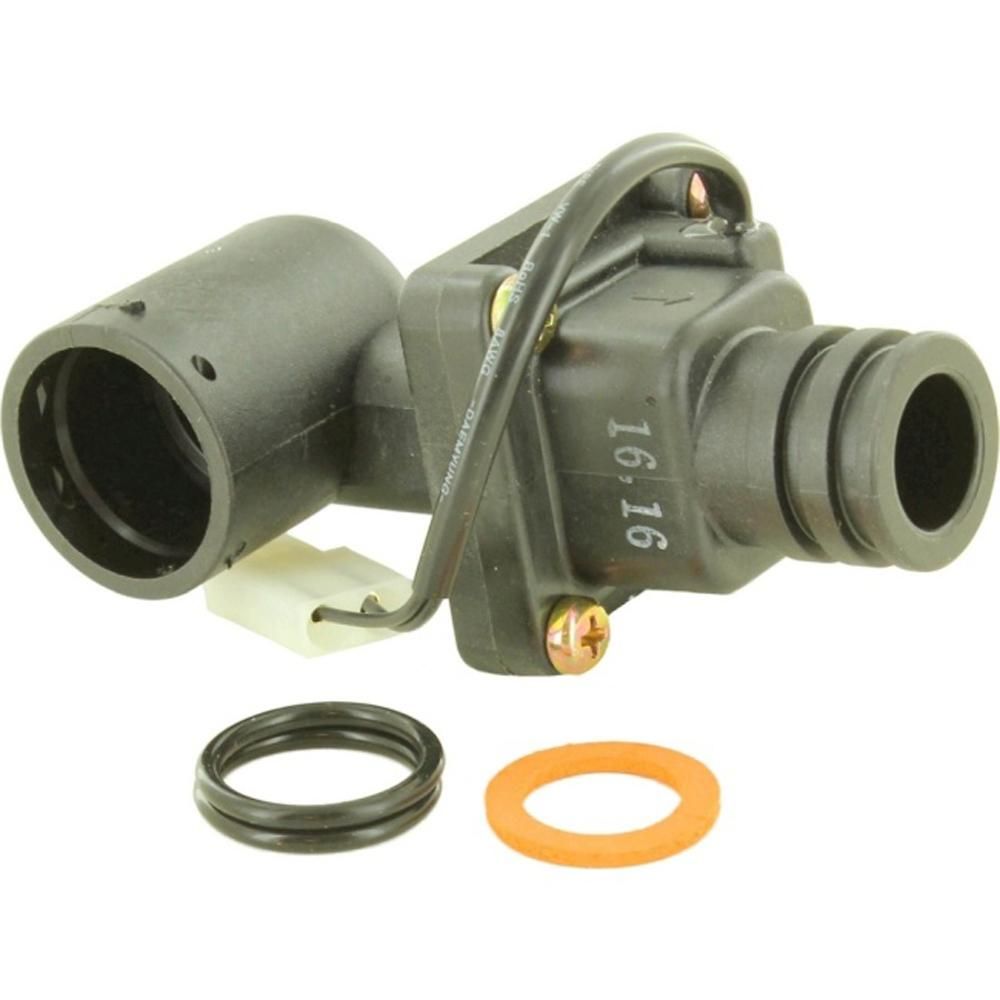

Baxi Flow Switch Adaptor Kit DHW 247502
Baxi 247502 DHW flow switch adaptor kit for Baxi Combi HE models, sensing hot water draw to trigger boiler firing.
At a glance
- Part type: Flow switch
- Also known as 1116480
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£100.80
£84.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 247502 is a DHW flow switch adaptor kit manufactured by Baxi for its Combi HE range. It carries the flow switch that monitors water movement through the domestic hot water circuit, so the boiler recognises a hot water draw and fires to heat the water. The adaptor mounts the switch in the DHW side of the appliance, where it responds to changes in flow as taps are opened and closed.
Signs this part needs replacing
- The boiler does not fire when a hot tap is opened, leaving no domestic hot water.
- Hot water is intermittent, or the temperature at the tap fluctuates during a draw.
- The boiler fires briefly on a hot water demand and then shuts down.
- A fault code relating to DHW flow or water sensing appears on the appliance display.
- Scale, debris or a sticking switch mechanism interrupts reliable flow detection.
Before you order
- Check the appliance model and GC number on the data badge against the compatibility list before ordering.
- Confirm whether the previous part number 246229 is the number currently fitted to the appliance.
- Check whether a gasket or seal is needed for the DHW manifold joint when the adaptor is replaced.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Flow Switches |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 247502 |
|---|---|
| GC number | E78-750 |
| Barcode / EAN | 5039177616566 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 246229, 1116480 |
| Previous numbers | 246229 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI COMBI 100 HE PLUS | — | — | — | |
| BAXI BAXI COMBI 130HE | — | — | — | |
| BAXI BAXI COMBI 133HE PLUS | — | — | — | |
| BAXI BAXI COMBI 80HE PLUS | — | — | — | |
| BAXI COMBI 100 HE PLUS | 47-075-15 | 47-075-15 | — | — |
| BAXI COMBI 130HE | 47-075-04 | 47-075-04 | — | — |
| BAXI COMBI 133HE PLUS | 47-075-14 | 47-075-14 | — | — |
| BAXI COMBI 80HE PLUS | 47-075-16 | 47-075-16 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
