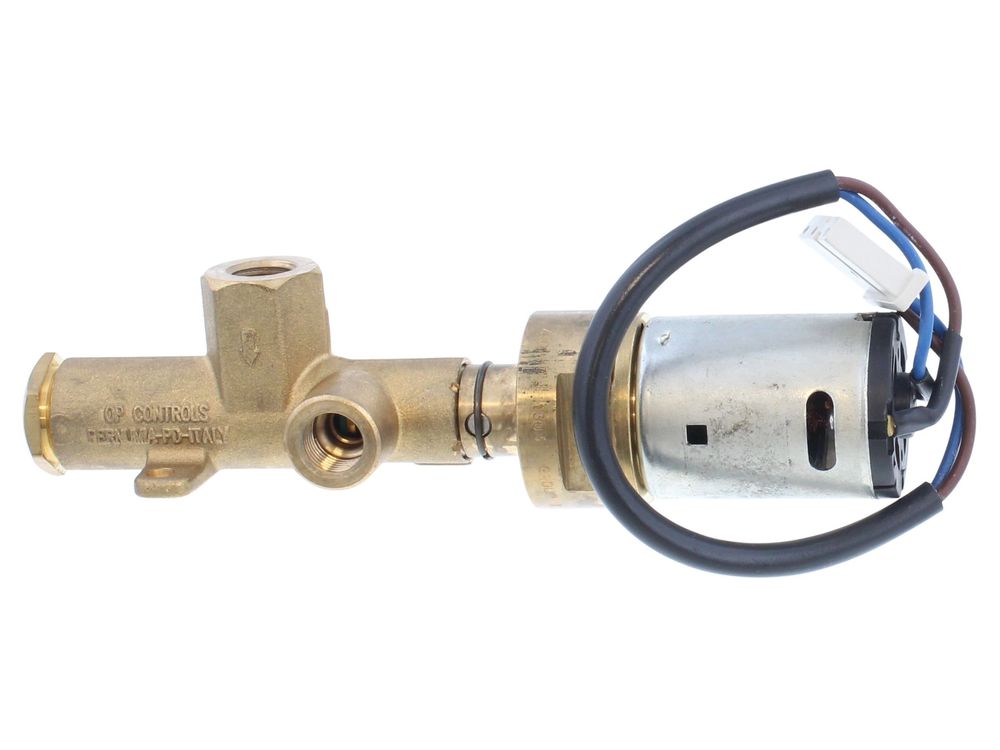

Baxi Motorised Valve & Lead Kit 244862
Motorised valve and lead kit for Baxi Bermuda Inset 2 and Inset 3 back boiler appliances.
At a glance
- Also known as 1115466
Showing prices
£281.08
£234.23 ex. VAT · VAT at 20%
Available to order · 7 working days
Available to order · 7 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi Motorised Valve & Lead Kit is a diverter valve assembly supplied with its electrical lead, used on Baxi Bermuda Inset 2 and Inset 3 back boiler appliances. The motorised head drives the valve to divert water between the heating circuit and the domestic hot water store or cylinder according to demand. It is supplied under Baxi part number 244862.
Signs this part needs replacing
- Heating runs when only hot water is called for, or hot water runs when only heating is called for
- The motorised head fails to move the valve through its full travel, or is heard running continuously without changing position
- Stiff or seized valve spindle causing the actuator to stall or buzz
- No hot water or no heating despite the programmer and cylinder thermostat calling correctly
- Water weeping from the valve body or spindle gland
Before you order
- Confirm the appliance model against the fit list above, as the valve and lead are matched to specific Bermuda Inset 2 and Inset 3 variants
- Check the part number on the existing valve or lead matches 244862
- Inspect the wiring connection and lead length on the existing valve before removal so the replacement connects to the same harness
- Confirm whether the fault lies with the actuator head, the valve body, or the wiring before ordering
Compliance
| GC number | E26-020 |
|---|---|
| Barcode / EAN | 5039177612223 |
| Alternative numbers | 1115466 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BERMUDA INSET 2 BS DELUXE | 37-075-29 | 37-075-29 | — | — |
| BAXI BERMUDA INSET 2 BS RENEWAL | 37-075-19 | 37-075-19 | — | — |
| BAXI BERMUDA INSET 2 FS DELUXE | 37-075-30 | 37-075-30 | — | — |
| BAXI BERMUDA INSET 2 FS DELUXE RENEWAL | 37-075-34 | 37-075-34 | — | — |
| BAXI BERMUDA INSET 2 KS DELUXE | 37-075-31 | 37-075-31 | — | — |
| BAXI BERMUDA INSET 2 KS DELUXE RENEWAL | 37-075-35 | 37-075-35 | — | — |
| BAXI BERMUDA INSET 2 SUPER BS FIRE FRONT | 37-075-40 | 37-075-40 | — | — |
| BAXI BERMUDA INSET 2 SUPER BS FIRE FRONT RENEWAL | 37-075-45 | 37-075-45 | — | — |
| BAXI BERMUDA INSET 2 SUPER CS FIRE FRONT | 37-075-44 | 37-075-44 | — | — |
| BAXI BERMUDA INSET 2 SUPER CS FIRE FRONT RENEWAL | 37-075-49 | 37-075-49 | — | — |
Showing 10 of 34 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
BAXI appliance manual — BERMUDA INSET 2 SUPER BS FIRE FRONT (GC 37-075-40), BERMUDA INSET 2 SUPER BS FIRE FRONT RENEWAL (GC 37-075-45), BERMUDA INSET 2 SUPER CS FIRE FRONT (GC 37-075-44), BERMUDA INSET 2 SUPER CS FIRE FRONT RENEWAL (GC 37-075-49), BERMUDA INSET 2 SUPER FS FIRE FRONT (GC 37-075-43), BERMUDA INSET 2 SUPER FS FIRE FRONT RENEWAL (GC 37-075-48), BERMUDA INSET 2 SUPER KS FIRE FRONT (GC 37-075-42), BERMUDA INSET 2 SUPER KS FIRE FRONT RENEWAL (GC 37-075-47), BERMUDA INSET 2 SUPER TS FIRE FRONT (GC 37-075-41), BERMUDA INSET 2 SUPER TS FIRE FRONT RENEWAL (GC 37-075-46)
manualmanualBAXI appliance manual — BERMUDA INSET 3 BB SUPER (GC 37-075-62), BERMUDA INSET 3 BB SUPER RENEWAL (GC 37-075-62), BERMUDA INSET 3 BC SUPER (GC 37-075-65), BERMUDA INSET 3 BC SUPER RENEWAL (GC 37-075-69), BERMUDA INSET 3 BS SUPER FIRE FRONT (GC 37-075-56), BERMUDA INSET 3 BS SUPER RENEWAL FIRE FRONT (GC 37-075-60), BERMUDA INSET 3 CB SUPER (GC 37-075-63), BERMUDA INSET 3 CB SUPER RENEWAL (GC 37-075-67), BERMUDA INSET 3 FS SUPER FIRE FRONT (GC 37-075-51), BERMUDA INSET 3 FS SUPER RENEWAL FIRE FRONT (GC 37-075-59), BERMUDA INSET 3 KS SUPER FIRE FRONT (GC 37-075-54), BERMUDA INSET 3 KS SUPER FIRE FRONT RENEWAL (GC 37-075-58), BERMUDA INSET 3 SC SUPER (GC 37-075-64), BERMUDA INSET 3 SC SUPER RENEWAL (GC 37-075-68), BERMUDA INSET 3 TS SUPER FIRE FRONT (GC 37-075-57), BERMUDA INSET 3 TS SUPER FIRE FRONT RENEWAL (GC 37-075-61)
manualNo technical questions yet for this part.
