Baxi

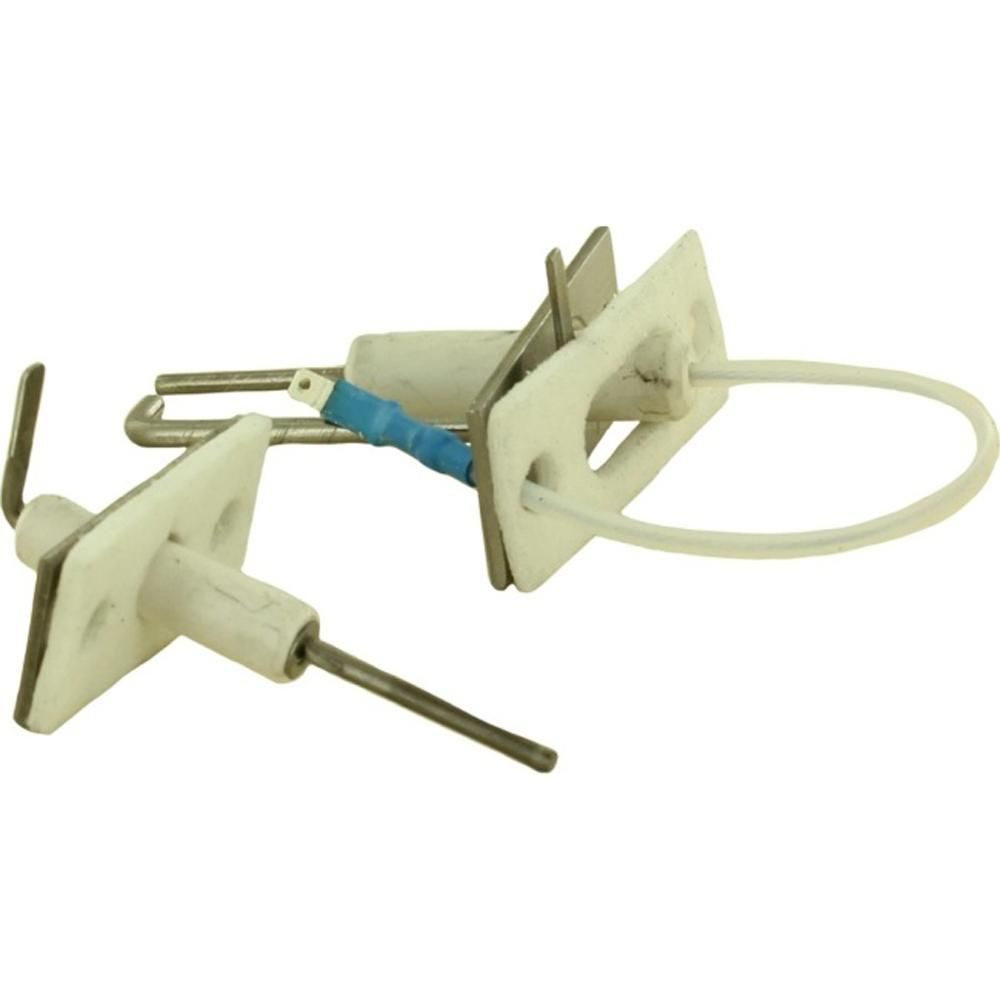

Baxi Electrode Kit Ignition and Flame Sensing 242490
Baxi ignition and flame sensing electrode kit (242490) for Baxi 100HE and Barcelona boilers, GC numbers 41-075-32 and 41-075-02.
At a glance
- Part type: Electrodes & Ignitions
- Also known as 1114842
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£24.00
£20.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 242490 is an electrode kit for Baxi gas boilers, covering the ignition and flame sensing functions in a single service part. It is mounted in the combustion area and delivers the high-voltage spark that lights the burner, then returns the flame rectification signal to the control board so the boiler can prove combustion and continue running. It is catalogued by Baxi under the Electrodes & Ignitions spare part category.
Signs this part needs replacing
- The boiler fails to light, or lights and then extinguishes shortly afterwards
- Repeated lockouts with an ignition or flame detection fault code on the display
- No visible spark at the burner when there is a call for heat
- Cracked, sooty or eroded electrode tips, or a discoloured and brittle ceramic insulator
- Intermittent ignition that is worse in damp conditions or after the boiler has been idle
Before you order
- Confirm the GC number on the appliance data badge matches 41-075-32 or 41-075-02
- Compare the electrode currently fitted against the previous numbers 9302640 and B242490 before ordering
- Check the burner or combustion cover gasket and renew it if it is compressed or damaged
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Electrodes & Ignitions |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 242490 |
|---|---|
| GC number | E06-091 |
| Barcode / EAN | 5039177609414 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 9302640, B242490, 1114842 |
| Previous numbers | 9302640, B242490 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI 100HE | 41-075-32 | 41-075-32 | — | — |
| BAXI BARCELONA | 41-075-02 | 41-075-02 | — | — |
