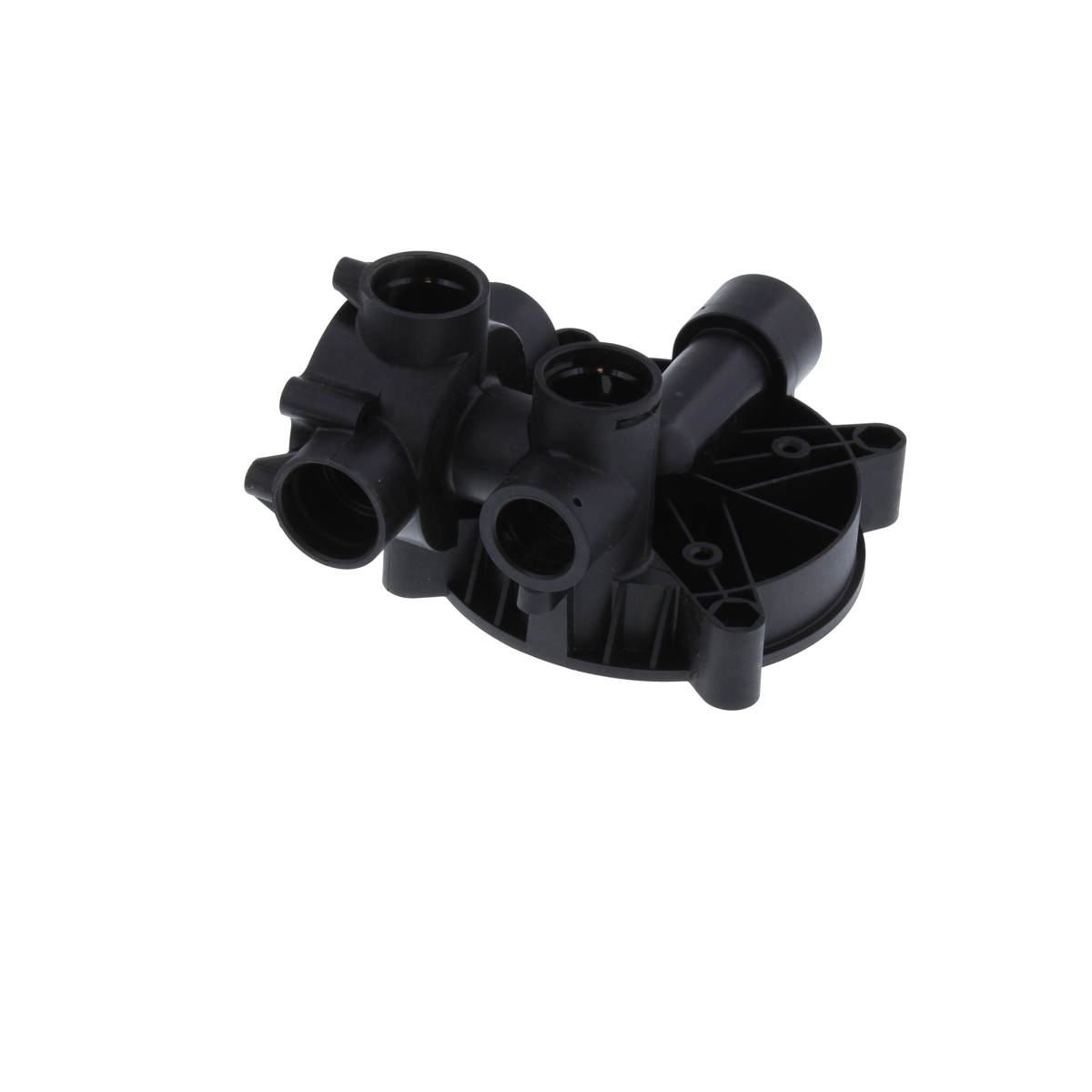

Baxi Pump Manifold Kit 242369
Baxi 242369 pump manifold kit for Baxi 100HE and Barcelona appliance families, covering diverter and hydraulic assemblies.
At a glance
- Part type: Diverter valves and hydraulics
- Also known as 1114782
£90.00
£75.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 242369 is a pump manifold kit forming part of the diverter valve and hydraulic assembly on Baxi gas appliances. It sits within the water circuit, carrying flow between the pump and the heat exchanger and supporting the diverter function that switches the appliance between heating and hot water. The kit is listed by Baxi under part type diverter valves and hydraulics and is used across the 100HE and Barcelona appliance families.
Signs this part needs replacing
- Heating or hot water output drops or fails to reach temperature
- Water weeping or staining around the pump manifold body or its connections
- Pump noise, vibration or a grinding note that persists after bleeding
- Diverter function sticking, so the appliance stays in one mode
- Repeated fault codes or lockouts linked to the hydraulic circuit
Before you order
- Check the GC number and appliance model against the compatibility list before ordering, as the same part number can appear across several variants.
- Confirm the number on the old component against the previous references 244742 and B244742 if the appliance has been serviced against an older parts list.
- Note that this part is discontinued with no replacement, so availability is limited to existing stock held by suppliers.
Mechanical
| Part type | Diverter valves and hydraulics |
|---|
Compliance
| Manufacturer part number (MPN) | 242369 |
|---|---|
| GC number | E24-466 |
| Barcode / EAN | 5039177609193 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 244742, B244742, 1114782 |
| Previous numbers | 244742, B244742 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI 100HE PLUS SYSTEM | 41-075-43 | 41-075-43 | — | — |
| BAXI BARCELONA SYSTEM | 41-075-03 | 41-075-03 | — | — |
| BAXI BAXI 100HE PLUS | — | — | — | |
| BAXI BAXI BARCELONA SYSTEM | — | — | — | |
| BAXI BAXI COMBI 130HE | — | — | — | |
| BAXI BAXI SOLO 3 30PF SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 30PFL SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 40PF SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 40PFL SYSTEM | — | — | — | |
| BAXI BAXI SOLO 3 50PF SYSTEM | — | — | — |
Showing 10 of 34 compatible appliances.
