Baxi

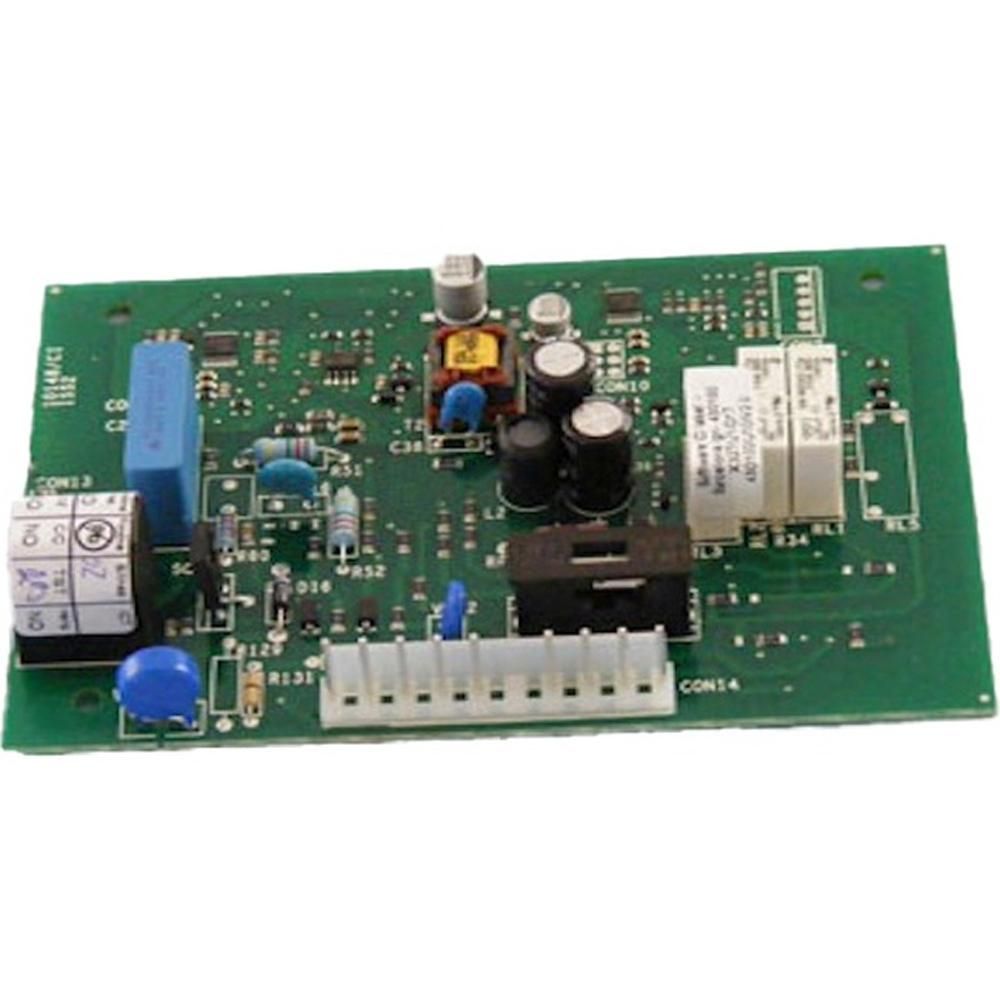

Baxi 241838 Potterton Electronic Ignition PCB
At a glance
- Part type: Ignitors and spark generators
- Also known as 1114608, BAXI241838
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£230.17
£191.81 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 241838 is an electronic ignition board assembly manufactured by Baxi. It sits within the appliance's control circuit and manages the ignition sequence, generating and regulating the spark that lights the burner. It is classed as an ignitor and spark generator spare and is used across Baxi water heating appliances.
Signs this part needs replacing
- The appliance calls for heat but the burner does not light and the sequence locks out.
- No spark is visible at the ignition electrode when the appliance is triggered.
- Ignition is intermittent, with the appliance lighting on some attempts and failing on others.
- The board shows visible heat damage, scorching or a burnt smell around the ignition output.
- Repeated lockout codes appear shortly after a reset, pointing to a failed ignition output rather than a gas or electrode fault.
Before you order
- Note the appliance model and GC number from the data badge and confirm them against the compatibility information.
- Check the existing board's part number and terminal layout against 241838 before removing any wiring.
- Inspect the ignition electrode, lead and its insulation at the same time, as a damaged lead can mimic a board fault.
- Isolate the electrical supply to the appliance before opening the casing or handling the board.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Ignitors & Spark Generators |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 241838 |
|---|---|
| GC number | E06-065 |
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | BAXI241838, 1114608 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI 100HE | 41-075-32 | 41-075-32 | — | — |
| BAXI BARCELONA | 41-075-02 | 41-075-02 | — | — |
| BAXI BARCELONA SYSTEM | 41-075-03 | 41-075-03 | — | — |
| BAXI BAXI 100HE | — | — | — | |
| BAXI BAXI BARCELONA | — | — | — | |
| BAXI BAXI BARCELONA SYSTEM | — | — | — | |
| BAXI BAXI PROMAX 15HE | — | — | — | |
| BAXI BAXI PROMAX 24HE | — | — | — | |
| BAXI BAXI PROMAX SYSTEM HE | — | — | — | |
| POTTERTON POTTERTON PROMAX 15HE | — | — | — |
Showing 10 of 12 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
