Baxi

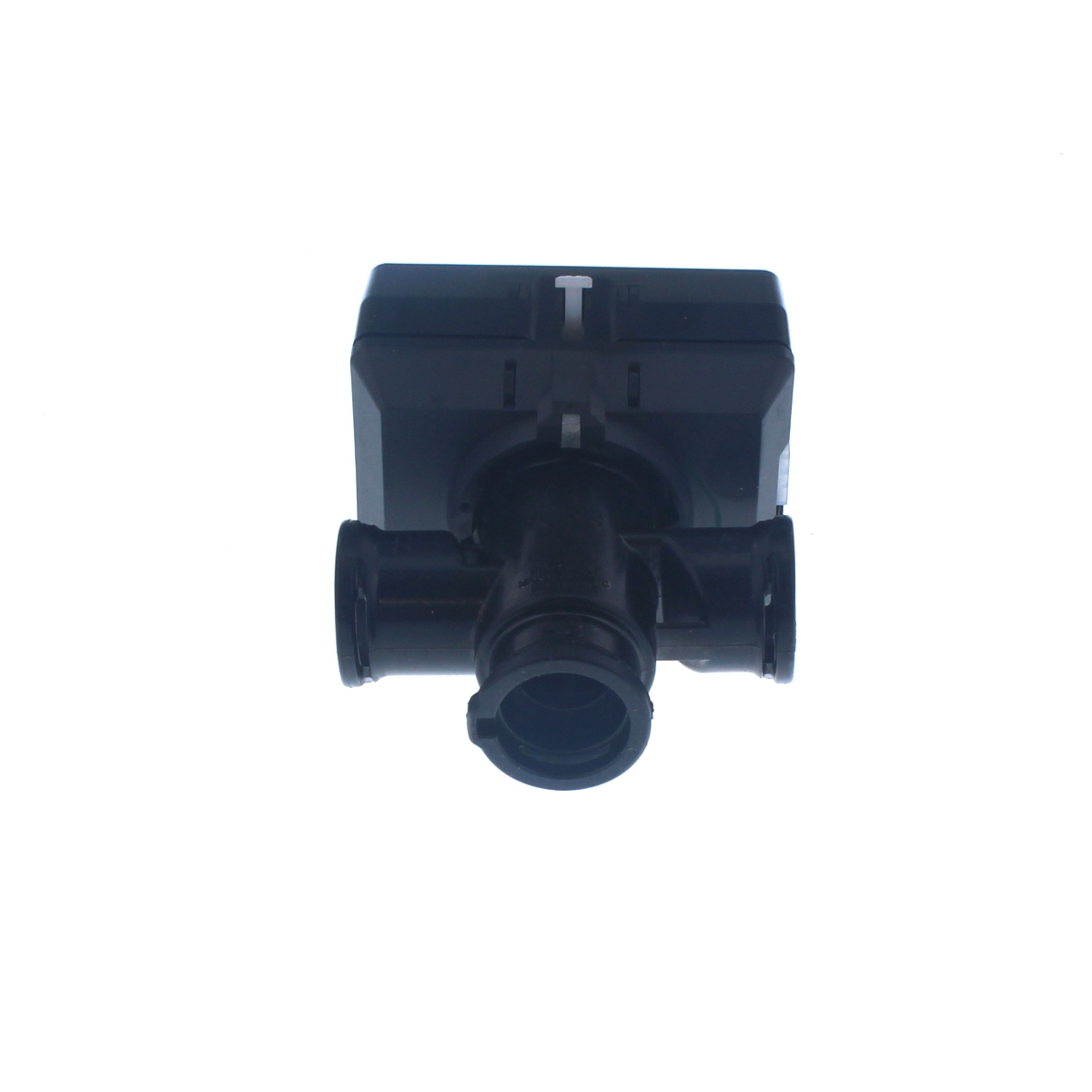

Baxi Diverter Valve Assembly 240398
Baxi 240398 diverter valve assembly for Bahama 100 combi boilers, switching primary water between central heating and domestic hot water.
At a glance
- Part type: Diverter valve assembly
- Also known as 1114132
£308.40
£257.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 240398 is a diverter valve assembly for Baxi combi boilers. It sits in the hydraulic circuit and directs heated primary water either around the central heating loop or through the domestic hot water heat exchanger, so a single heat source can serve radiators and taps. This assembly is used on the Bahama 100 range.
Signs this part needs replacing
- Hot water runs cold or only lukewarm while the central heating is working normally
- Radiators warm up when only hot water is drawn, or the heating stays cold when it is called for
- Domestic hot water temperature swings between hot and cold during a single draw-off
- The boiler does not switch cleanly between heating and hot water modes
- The valve body sticks, seizes or shows signs of leakage around the spindle or seals
Before you order
- Check the boiler model and GC number against the compatibility list, as Bahama 100 units were produced with Honeywell and SIT control variants
- Compare the part number on the existing valve with 240398 and the earlier numbers listed below
- Inspect the seals and O-rings when the valve is removed and renew them if they are worn or hardened
Mechanical
| Part type | Diverter & Motorised Valves |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 240398 |
|---|---|
| GC number | E02-770 |
| Barcode / EAN | 5039177605560 |
| Alternative numbers | 241165, 9102507, B241165, 1114132 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAHAMA 100 - HONEYWELL CONTROLS | 47-075-02 | 47-075-02 | — | — |
| BAXI BAHAMA 100 - SIT CONTROLS | 47-075-01 | 47-075-01 | — | — |
| BAXI BAXI BAHAMA 100 - HONEYWELL CONTROLS | — | — | — | |
| BAXI BAXI BAHAMA 100 - SIT CONTROLS | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
