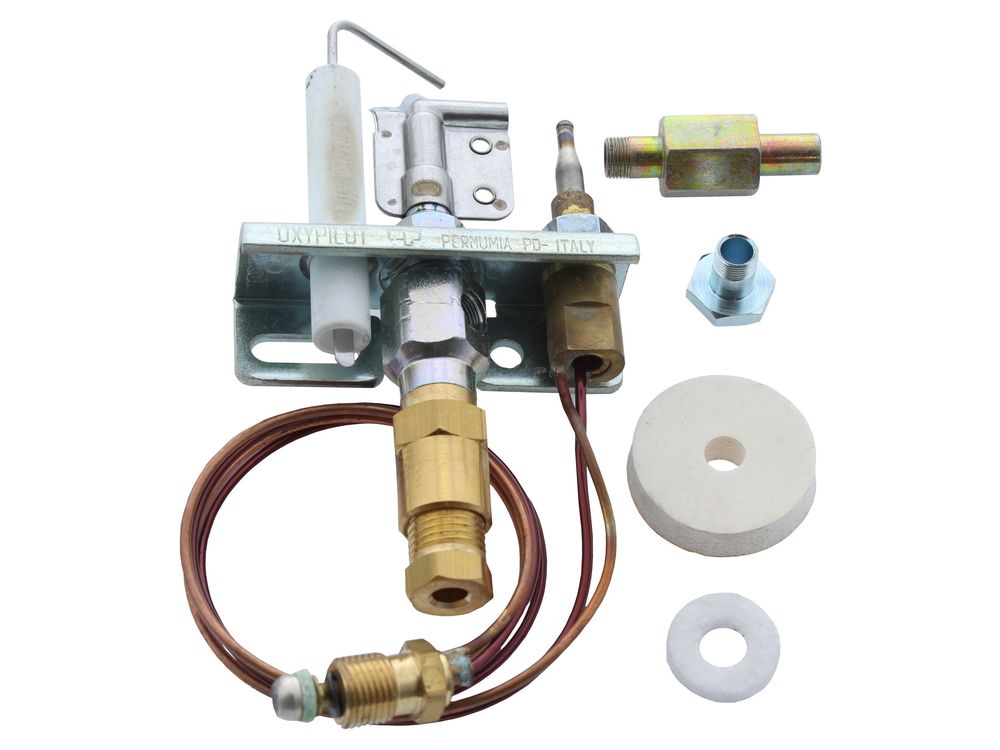

Baxi Pilot Assembly Kit 240117BAX
Baxi 240117BAX pilot assembly kit for Bermuda 45/4M, 45/4 Manual, 57/4 Manual and Inset 2 50/4M gas appliances.
At a glance
- Part type: Pilot burners / pilot assembly kit
- Also known as 1114046
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£90.05
£75.04 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 240117BAX Pilot Assembly Kit is a pilot burner assembly manufactured by Baxi for its Bermuda range of gas appliances. It provides the standing pilot flame that lights the main burner and carries the flame supervision element that signals the gas valve when a flame is established. Because it sits in the combustion path, it is a service item that wears with heat cycling and is replaced when the pilot becomes unreliable.
Signs this part needs replacing
- The pilot flame will not stay lit once the control knob is released.
- Repeated lockouts or the appliance failing to fire on a call for heat.
- A weak, yellow or lifting pilot flame instead of a steady blue flame.
- Visible heat damage, sooting or a distorted pilot head on inspection.
- The pilot lights intermittently or goes out during normal running.
Before you order
- Check the GC number on the appliance data badge against the list above, as Bermuda variants use different pilot assemblies.
- Confirm the number on the existing pilot assembly matches 240117BAX or one of the previous numbers listed below before ordering.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Pilot Burners |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 240117BAX |
|---|---|
| GC number | E02-415 |
| Barcode / EAN | 5039177604990 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 237818, 9016648, 9102259, 1114046 |
| Previous numbers | 237818, 9016648, 9102259 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI BERMUDA 45/4M | — | — | — | |
| BAXI BERMUDA 45/4 MANUAL | 44-077-71 | 44-077-71 | — | — |
| BAXI BERMUDA 57/4 MANUAL | 44-077-72 | 44-077-72 | — | — |
| BAXI BERMUDA INSET 2 50/4M | 44-075-01 | 44-075-01 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
