Baxi

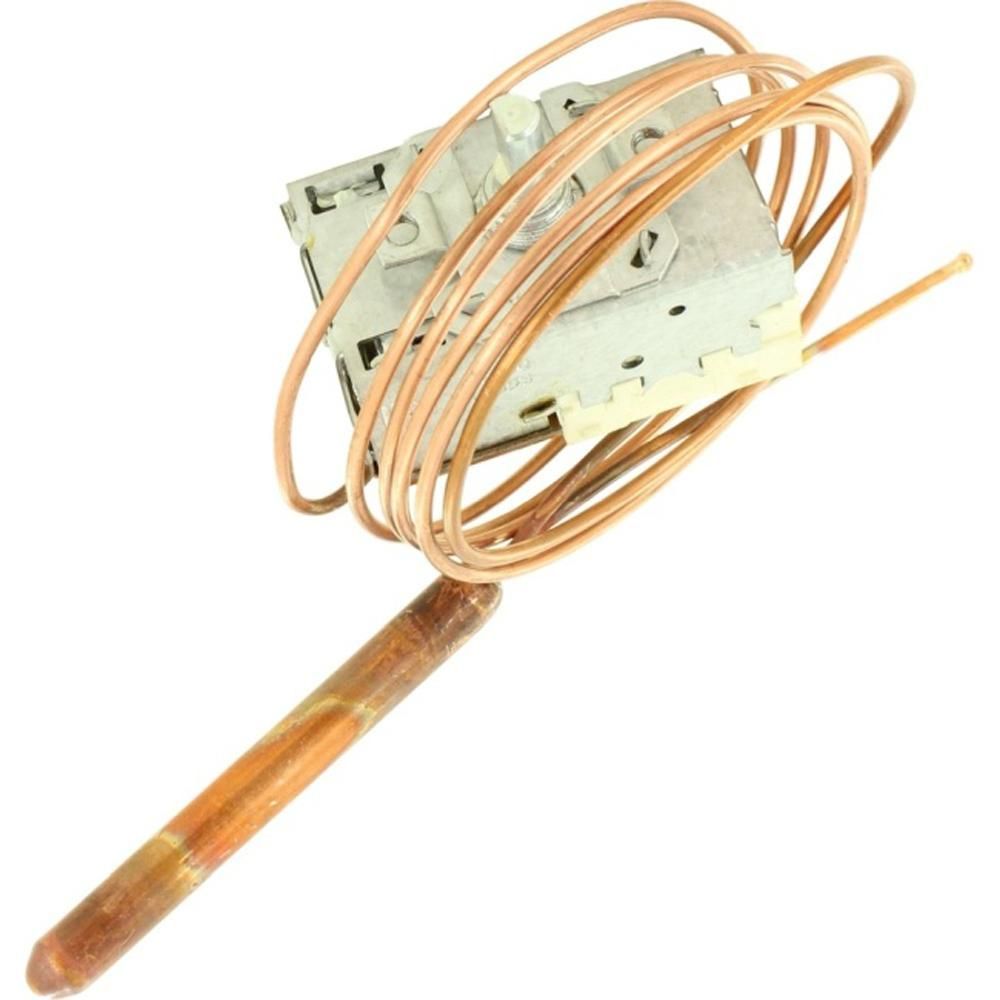

Baxi Boiler Thermostat 233952
Baxi 233952 boiler thermostat for Bermuda back boiler models, regulating appliance temperature for safe and efficient operation.
At a glance
- Part type: Thermostats, Thermistors & Sensors
- Also known as 1960150
£34.63
£28.86 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 233952 is a boiler thermostat supplied as a spare for Baxi Bermuda back boiler appliances. It senses appliance temperature and switches the burner accordingly, holding the boiler at its set point so the unit runs safely and efficiently. It is listed under the thermostats, thermistors and sensors spare part group.
Signs this part needs replacing
- The boiler runs continuously, or fails to fire, regardless of the thermostat setting
- Short cycling, with the burner switching on and off far more often than normal
- Appliance temperature drifts away from the value set on the control
- Repeated overheat lockouts or the need to reset the boiler
- Erratic or inconsistent switching of the burner during a heating cycle
Before you order
- Check the GC number on the appliance data badge against the models listed above before ordering.
- Confirm whether the appliance carries one of the previous part numbers shown below, as these identify the same thermostat.
- On Bermuda back boiler units, access to the thermostat normally requires the appliance casing to be removed, so allow time for a full strip-down and reassembly.
Mechanical
| Part type | Thermostats, Thermistors & Sensors |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 233952 |
|---|---|
| GC number | 379-999 |
| Barcode / EAN | 5039177595533 |
| Commodity code | 9032 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 234497, 9313112, 9559061, 1960150 |
| Previous numbers | 234497, 9313112, 9559061 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BAXI BERMUDA 45/3M | — | — | — | |
| BAXI BAXI BERMUDA 45/4M | — | — | — | |
| BAXI BAXI BERMUDA 57/3 M | — | — | — | |
| BAXI BAXI BERMUDA INSET 50/3 | — | — | — | |
| BAXI BERMUDA 45/3 MANUAL | 44-077-61 | 44-077-61 | — | — |
| BAXI BERMUDA 45/4 MANUAL | 44-077-71 | 44-077-71 | — | — |
| BAXI BERMUDA 57/3 MANUAL | 44-077-63 | 44-077-63 | — | — |
| BAXI BERMUDA 57/4 MANUAL | 44-077-72 | 44-077-72 | — | — |
| BAXI BERMUDA INSET 50/3 | 44-077-59 | 44-077-59 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
