Baxi

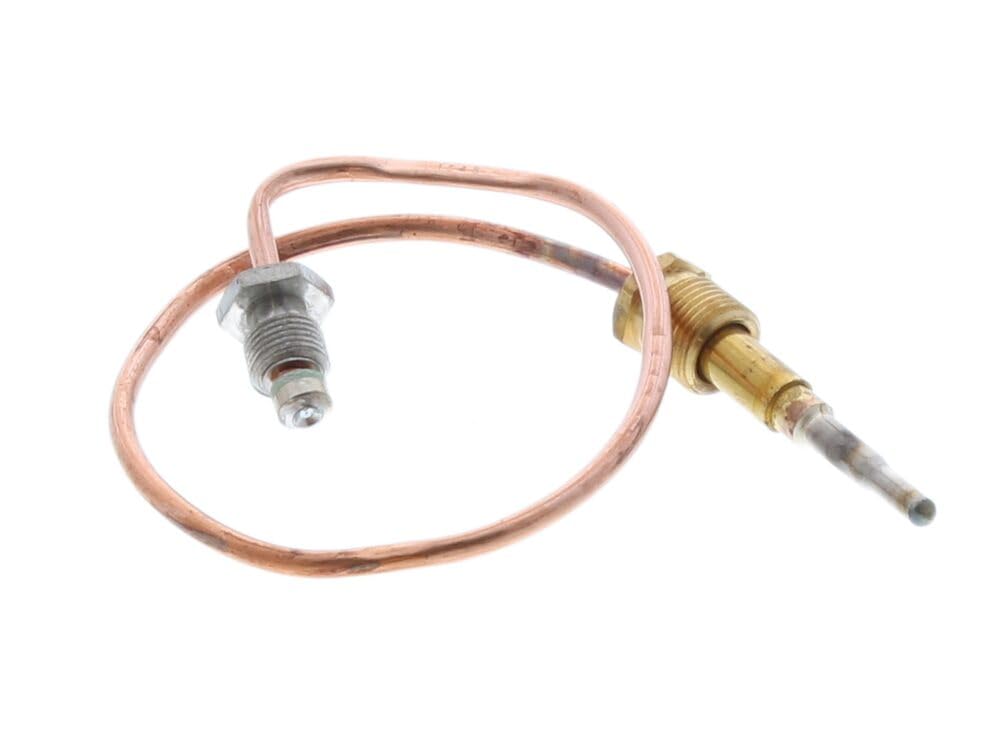

Baxi Thermocouple Solo 2 232159BAX
Baxi thermocouple 232159BAX for Solo 2 30, 40, 50 and 60 RS boilers, brass and copper construction, 60 cm lead length.
At a glance
- Part type: Thermocouple
- Also known as 1112420
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£18.00
£15.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 232159BAX is a thermocouple for the Baxi Solo 2 RS range of gas boilers. It sits in the pilot flame path and generates a small millivolt signal that holds the gas valve open while the pilot is lit, shutting the gas supply down if the flame is lost. The assembly is supplied as a single unit with a 60 cm capillary lead, ready to fit to the pilot burner and gas valve.
Signs this part needs replacing
- The pilot flame lights but goes out as soon as the gas control knob is released.
- The boiler locks out repeatedly during or shortly after ignition.
- The pilot will not hold at all, or holds only intermittently between cycles.
- The thermocouple tip is visibly burnt, pitted or blackened, or the lead is kinked or damaged.
- The boiler shuts down unexpectedly while running, with the pilot extinguished.
Before you order
- Check the appliance GC number against the list above before ordering; the Solo 2 RS models use different ratings but share this thermocouple.
- Confirm the part number on the existing thermocouple or in the boiler's installation and service documentation.
- Earlier and alternative numbers for this item are 9464771 and 1112420.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Thermocouple |
|---|---|
| Material | Brass, Copper |
Compliance
| Manufacturer part number (MPN) | 232159BAX |
|---|---|
| GC number | 379-302 |
| Barcode / EAN | 5039177593461 |
| Commodity code | 9025 19 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 9464771, 1112420 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI SOLO 2 30 RS | 41-077-76 | 41-077-76 | — | — |
| BAXI SOLO 2 40 RS | 41-077-77 | 41-077-77 | — | — |
| BAXI SOLO 2 50 RS | 41-077-78 | 41-077-78 | — | — |
| BAXI SOLO 2 60 RS | 41-077-79 | 41-077-79 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
No technical questions yet for this part.
