Baxi Back Insulation Combustion Box 231176

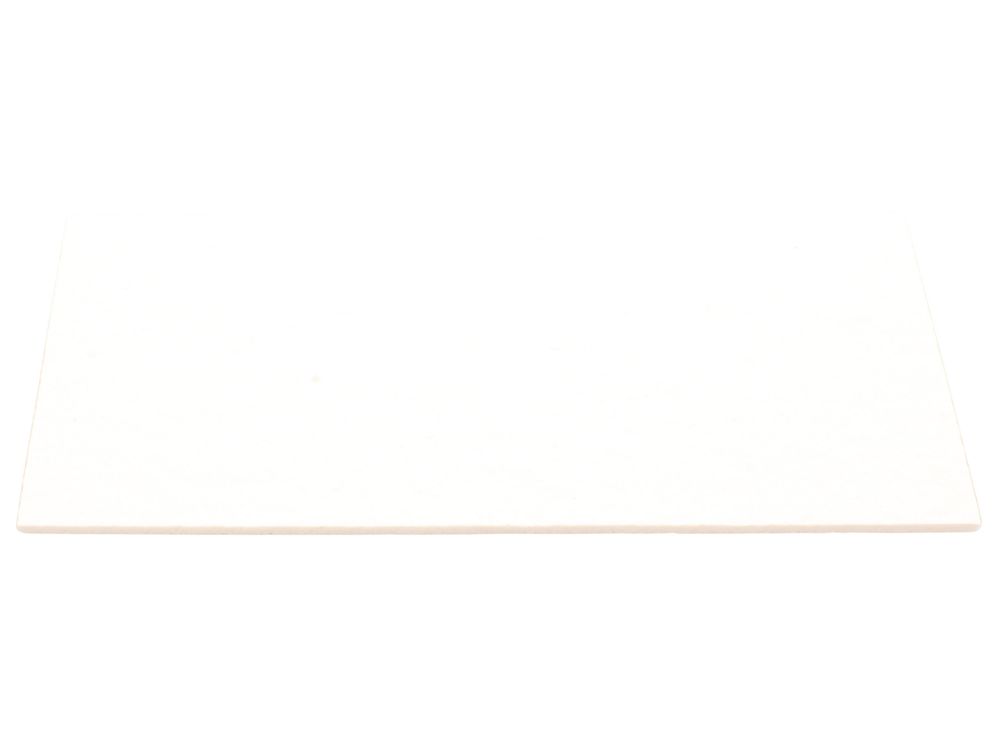

Baxi back insulation panel for the combustion box, fitted to Bermuda 45/3, 57/3, 57/4 and Bermuda Inset fire models.
At a glance
- Part type: back insulation, combustion box
- Also known as 1112230
£17.04
£14.20 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This is the back insulation panel for the combustion box, manufactured by Baxi and supplied under part number 231176. It sits at the rear of the combustion box on Baxi Bermuda back boiler and inset fire appliances, providing thermal insulation between the combustion chamber and the surrounding casing. The panel forms part of the burner assembly group and is listed within Baxi fire spares.
Signs this part needs replacing
- The insulation panel is crumbling, flaking or shedding material
- Visible scorching, charring or heavy discolouration across the panel face
- The panel has cracked, split or broken away from its mounting position
- Insulation material has become brittle and no longer holds its shape
- Debris from the panel is collecting inside the combustion box
Before you order
- Confirm your appliance model against the fit list above before ordering
- Check the existing panel's condition and mounting arrangement on the appliance
- Verify the part number 231176 against the manufacturer's parts list for your model
- Confirm whether any surrounding seals or fixings also require attention during the repair
Compliance
| GC number | 193-117 |
|---|---|
| Barcode / EAN | 5039177591924 |
| Alternative numbers | 1112230 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BERMUDA 45/3 MANUAL | 44-077-61 | 44-077-61 | — | — |
| BAXI BERMUDA 57/3 ELECTRONIC | 44-077-62 | 44-077-62 | — | — |
| BAXI BERMUDA 57/3 MANUAL | 44-077-63 | 44-077-63 | — | — |
| BAXI BERMUDA 57/4 ELECTRONIC | 44-077-74 | 44-077-74 | — | — |
| BAXI BERMUDA 57/4 MANUAL | 44-077-72 | 44-077-72 | — | — |
| BAXI BERMUDA INSET 2 50/4E | 44-075-03 | 44-075-03 | — | — |
| BAXI BERMUDA INSET 2 50/4M | 44-075-01 | 44-075-01 | — | — |
| BAXI BERMUDA INSET 3 50/5 | 44-075-07 | 44-075-07 | — | — |
| BAXI BERMUDA INSET 3 50/6 | 44-075-08 | 44-075-08 | — | — |
| BAXI BERMUDA INSET 50/3 | 44-077-59 | 44-077-59 | — | — |
