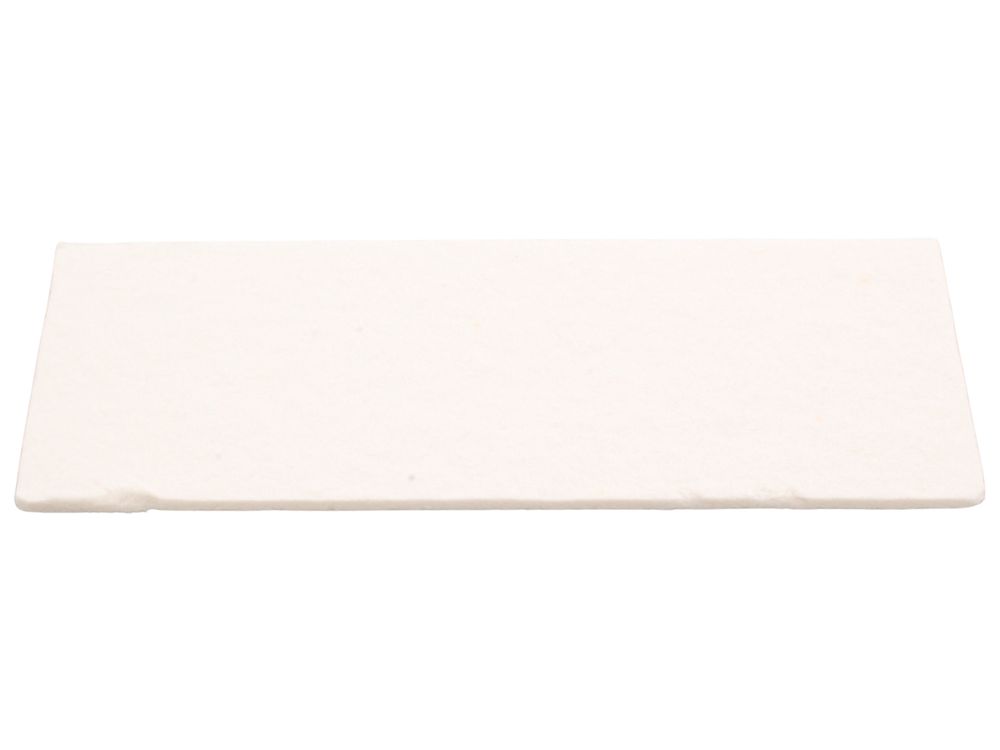

Baxi Side Insulation Combustion Box 231175BAX
Side insulation panel for the combustion box on Baxi Bermuda 45/3, 45/4, 57/3 and 57/4 boilers.
At a glance
- Part type: side insulation for the combustion box
- Also known as 1112228
£17.04
£14.20 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
This is a side insulation panel for the combustion box, manufactured by Baxi and supplied under part number 231175BAX. It lines the side of the combustion chamber on Baxi Bermuda back boiler units, protecting the surrounding casing and metalwork from sustained heat. The panel forms part of the boiler's internal thermal insulation and is listed within the burner section of the Baxi spares range.
Signs this part needs replacing
- The insulation material is crumbling, flaking or breaking away from the panel
- Visible scorching, charring or discolouration of the insulation surface
- Debris from the insulation found inside the combustion box or around the burner
- Gaps or missing sections exposing the surrounding casing to direct heat
- Heat damage or corrosion on adjacent metalwork where the panel sits
Before you order
- Confirm your appliance model and GC number against the fit list above
- Check whether the failed panel is the left or right side, as this part is a single side panel
- Inspect the remaining insulation panels in the combustion box for similar deterioration
- Compare the part number on the existing panel with 231175BAX before ordering
Compliance
| GC number | 193-144 |
|---|---|
| Barcode / EAN | 5039177591917 |
| Alternative numbers | 1112228 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI BERMUDA 45/3 ELECTRONIC | 44-077-60 | 44-077-60 | — | — |
| BAXI BERMUDA 45/3 MANUAL | 44-077-61 | 44-077-61 | — | — |
| BAXI BERMUDA 45/4 ELECTRONIC | 44-077-73 | 44-077-73 | — | — |
| BAXI BERMUDA 45/4 MANUAL | 44-077-71 | 44-077-71 | — | — |
| BAXI BERMUDA 57/3 ELECTRONIC | 44-077-62 | 44-077-62 | — | — |
| BAXI BERMUDA 57/3 MANUAL | 44-077-63 | 44-077-63 | — | — |
| BAXI BERMUDA 57/4 ELECTRONIC | 44-077-74 | 44-077-74 | — | — |
| BAXI BERMUDA 57/4 MANUAL | 44-077-72 | 44-077-72 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BAXI appliance manual — BERMUDA 45/3 ELECTRONIC (GC 44-077-60), BERMUDA 45/3 MANUAL (GC 44-077-61), BERMUDA 57/3 ELECTRONIC (GC 44-077-62), BERMUDA 57/3 MANUAL (GC 44-077-63)
manualmanualBAXI appliance manual — BERMUDA 45/4 ELECTRONIC (GC 44-077-73), BERMUDA 45/4 MANUAL (GC 44-077-71), BERMUDA 57/4 ELECTRONIC (GC 44-077-74), BERMUDA 57/4 MANUAL (GC 44-077-72)
manualNo technical questions yet for this part.
