Baxi

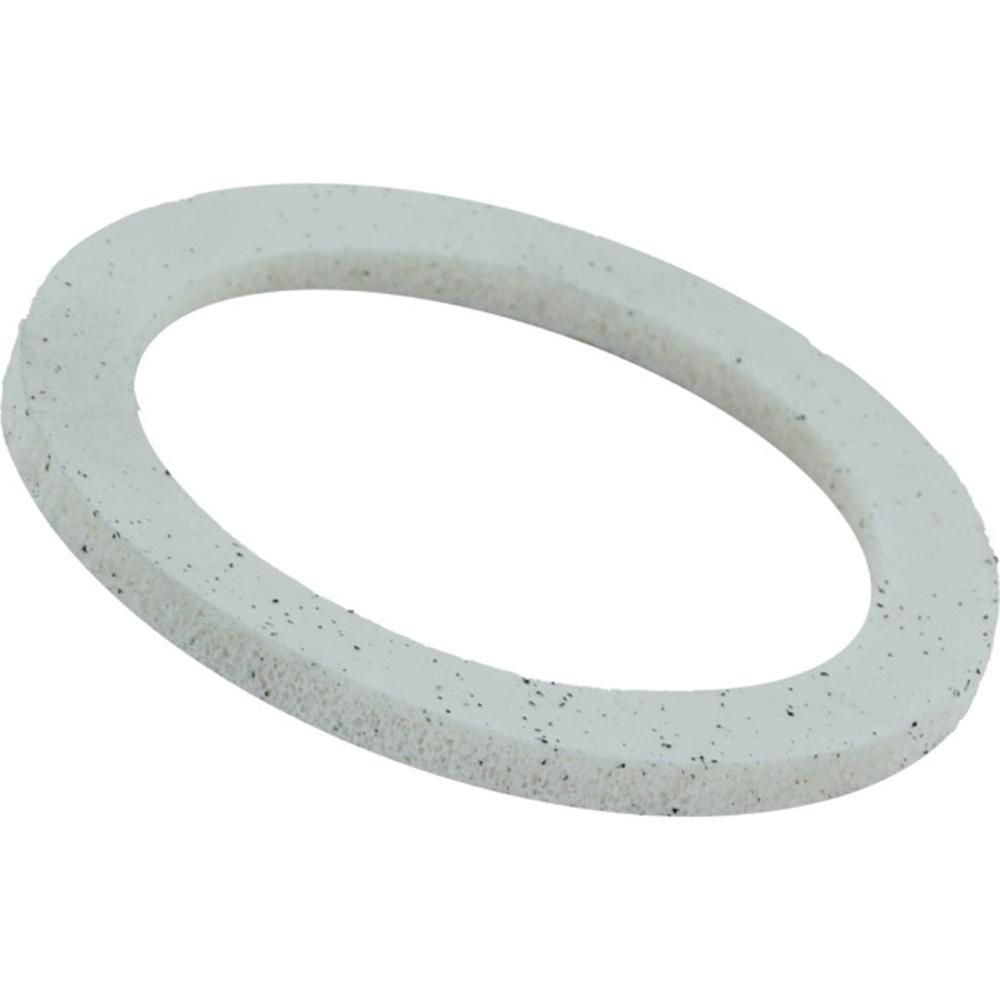

Baxi Fan to Turret Seal PF Mk 2 230955
Baxi 230955 fan to turret seal for Solo 2 PF Mk 2 appliances, sealing the joint between the fan outlet and turret to keep flue products contained.
At a glance
- Part type: Gaskets, seals and washers
- Also known as 1112146, N6174
£21.90
£18.25 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 230955 is a fan to turret seal fitted to Baxi Solo 2 PF Mk 2 appliances. It sits at the joint between the fan outlet and the turret, forming an airtight barrier that keeps flue products within the intended combustion path. The seal is a service item, so it is replaced whenever the fan or turret is disturbed or when the original material has degraded.
Signs this part needs replacing
- Visible cracking, hardening or flattening of the seal material
- Soot staining or heat discolouration around the fan and turret joint
- Flue gas readings drifting outside the expected range during combustion analysis
- Whistling, popping or a draught felt around the fan housing
- Seal breaking up or sticking to the mating faces when the fan is removed
Before you order
- Check the appliance GC number against the compatibility list, as this seal is listed for Solo 2 PF Mk 2 variants.
- Confirm the number on the existing seal or in the appliance parts list matches 230955.
- Inspect the other seals and gaskets in the fan and flue path at the same time, since they are often disturbed during the same repair.
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 230955 |
|---|---|
| GC number | 364-921 |
| Barcode / EAN | 5039177591405 |
| Commodity code | 4016 93 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1112146, N6174 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI SOLO 2 30 PF | 41-077-71 | 41-077-71 | — | — |
| BAXI SOLO 2 40 PF | 41-077-72 | 41-077-72 | — | — |
| BAXI SOLO 2 50 PF | 41-077-73 | 41-077-73 | — | — |
| BAXI SOLO 2 60 PF | 41-077-74 | 41-077-74 | — | — |
| BAXI SOLO 2 70 PF | 41-077-75 | 41-077-75 | — | — |
| BAXI SOLO 2 80 PF | 41-075-01 | 41-075-01 | — | — |
| BAXI SOLO 3 30 PF | 41-075-04 | 41-075-04 | — | — |
| BAXI SOLO 3 30 PF SYSTEM | 41-075-12 | 41-075-12 | — | — |
| BAXI SOLO 3 30 PFL | 41-075-20 | 41-075-20 | — | — |
| BAXI SOLO 3 30 PFL SYSTEM | 41-075-25 | 41-075-25 | — | — |
Showing 10 of 30 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BAXI appliance manual — SOLO 2 30 PF (GC 41-077-71), SOLO 2 40 PF (GC 41-077-72), SOLO 2 50 PF (GC 41-077-73), SOLO 2 60 PF (GC 41-077-74), SOLO 2 70 PF (GC 41-077-75), SOLO 2 80 PF (GC 41-075-01)
manualmanualBAXI appliance manual — SOLO 3 30 PF (GC 41-075-04), SOLO 3 40 PF (GC 41-075-05), SOLO 3 50 PF (GC 41-075-06), SOLO 3 60 PF (GC 41-075-07), SOLO 3 70 PF (GC 41-075-08), SOLO 3 80 PF (GC 41-075-09)
manualmanualBAXI appliance manual — SOLO 3 30 PF SYSTEM (GC 41-075-12), SOLO 3 40 PF SYSTEM (GC 41-075-13), SOLO 3 50 PF SYSTEM (GC 41-075-14), SOLO 3 60 PF SYSTEM (GC 41-075-15), SOLO 3 70 PF SYSTEM (GC 41-075-16), SOLO 3 80 PF SYSTEM (GC 41-075-17)
manualmanualBAXI appliance manual — SOLO 3 30 PFL (GC 41-075-20), SOLO 3 40 PFL (GC 41-075-21), SOLO 3 50 PFL (GC 41-075-22), SOLO 3 60 PFL (GC 41-075-23), SOLO 3 70 PFL (GC 41-075-24), SOLO 3 80 PFL (GC 41-075-30)
manualmanualBAXI appliance manual — SOLO 3 30 PFL SYSTEM (GC 41-075-25), SOLO 3 40 PFL SYSTEM (GC 41-075-26), SOLO 3 50 PFL SYSTEM (GC 41-075-27), SOLO 3 60 PFL SYSTEM (GC 41-075-28), SOLO 3 70 PFL SYSTEM (GC 41-075-29), SOLO 3 80 PFL SYSTEM (GC 41-075-31)
manualNo technical questions yet for this part.
