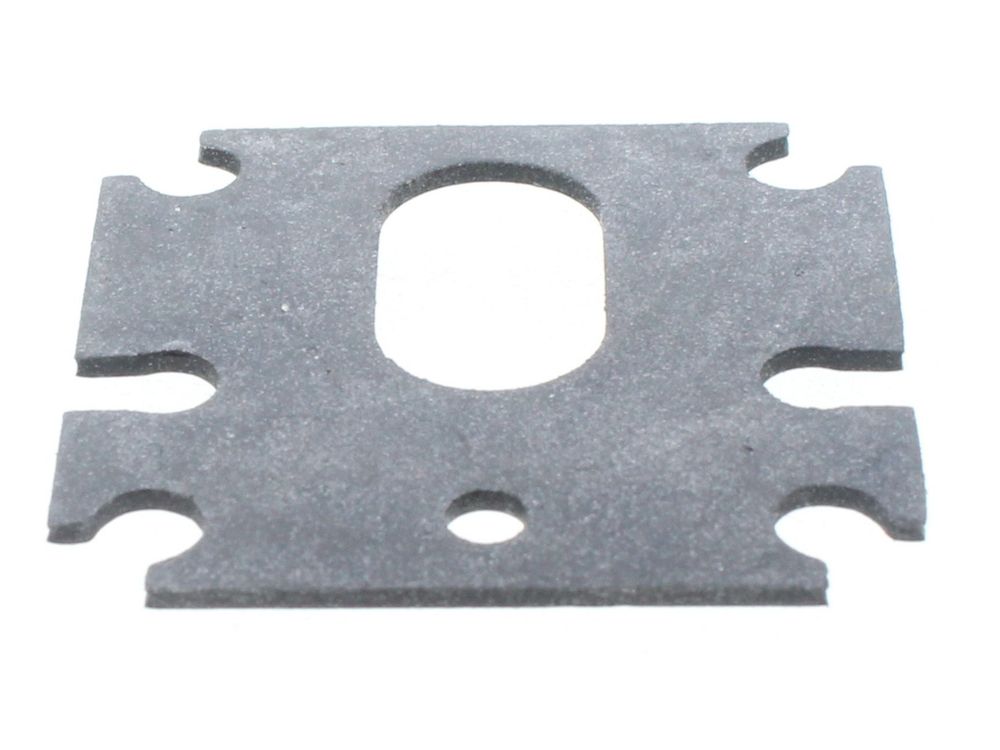

Baxi Gasket Manifold to Gas Valve 230684
Baxi 230684 manifold-to-gas-valve gasket for Solo 2 and Solo 3 PF and PFL gas boilers.
At a glance
- Part type: gasket, manifold to gas valve
- Appliance family: Baxi Solo 2 and Solo 3 PF/PFL gas boilers
- Also known as 1112056
- Gas-carrying joints must be reassembled and tested by a competent Gas Safe registered engineer
£4.51
£3.76 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 230684 is a manifold-to-gas-valve gasket for Baxi gas boilers. It seals the joint between the gas valve and the manifold, preventing gas leakage at that connection. It is used across the Baxi Solo 2 and Solo 3 PF and PFL ranges.
Signs this part needs replacing
- A gas smell or detectable leak at the manifold-to-gas-valve joint
- Visible deterioration, flattening or cracking of the gasket
- The joint has been disturbed during gas valve or manifold work
- Soot staining or discolouration around the joint face
Before you order
- Confirm your appliance model against the fit list above
- Check the part number 230684 matches the one on the existing gasket or the manufacturer's parts list
- Inspect the manifold and gas valve faces for damage before refitting
- Gas-carrying joints must be reassembled and tested by a competent Gas Safe registered engineer
Compliance
| GC number | E01-836 |
|---|---|
| Barcode / EAN | 5039177590972 |
| Alternative numbers | 1112056 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI SOLO 2 30 PF | 41-077-71 | 41-077-71 | — | — |
| BAXI SOLO 2 40 PF | 41-077-72 | 41-077-72 | — | — |
| BAXI SOLO 2 50 PF | 41-077-73 | 41-077-73 | — | — |
| BAXI SOLO 2 60 PF | 41-077-74 | 41-077-74 | — | — |
| BAXI SOLO 2 70 PF | 41-077-75 | 41-077-75 | — | — |
| BAXI SOLO 2 80 PF | 41-075-01 | 41-075-01 | — | — |
| BAXI SOLO 3 30 PF | 41-075-04 | 41-075-04 | — | — |
| BAXI SOLO 3 30 PFL | 41-075-20 | 41-075-20 | — | — |
| BAXI SOLO 3 40 PF | 41-075-05 | 41-075-05 | — | — |
| BAXI SOLO 3 40 PFL | 41-075-21 | 41-075-21 | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BAXI appliance manual — SOLO 2 30 PF (GC 41-077-71), SOLO 2 40 PF (GC 41-077-72), SOLO 2 50 PF (GC 41-077-73), SOLO 2 60 PF (GC 41-077-74), SOLO 2 70 PF (GC 41-077-75), SOLO 2 80 PF (GC 41-075-01)
manualmanualBAXI appliance manual — SOLO 3 30 PF (GC 41-075-04), SOLO 3 40 PF (GC 41-075-05), SOLO 3 50 PF (GC 41-075-06), SOLO 3 60 PF (GC 41-075-07), SOLO 3 70 PF (GC 41-075-08), SOLO 3 80 PF (GC 41-075-09)
manualmanualBAXI appliance manual — SOLO 3 30 PFL (GC 41-075-20), SOLO 3 40 PFL (GC 41-075-21), SOLO 3 50 PFL (GC 41-075-22), SOLO 3 60 PFL (GC 41-075-23), SOLO 3 70 PFL (GC 41-075-24), SOLO 3 80 PFL (GC 41-075-30)
manualmanualBAXI appliance manual — SOLO 3 60 PFL SYSTEM (GC 41-075-28), SOLO 3 70 PFL SYSTEM (GC 41-075-29), SOLO 3 80 PFL SYSTEM (GC 41-075-31)
