Baxi

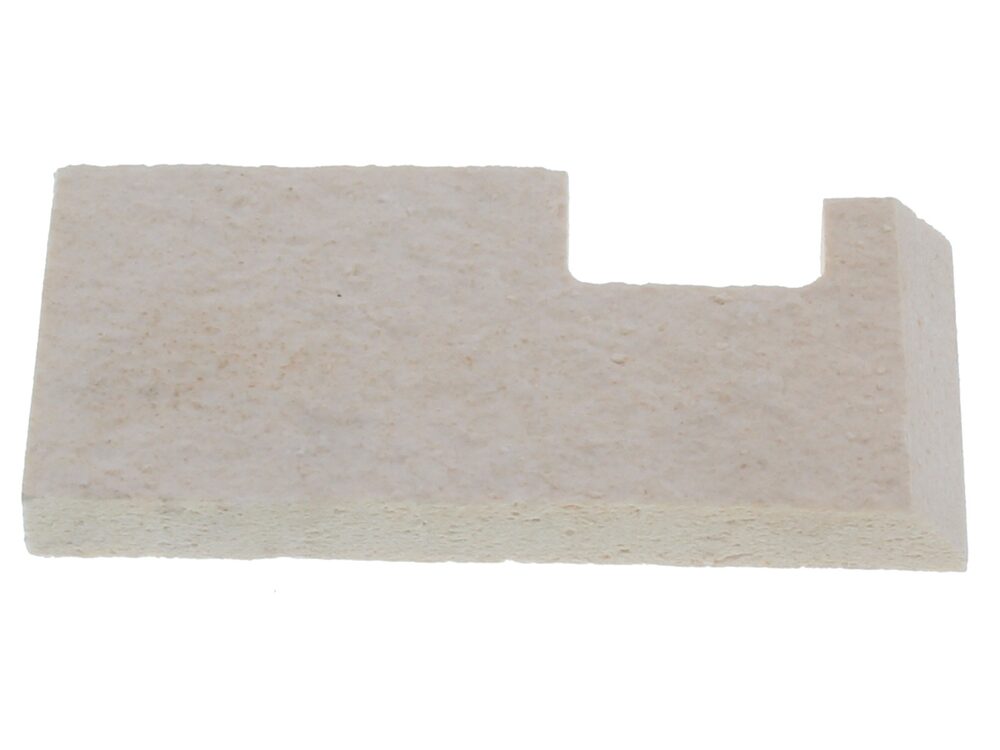

Baxi Right Hand Side Insulation 230653
Right-hand side insulation panel for the combustion box on Baxi Solo 2 and Solo 3 PF and PFL gas boilers, part number 230653.
At a glance
- Also known as 1112032
£25.55
£21.29 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Baxi 230653 is a right-hand side insulation panel for the combustion box. It is fitted to Baxi Solo 2 and Solo 3 PF and PFL gas boilers, where it lines the combustion chamber to retain heat and protect surrounding components. The panel is specific to the right-hand side of the combustion box.
Signs this part needs replacing
- Visible cracking, crumbling or flaking of the insulation surface
- Discolouration or scorching beyond normal heat marking
- Insulation breaking away from the combustion box wall
- Deterioration found during a service or combustion analysis
- Soot or debris trapped behind a damaged panel
Before you order
- Confirm the boiler model and GC number against the fit list
- Check whether the right-hand or left-hand panel is required
- Inspect both sides of the combustion box before ordering
- Verify the part number 230653 against the manufacturer's parts list
Compliance
| GC number | 364-889 |
|---|---|
| Barcode / EAN | 5039177590842 |
| Alternative numbers | 1112032 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| BAXI SOLO 2 30 PF | 41-077-71 | 41-077-71 | — | — |
| BAXI SOLO 2 40 PF | 41-077-72 | 41-077-72 | — | — |
| BAXI SOLO 2 50 PF | 41-077-73 | 41-077-73 | — | — |
| BAXI SOLO 2 60 PF | 41-077-74 | 41-077-74 | — | — |
| BAXI SOLO 2 70 PF | 41-077-75 | 41-077-75 | — | — |
| BAXI SOLO 2 80 PF | 41-075-01 | 41-075-01 | — | — |
| BAXI SOLO 3 30 PF | 41-075-04 | 41-075-04 | — | — |
| BAXI SOLO 3 30 PF SYSTEM | 41-075-12 | 41-075-12 | — | — |
| BAXI SOLO 3 30 PFL | 41-075-20 | 41-075-20 | — | — |
| BAXI SOLO 3 30 PFL SYSTEM | 41-075-25 | 41-075-25 | — | — |
Showing 10 of 30 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
BAXI appliance manual — SOLO 2 30 PF (GC 41-077-71), SOLO 2 40 PF (GC 41-077-72), SOLO 2 50 PF (GC 41-077-73), SOLO 2 60 PF (GC 41-077-74), SOLO 2 70 PF (GC 41-077-75), SOLO 2 80 PF (GC 41-075-01)
manualmanualBAXI appliance manual — SOLO 3 30 PF (GC 41-075-04), SOLO 3 40 PF (GC 41-075-05), SOLO 3 50 PF (GC 41-075-06), SOLO 3 60 PF (GC 41-075-07), SOLO 3 70 PF (GC 41-075-08), SOLO 3 80 PF (GC 41-075-09)
manualmanualBAXI appliance manual — SOLO 3 30 PF SYSTEM (GC 41-075-12), SOLO 3 40 PF SYSTEM (GC 41-075-13), SOLO 3 50 PF SYSTEM (GC 41-075-14), SOLO 3 60 PF SYSTEM (GC 41-075-15), SOLO 3 70 PF SYSTEM (GC 41-075-16), SOLO 3 80 PF SYSTEM (GC 41-075-17)
manualmanualBAXI appliance manual — SOLO 3 30 PFL (GC 41-075-20), SOLO 3 40 PFL (GC 41-075-21), SOLO 3 50 PFL (GC 41-075-22), SOLO 3 60 PFL (GC 41-075-23), SOLO 3 70 PFL (GC 41-075-24), SOLO 3 80 PFL (GC 41-075-30)
manualmanualBAXI appliance manual — SOLO 3 30 PFL SYSTEM (GC 41-075-25), SOLO 3 40 PFL SYSTEM (GC 41-075-26), SOLO 3 50 PFL SYSTEM (GC 41-075-27), SOLO 3 60 PFL SYSTEM (GC 41-075-28), SOLO 3 70 PFL SYSTEM (GC 41-075-29), SOLO 3 80 PFL SYSTEM (GC 41-075-31)
