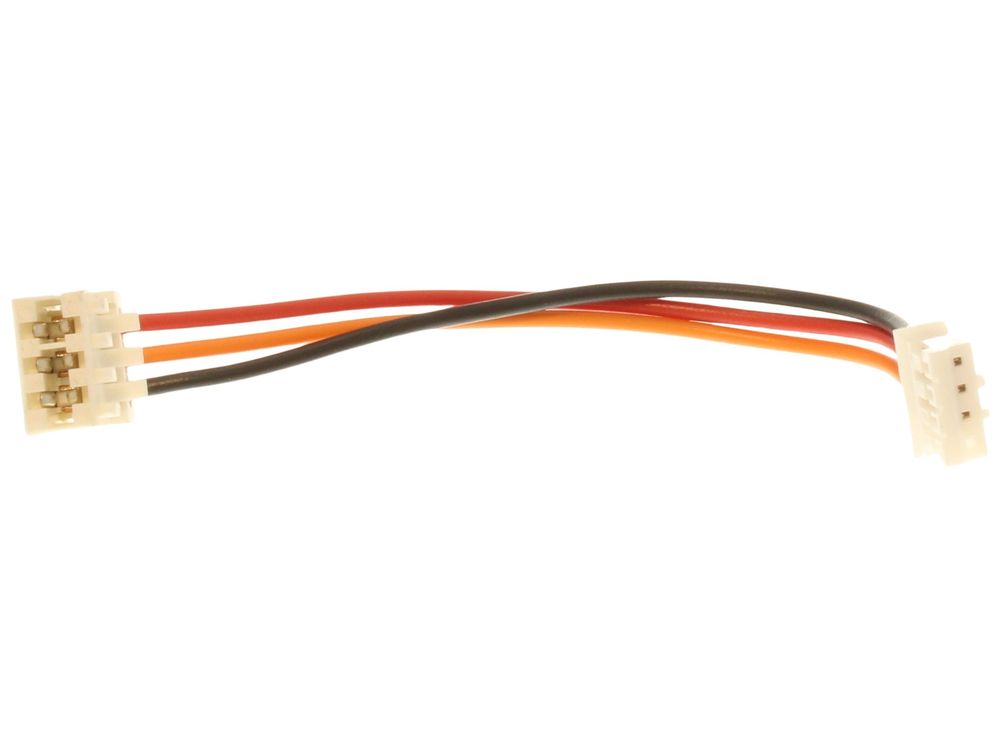

Vokera CN8 - J1 Display Wiring Harness 20011449
Vokera CN8 - J1 display wiring harness, part number 20011449, for Sabre HE PLUS, Unica and Verve System boilers.
At a glance
- Also known as 1533739
£5.54
£4.62 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The CN8 - J1 display wiring harness is a Vokera wiring component, supplied under part number 20011449. It connects the display assembly to the boiler's control circuit on the appliance families listed below. It is a gas boiler spare held under the wiring category.
Signs this part needs replacing
- No display or intermittent display on the boiler control panel
- Fault codes or lockouts traced to a broken display connection
- Visible damage to the harness, such as chafed, burnt or brittle insulation
- Loose or corroded terminals at the CN8 or J1 plug ends
- Display cutting in and out when the harness or panel is moved
Before you order
- Confirm the boiler model and version against the fit list above
- Check the existing harness part number and connector markings before removal
- Inspect the CN8 and J1 plugs and the display board for damage that may also need attention
- Isolate the appliance from the electrical supply before fitting
Compliance
| Alternative numbers | 1533739 |
|---|
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VOKERA SABRE 25 HE PLUS - 2011 VERSION | 47-364-08 | 47-364-08 | — | — |
| VOKERA SABRE 29 HE PLUS - 2011 VERSION | 47-364-09 | 47-364-09 | — | — |
| VOKERA UNICA i28 | 47-364-14 | 47-364-14 | — | — |
| VOKERA UNICA i28 ERP (BOILER CODE 20097273) | 47-364-22 | 47-364-22 | — | — |
| VOKERA UNICA i32 | 47-364-15 | 47-364-15 | — | — |
| VOKERA UNICA i32 ERP (BOILER CODE 20097274) | 47-364-23 | 47-364-23 | — | — |
| VOKERA UNICA i36 | 47-364-16 | 47-364-16 | — | — |
| VOKERA UNICA i36 ERP (BOILER CODE 20097275) | 47-364-24 | 47-364-24 | — | — |
| VOKERA VERVE SYSTEM 47KW | 41-094-75 | 41-094-75 | — | — |
| VOKERA VOKERA SABRE 25 HE PLUS (2011) | — | — | — |
Showing 10 of 18 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VOKERA appliance manual — SABRE 25 HE PLUS - 2011 VERSION (GC 47-364-08), SABRE 29 HE PLUS - 2011 VERSION (GC 47-364-09)
manualmanualVOKERA appliance manual — UNICA i28 (GC 47-364-14), UNICA i28 ERP (BOILER CODE 20097273) (GC 47-364-22), UNICA i32 (GC 47-364-15), UNICA i32 ERP (BOILER CODE 20097274) (GC 47-364-23), UNICA i36 (GC 47-364-16), UNICA i36 ERP (BOILER CODE 20097275) (GC 47-364-24)
manualmanualVOKERA appliance manual — VERVE SYSTEM 47KW (GC 41-094-75)
manualNo technical questions yet for this part.
