Glow-worm Low Volt Wiring Harness Option Board 2000801825
Low voltage wiring harness for the option board on Glow-worm GW HXI and BG330 boilers.
At a glance
- Also known as 1331341
£14.59
£12.16 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

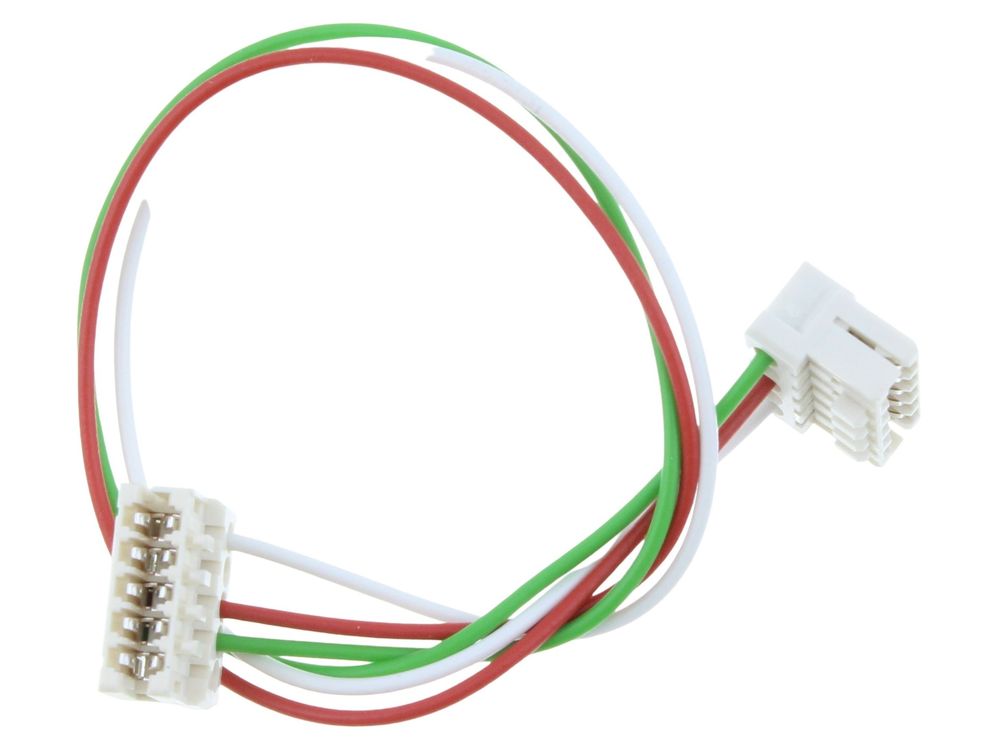

The Low Volt Wiring Harness is a Glow-worm wiring component that connects the option board within the boiler's control assembly. It carries low voltage signals between the option board and the associated controls on GW HXI and BG330 appliances. The part is supplied under Glow-worm part number 2000801825.
Signs this part needs replacing
- Fault codes or lockouts traced to the option board circuit
- Intermittent operation or loss of function on option board controlled features
- Visible damage to the harness, such as chafed, scorched or brittle insulation
- Loose, corroded or discoloured connector terminals at either end of the harness
- Continuity faults on the low voltage circuit when tested
Before you order
- Confirm the boiler model against the fitment list above
- Check the existing harness and connectors for damage before removal
- Verify the fault is on the low voltage option board circuit and not the board itself
- Note the routing and connector positions before disconnecting the old harness
Compliance
| GC number | E85-078 |
|---|---|
| Barcode / EAN | 5037985022401 |
| Alternative numbers | 1331341 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GLOWWORM BRITISH GAS BG330 | 41-047-75 | 41-047-75 | — | — |
| GLOWWORM GW 12HXi | 41-047-73 | 41-047-73 | — | — |
| GLOWWORM GW 15HXi | 41-047-74 | 41-047-74 | — | — |
| GLOWWORM GW 18HXi | 41-047-63 | 41-047-63 | — | — |
| GLOWWORM GW 24HXi | 41-047-69 | 41-047-69 | — | — |
| GLOWWORM GW 30HXi | 41-047-64 | 41-047-64 | — | — |
| GLOWWORM GW 38HXi | 41-047-71 | 41-047-71 | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
GLOWWORM appliance manual — BRITISH GAS BG330 (GC 41-047-75)
manualmanualGLOWWORM appliance manual — GW 12HXi (GC 41-047-73)
manualmanualGLOWWORM appliance manual — GW 15HXi (GC 41-047-74)
manualmanualGLOWWORM appliance manual — GW 18HXi (GC 41-047-63)
manualmanualGLOWWORM appliance manual — GW 24HXi (GC 41-047-69)
manualmanualGLOWWORM appliance manual — GW 30HXi (GC 41-047-64)
manualmanualGLOWWORM appliance manual — GW 38HXi (GC 41-047-71)
manualNo technical questions yet for this part.
