Glow-worm

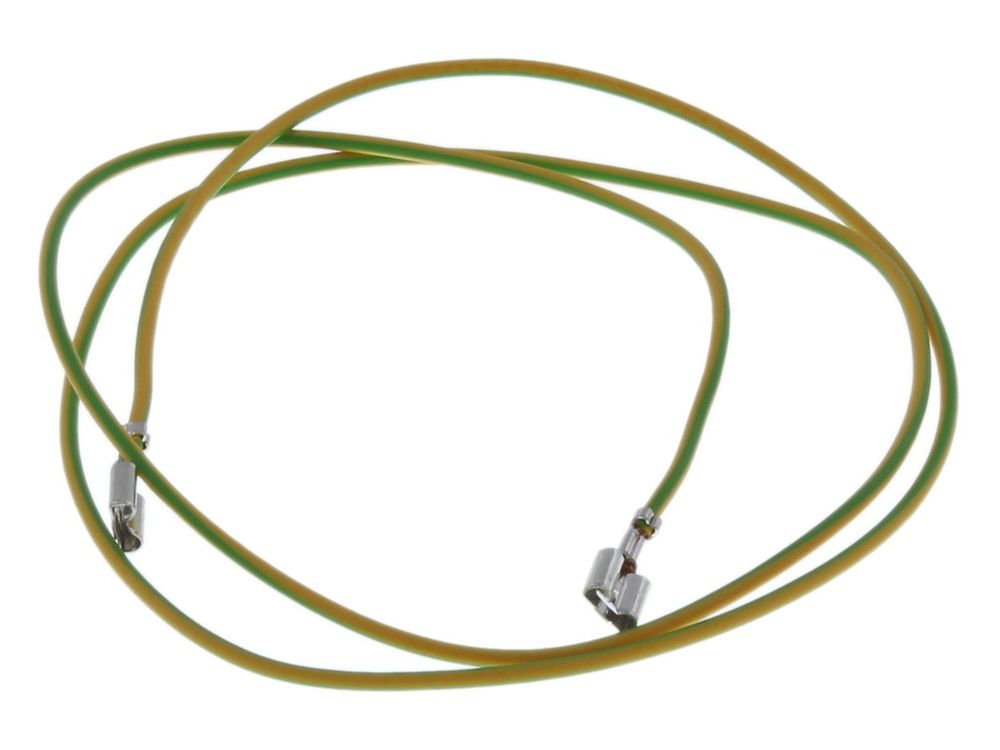

Glow-worm Earth Wire 700mm 2000801810
Glow-worm earth wire, 700mm, part 2000801810, for GW HXI, SXI and CXI series gas boilers.
At a glance
- Also known as 1331311
£9.53
£7.94 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Glow-worm earth wire is a 700mm earthing lead used within the electrical circuit of Glow-worm GW series gas boilers. It provides a bonded earth path between the appliance chassis and the relevant electrical components, maintaining the safety earth required for correct and safe operation. The lead is supplied to length for the models listed below.
Signs this part needs replacing
- Visible fraying, chafing or exposed conductor along the earth lead
- Corrosion or heat discolouration at the ring terminal or crimp
- Loose or poor contact at the earthing point, causing intermittent continuity
- Cracked or perished insulation on the wire
- Earth continuity test reading outside the expected value during a service or safety check
Before you order
- Confirm your boiler model against the fitment list above before ordering
- Check the existing earth lead routing and length to ensure a 700mm lead reaches the intended earthing point
- Inspect the terminal and fixing point for damage or corrosion that may also need attention
- Isolate the appliance electrically before removing or fitting any wiring component
Compliance
| GC number | E85-072 |
|---|---|
| Barcode / EAN | 5037985022272 |
| Alternative numbers | 1331311 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| GLOWWORM BRITISH GAS BG330 | 41-047-75 | 41-047-75 | — | — |
| GLOWWORM GW 12HXi | 41-047-73 | 41-047-73 | — | — |
| GLOWWORM GW 15HXi | 41-047-74 | 41-047-74 | — | — |
| GLOWWORM GW 18HXi | 41-047-63 | 41-047-63 | — | — |
| GLOWWORM GW 18SXi | 41-047-72 | 41-047-72 | — | — |
| GLOWWORM GW 24CXi | 47-047-23 | 47-047-23 | — | — |
| GLOWWORM GW 24HXi | 41-047-69 | 41-047-69 | — | — |
| GLOWWORM GW 30CXi | 47-047-24 | 47-047-24 | — | — |
| GLOWWORM GW 30HXi | 41-047-64 | 41-047-64 | — | — |
| GLOWWORM GW 30SXi | 41-047-62 | 41-047-62 | — | — |
Showing 10 of 12 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
GLOWWORM appliance manual — BRITISH GAS BG330 (GC 41-047-75)
manualmanualGLOWWORM appliance manual — GW 12HXi (GC 41-047-73)
manualmanualGLOWWORM appliance manual — GW 15HXi (GC 41-047-74)
manualmanualGLOWWORM appliance manual — GW 18HXi (GC 41-047-63)
manualmanualGLOWWORM appliance manual — GW 18SXi (GC 41-047-72)
manualmanualGLOWWORM appliance manual — GW 24CXi (GC 47-047-23)
manualmanualGLOWWORM appliance manual — GW 24HXi (GC 41-047-69)
manualmanualGLOWWORM appliance manual — GW 30CXi (GC 47-047-24)
manualmanualGLOWWORM appliance manual — GW 30HXi (GC 41-047-64)
manualmanualGLOWWORM appliance manual — GW 30SXi (GC 41-047-62)
manualmanualGLOWWORM appliance manual — GW 38CXi (GC 47-047-27)
manualmanualGLOWWORM appliance manual — GW 38HXi (GC 41-047-71)
manualNo technical questions yet for this part.
