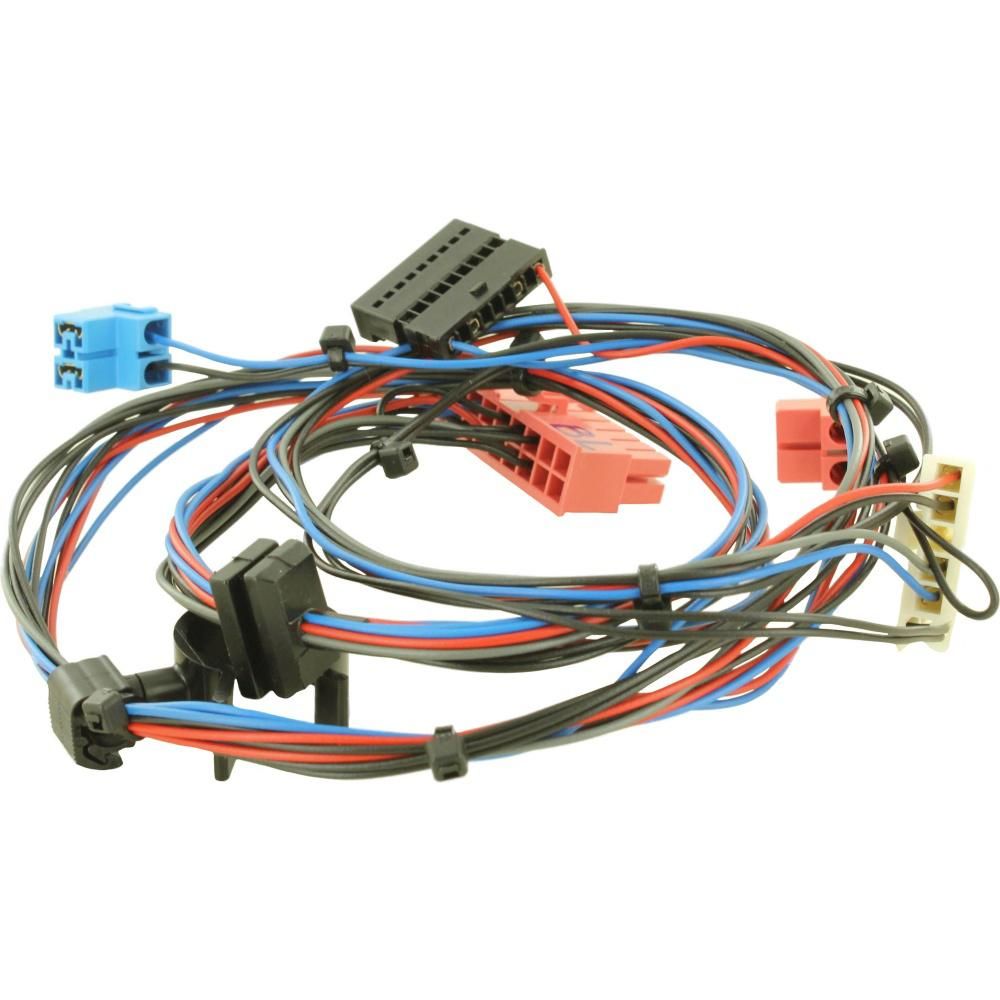

Vaillant Wiring Harness VAILLANT193586
At a glance
- Part type: Cables, Leads & Wiring Harnesses
- Also known as 1376866, VAILLANT193586
£34.12
£28.43 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Vaillant 193586 is a wiring harness supplied by Vaillant as a spare part for their water heating appliances. It is a pre-formed loom of insulated cables and moulded connectors that carries power and control signals between the electrical components inside the unit.
A harness of this type sits behind the appliance casing and links the control board, sensors and other electrical parts. Damage or corrosion at the terminals interrupts those signals, which is why the loom is replaced as a complete assembly rather than repaired in situ.
Signs this part needs replacing
- Intermittent operation, with the appliance cutting in and out without an obvious mechanical cause
- Fault codes relating to sensors, fans or control communication that return after clearing
- Visible damage to the loom: cracked or brittle insulation, chafed cable runs or exposed conductor
- Scorched, discoloured or corroded connector housings and pins
- Loose or pushed-back terminals that will not seat firmly on their mating plug
Before you order
- Confirm the part number on the existing harness or in the appliance wiring diagram matches 193586
- Check the appliance data plate and serial number so the correct variant is identified
- Inspect the mating connectors and any seals or grommets at the same time, as these are often disturbed during removal
- Isolate the electrical supply and follow the manufacturer's wiring diagram when fitting
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 193586 |
|---|---|
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | VAILLANT193586, 1376866 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT VAILLANT ECOTEC PLUS 612 VU 126-3-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 612 VU 126-3-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 615 VU 156-3-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 615 VU 156-3-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 618 VU 186-3-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 618 VU 186-3-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 624 VU 246-3-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 624 VU 246-3-5 R1 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 824 - VUW 246/3-5 | — | — | — | |
| VAILLANT VAILLANT ECOTEC PLUS 824 - VUW 246/3-5 R1 | — | — | — |
Showing 10 of 62 compatible appliances.
