Vaillant Fan Assembly ecomax 824/828 VAILLANT190235
Vaillant fan assembly, part 190235, for ecoMAX 613, 618, 622, 635 and 828 boilers; moves combustion air and flue gases through the heat exchanger.
At a glance
- Part type: Fan assembly
- Appliance family: ecoMAX
- Also known as 1374072, VAILLANT190235
£293.54
£244.62 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

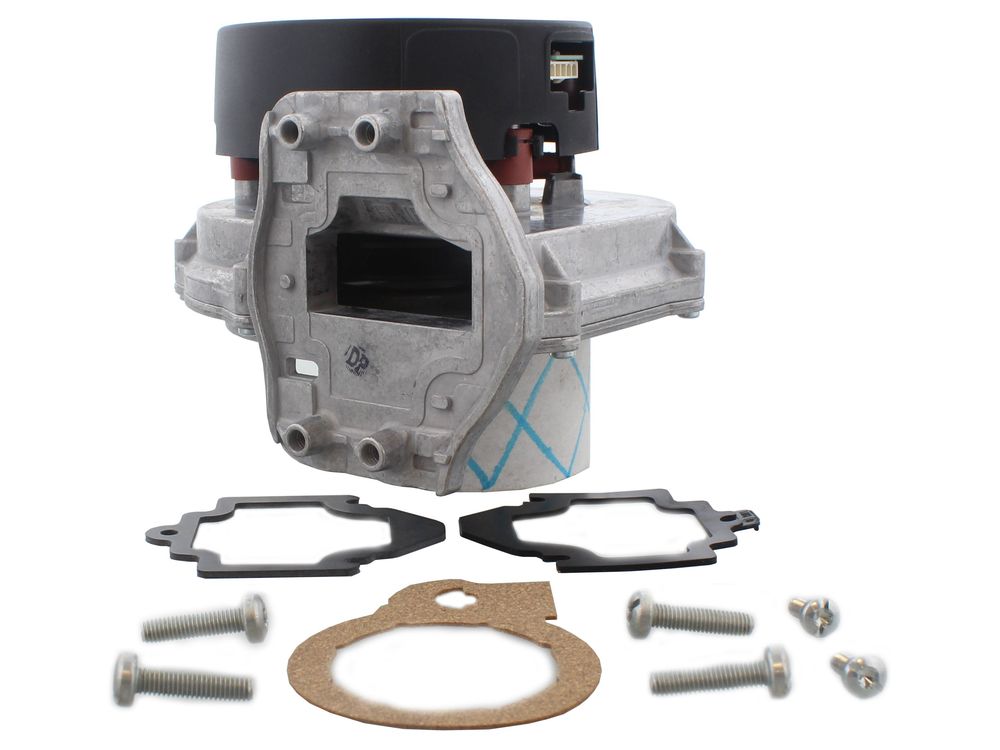

The Vaillant 190235 is a fan assembly for the ecoMAX range of wall-mounted boilers. It draws combustion air into the burner and pushes the flue gases out through the heat exchanger and flue system, so the boiler can maintain a stable, correctly balanced burn. The assembly is supplied as a complete fan unit and is listed under Vaillant part number 190235.
Signs this part needs replacing
- Grinding, whining or rumbling noise from the fan area during or after ignition
- Boiler locks out or fails to ignite, with a fan or air pressure related fault code
- Intermittent shutdowns that clear on reset and return under demand
- Overheat cut-out or poor combustion readings traced to reduced air flow
- Visible damage, stiffness or play in the fan impeller when the casing is opened
Before you order
- Confirm the boiler model and serial number, as the ecoMAX range uses more than one fan variant
- Check the existing fan against part number 190235 before removing it
- Note that the seals and screws are not present in the box, so order these separately if the originals cannot be reused
Mechanical
| Part type | Fan assembly |
|---|---|
| Appliance family | ecoMAX |
Compliance
| Manufacturer part number (MPN) | 190235 |
|---|---|
| Commodity code | 8414 59 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | VAILLANT190235, 1374072 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| VAILLANT ECOmax 613 VU 126 E-C (2000-2001) | 41-044-20 | 41-044-20 | — | — |
| VAILLANT ECOmax 618 VU 196 E-C (2000-2001) | 41-044-21 | 41-044-21 | — | — |
| VAILLANT ECOmax 622 VU 246 E-C (2000-2001) | 41-044-22 | 41-044-22 | — | — |
| VAILLANT ECOmax 824 VUW 246 E-C (1999-2001) | 47-044-07 | 47-044-07 | — | — |
| VAILLANT ECOmax 828 VUW 286 E-C (1999-2001) | 47-044-08 | 47-044-08 | — | — |
| VAILLANT VAILLANT ECOMAX 1E VUW246 EC (47-044-07) | — | — | — | |
| VAILLANT VAILLANT ECOMAX 200 VUW286/2 C (47-044-24) | — | — | — | |
| VAILLANT VAILLANT ECOMAX 2E VUW246/2 EC (47-044-12) | — | — | — | |
| VAILLANT VAILLANT ECOMAX 2E VUW286 EC (47-044-17) | — | — | — | |
| VAILLANT VAILLANT ECOMAX 2E VUW356 C (47-044-27) | — | — | — |
Showing 10 of 40 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
VAILLANT appliance manual — ECOmax 824 VUW 246 E-C (1999-2001) (GC 47-044-07), ECOmax 828 VUW 286 E-C (1999-2001) (GC 47-044-08), VUW 246 E-C (GC 47-044-07), VUW 286 E-C (GC 47-044-08)
manualmanualVAILLANT appliance manual — VU 126/2-C (GC 41-044-27), VU 186/2-C (GC 41-044-28), VU 226/2-C (GC 41-044-29), VU 356-C (GC 41-044-43), VU 356/2-C (GC 41-044-43), VUW 246/2-C (GC 47-044-12), VUW 286/2-C (GC 47-044-17), VUW 356-C (GC 47-044-27), ecoMAX 613/2E VU 126/2 C (2001-2006) (GC 41-044-27), ecoMAX 618/2E VU 186/2 C (2001-2006) (GC 41-044-28), ecoMAX 622/2E VU 226/2 C (2001-2006) (GC 41-044-29), ecoMAX 635 E VU 356-C (2004-2006) (GC 41-044-43), ecoMAX 635 VU 356/2-C (2006-2008) (GC 41-044-43), ecoMAX 824/2 E-C VUW 246/2 E-C (2001-2006) (GC 47-044-12), ecoMAX 828/2E VUW 286/2 C (2001-2006) (GC 47-044-17), ecoMAX 835E VUW 356 C (2002-2006) (GC 47-044-27)
manualmanualVAILLANT appliance manual — VUW 326/4-7 (GC 47-044-37), ecoTEC EXCLUSIVE 832 VUW 326/4-7 (GC 47-044-37)
manualNo technical questions yet for this part.
