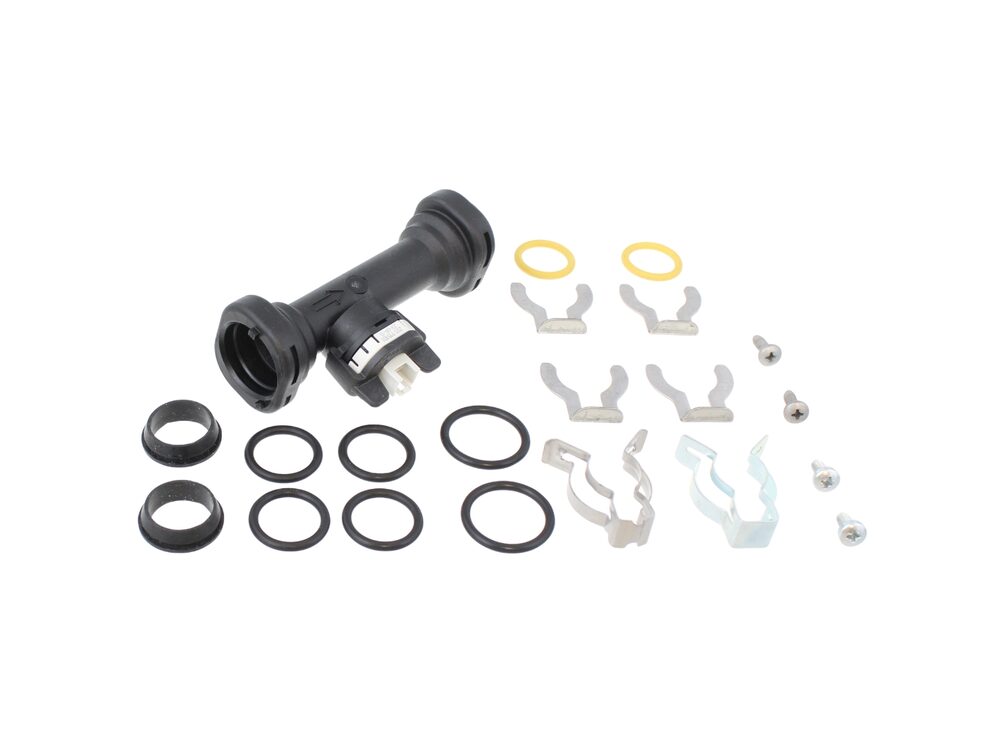

Ideal Transducer Manifold Kit 183775
Transducer manifold kit, part 183775, for Ideal Logic HEAT 2 and Logic MAX HEAT 2 appliances.
At a glance
- Appliance family: Logic HEAT 2, Logic + HEAT 2 and Logic MAX HEAT 2
- Also known as 1180152
£66.65
£55.54 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 183775 Transducer Manifold Kit is a hydraulic sensing component used on Ideal Logic HEAT 2 and Logic MAX HEAT 2 appliances. The manifold carries the transducer that reads system pressure for the boiler's control and safety logic. It is supplied as a kit for servicing or repair of the pressure sensing arrangement.
Signs this part needs replacing
- System pressure displayed or logged inaccurately against a verified gauge reading
- Pressure readings that fluctuate or drift without any change at the filling loop
- Water weeping or staining around the manifold body or its connections
- Boiler locking out or refusing to fire on a pressure-related fault
- Debris or scale build-up obstructing the manifold passage
Before you order
- Confirm your appliance model against the fit list above
- Check the GC number on the appliance data badge matches your model variant
- Verify the part number 183775 against the existing component
- Confirm whether the manifold kit is the correct assembly for the fault found
Compliance
| Barcode / EAN | 5022141837753 |
|---|---|
| Alternative numbers | 1180152 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL LOGIC + HEAT 2 H12 | 41-860-20 | 41-860-20 | — | — |
| IDEAL LOGIC + HEAT 2 H15 | 41-860-21 | 41-860-21 | — | — |
| IDEAL LOGIC + HEAT 2 H18 | 41-860-22 | 41-860-22 | — | — |
| IDEAL LOGIC + HEAT 2 H24 | 41-860-23 | 41-860-23 | — | — |
| IDEAL LOGIC + HEAT 2 H30 | 41-860-24 | 41-860-24 | — | — |
| IDEAL LOGIC HEAT 2 H12 | 41-860-10 | 41-860-10 | — | — |
| IDEAL LOGIC HEAT 2 H12 IE | 41-860-15 | 41-860-15 | — | — |
| IDEAL LOGIC HEAT 2 H15 | 41-860-11 | 41-860-11 | — | — |
| IDEAL LOGIC HEAT 2 H15 IE | 41-860-16 | 41-860-16 | — | — |
| IDEAL LOGIC HEAT 2 H18 | 41-860-12 | 41-860-12 | — | — |
Showing 10 of 25 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — LOGIC HEAT 2 H12 (GC 41-860-10), LOGIC HEAT 2 H15 (GC 41-860-11), LOGIC HEAT 2 H18 (GC 41-860-12), LOGIC HEAT 2 H24 (GC 41-860-13), LOGIC HEAT 2 H30 (GC 41-860-14)
manualmanualIDEAL appliance manual — LOGIC MAX HEAT 2 H12 (GC 41-860-25), LOGIC MAX HEAT 2 H15 (GC 41-860-26), LOGIC MAX HEAT 2 H18 (GC 41-860-27), LOGIC MAX HEAT 2 H24 (GC 41-860-28), LOGIC MAX HEAT 2 H30 (GC 41-860-29)
manualNo technical questions yet for this part.
