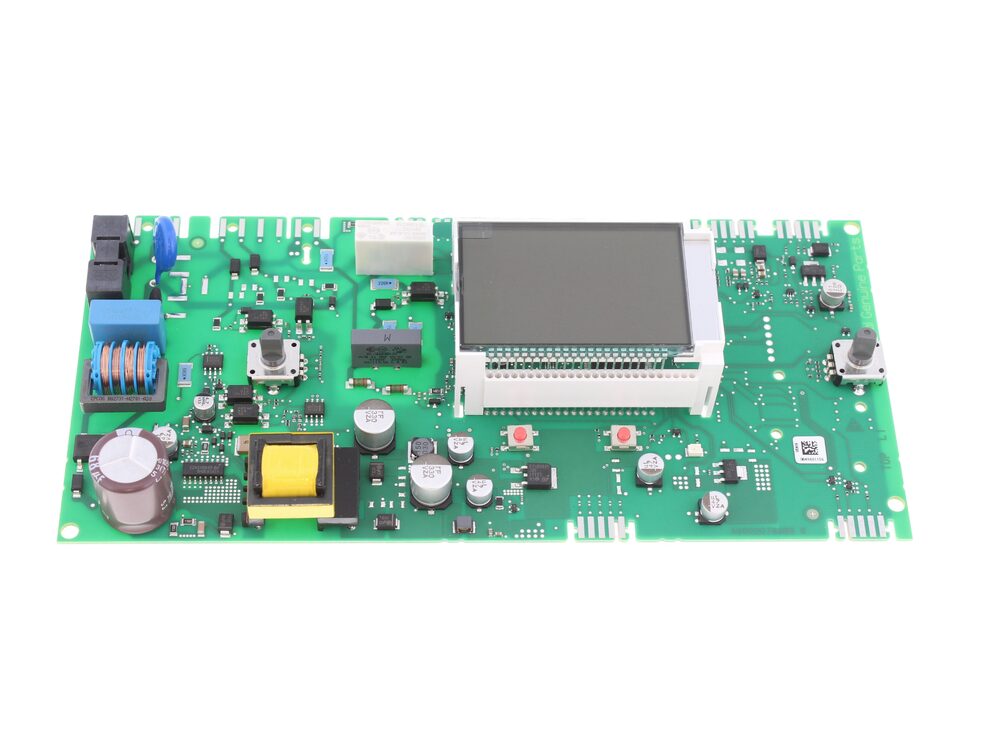

Ideal V4 Logic PCB Std Kit 182321
Ideal V4 Logic standard PCB kit, part number 182321, for Logic 2 combi, heat, system and MAX appliances.
At a glance
- Appliance family: Ideal Logic 2
- Also known as 1180082, N9339-2
£184.36
£153.63 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal V4 Logic PCB Std Kit is the printed circuit board assembly used in the Ideal Logic 2 range of gas appliances. It is the main control board that governs ignition, sequencing, fan and pump operation, and safety interlocks across the boiler. The kit is supplied under Ideal part number 182321.
Signs this part needs replacing
- Boiler fails to fire or will not run through an ignition sequence
- Repeated lockouts or fault codes that clear only temporarily
- No response from fan, pump or diverter when a demand is present
- Blank or unresponsive display or controls
- Intermittent heating and hot water that cannot be traced to another component
Before you order
- Confirm the boiler model and GC number against the fit list above
- Check the existing board revision and connector layout before removal
- Isolate the electrical supply and follow the manufacturer's wiring and setup procedure on fitting
- Verify that a board-only kit is what the fault requires rather than a full control assembly
Compliance
| Barcode / EAN | 5022141823213 |
|---|---|
| Alternative numbers | 1180082, N9339-2 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL LOGIC COMBI 2 C24 | 47-349-93 | 47-349-93 | — | — |
| IDEAL LOGIC COMBI 2 C24 IE | 47-349-96 | 47-349-96 | — | — |
| IDEAL LOGIC COMBI 2 C30 | 47-349-94 | 47-349-94 | — | — |
| IDEAL LOGIC COMBI 2 C30 IE | 47-349-97 | 47-349-97 | — | — |
| IDEAL LOGIC COMBI 2 C35 | 47-349-95 | 47-349-95 | — | — |
| IDEAL LOGIC COMBI 2 C35 IE | 47-349-98 | 47-349-98 | — | — |
| IDEAL LOGIC HEAT 2 H12 | 41-860-10 | 41-860-10 | — | — |
| IDEAL LOGIC HEAT 2 H15 | 41-860-11 | 41-860-11 | — | — |
| IDEAL LOGIC HEAT 2 H18 | 41-860-12 | 41-860-12 | — | — |
| IDEAL LOGIC HEAT 2 H24 | 41-860-13 | 41-860-13 | — | — |
Showing 10 of 24 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — LOGIC COMBI 2 C24 (GC 47-349-93), LOGIC COMBI 2 C30 (GC 47-349-94), LOGIC COMBI 2 C35 (GC 47-349-95)
manualmanualIDEAL appliance manual — LOGIC HEAT 2 H12 (GC 41-860-10), LOGIC HEAT 2 H15 (GC 41-860-11), LOGIC HEAT 2 H18 (GC 41-860-12), LOGIC HEAT 2 H24 (GC 41-860-13), LOGIC HEAT 2 H30 (GC 41-860-14)
manualmanualIDEAL appliance manual — LOGIC MAX COMBI 2 C24 (GC 47-387-03), LOGIC MAX COMBI 2 C30 (GC 47-387-04), LOGIC MAX COMBI 2 C35 (GC 47-387-05)
manualmanualIDEAL appliance manual — LOGIC SYSTEM 2 S15 (GC 41-796-85), LOGIC SYSTEM 2 S18 (GC 41-796-86), LOGIC SYSTEM 2 S24 (GC 41-796-87), LOGIC SYSTEM 2 S30 (GC 41-796-88)
manualNo technical questions yet for this part.
