Ideal Wiring Harness Pelv Logic V4 182318

Ideal

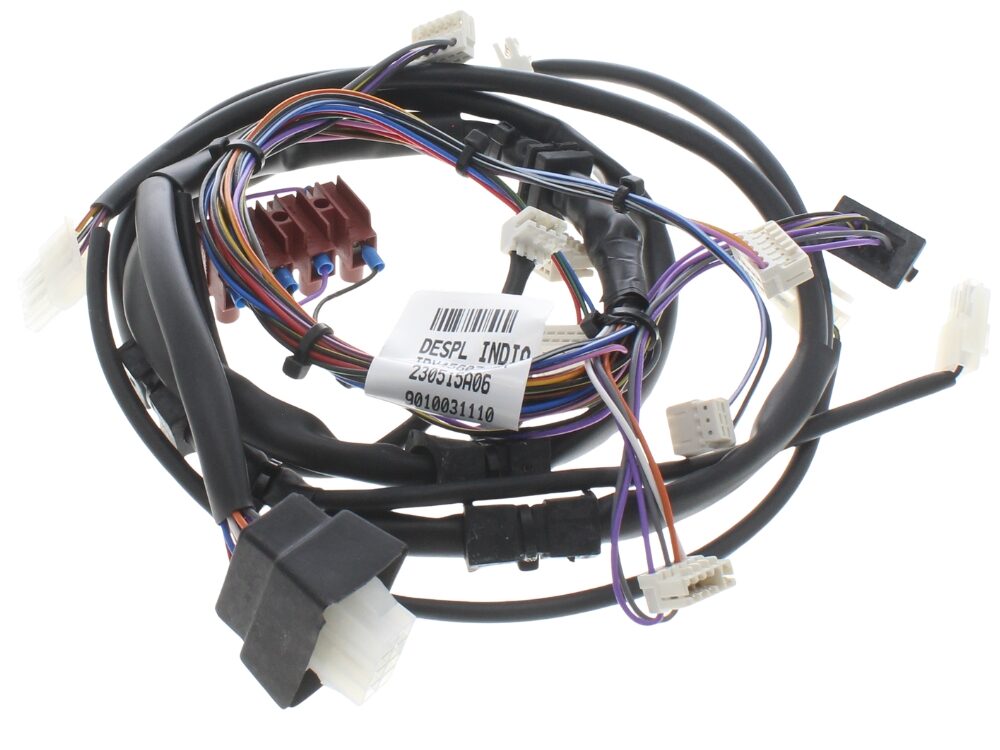

Ideal Wiring Harness Pelv Logic V4 182318

Wiring harness for Ideal Logic Heat 2 boilers, PELV logic V4 configuration.

At a glance

  • Also known as 1180164
Manufacturer part no.
182318
Showing prices

£36.23

£30.19 ex. VAT · VAT at 20%

Available to order · 7 working days
Available to order · 7 working days
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question

Same-day dispatch

Ordered by 4pm Mon–Fri, 10:30am Sat.

30-day returns

Unused, in original packaging.

What it is

The Ideal 182318 is a PELV logic V4 wiring harness used on Ideal Logic Heat 2 appliances. It carries the low-voltage control and logic connections between the boiler's main PCB and the associated components within the appliance. The harness is supplied as a complete assembly with its fitted plugs and terminals.

Signs this part needs replacing

  • Boiler fails to fire or locks out with no obvious fault at the PCB
  • Intermittent faults that clear when the harness or its plugs are disturbed
  • Visible damage to the harness: chafed insulation, scorching, or brittle wiring
  • Loose, corroded or heat-damaged terminals in the harness plugs
  • Fault codes that persist after the associated components have been tested

Before you order

  • Confirm the appliance model against the fit list above
  • Check the existing harness for its version marking, as the logic configuration must match
  • Inspect the harness routing and plug positions before removal so the new one is refitted correctly
  • Isolate the appliance from the electrical supply before any work begins
