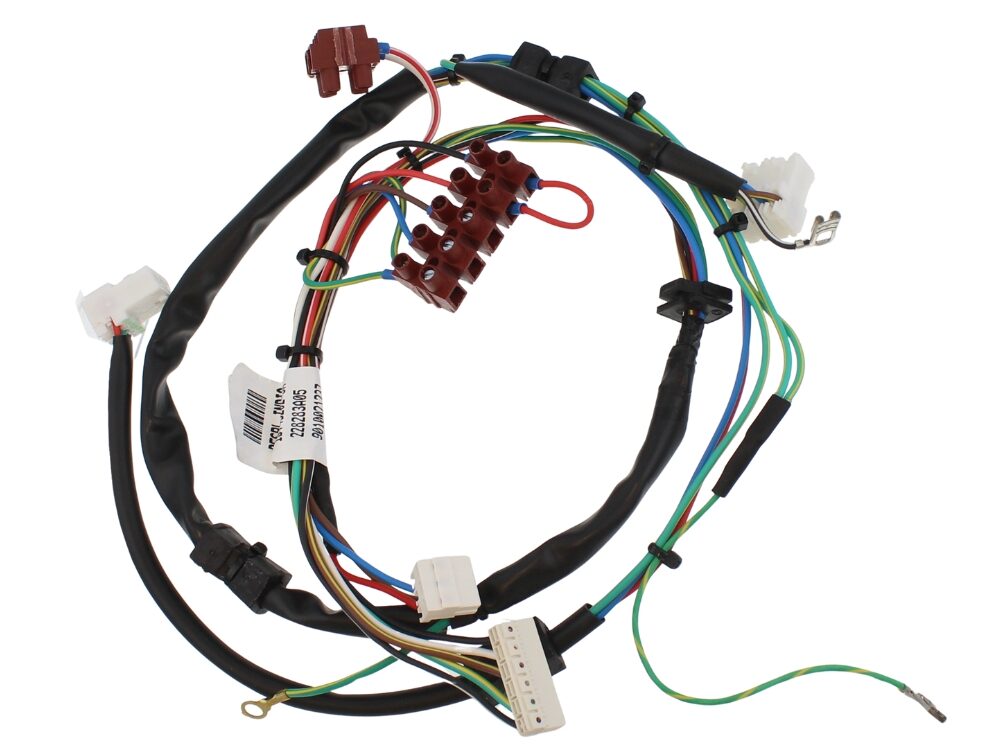

Ideal Wiring Harness Mains V4 182311
Mains wiring harness for Ideal Logic HEAT 2 and Logic MAX HEAT 2 appliances, part number 182311.
At a glance
- Appliance family: Logic HEAT 2, Logic + HEAT 2 and Logic MAX HEAT 2
- Also known as 1180160
£28.24
£23.53 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 182311 is a mains wiring harness (V4) used on Ideal Logic HEAT 2 and Logic MAX HEAT 2 appliances. It carries mains supply and control wiring between the appliance's electrical components. It is a manufacturer part identified by the number 182311.
Signs this part needs replacing
- Frayed, cracked or heat-damaged insulation on the harness wiring
- Scorched, discoloured or brittle connector plugs
- Loose or intermittent connections causing the appliance to drop out or fault
- Continuity faults or open circuits traced to the harness
- Physical damage to the harness from previous servicing or component removal
Before you order
- Check the appliance data badge and confirm the model and GC number against the fit list
- Confirm the appliance is a HEAT 2 variant, as the harness is specific to this family
- Inspect the existing harness routing and connector layout before removal
- Isolate the mains supply before fitting or inspecting the harness
Compliance
| Barcode / EAN | 5022141823114 |
|---|---|
| Alternative numbers | 1180160 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL LOGIC + HEAT 2 H12 | 41-860-20 | 41-860-20 | — | — |
| IDEAL LOGIC + HEAT 2 H15 | 41-860-21 | 41-860-21 | — | — |
| IDEAL LOGIC + HEAT 2 H18 | 41-860-22 | 41-860-22 | — | — |
| IDEAL LOGIC + HEAT 2 H24 | 41-860-23 | 41-860-23 | — | — |
| IDEAL LOGIC + HEAT 2 H30 | 41-860-24 | 41-860-24 | — | — |
| IDEAL LOGIC HEAT 2 H12 | 41-860-10 | 41-860-10 | — | — |
| IDEAL LOGIC HEAT 2 H12 IE | 41-860-15 | 41-860-15 | — | — |
| IDEAL LOGIC HEAT 2 H15 | 41-860-11 | 41-860-11 | — | — |
| IDEAL LOGIC HEAT 2 H15 IE | 41-860-16 | 41-860-16 | — | — |
| IDEAL LOGIC HEAT 2 H18 | 41-860-12 | 41-860-12 | — | — |
Showing 10 of 25 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — LOGIC HEAT 2 H12 (GC 41-860-10), LOGIC HEAT 2 H15 (GC 41-860-11), LOGIC HEAT 2 H18 (GC 41-860-12), LOGIC HEAT 2 H24 (GC 41-860-13), LOGIC HEAT 2 H30 (GC 41-860-14)
manualmanualIDEAL appliance manual — LOGIC MAX HEAT 2 H12 (GC 41-860-25), LOGIC MAX HEAT 2 H15 (GC 41-860-26), LOGIC MAX HEAT 2 H18 (GC 41-860-27), LOGIC MAX HEAT 2 H24 (GC 41-860-28), LOGIC MAX HEAT 2 H30 (GC 41-860-29)
manualNo technical questions yet for this part.
