Ideal Wiring Harness Timer Option Link 181111

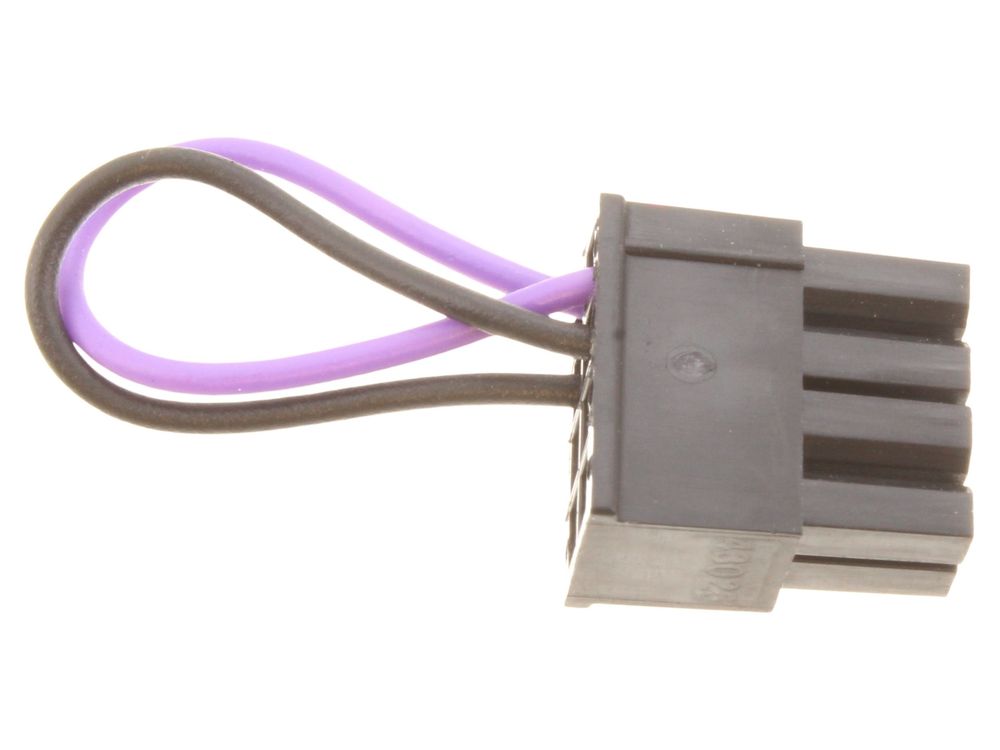

Ideal timer option link wiring harness, part 181111, for AFQ or later Logic combi boilers.
At a glance
- Also known as 1777762
£5.78
£4.82 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal timer option link wiring harness, part number 181111, is a wiring loom used to connect an optional timer or programmer to the boiler's control PCB. It is specified for AFQ or later build Logic combi appliances. The harness provides the electrical link required when a time control is being fitted or replaced.
Signs this part needs replacing
- Timer or programmer fails to power up after fitting
- Intermittent or lost time control function on the boiler
- Visible damage, chafing or scorching on the harness leads
- Loose or corroded connector terminals at the PCB or timer plug
- Fault codes or control faults traced to the timer wiring circuit
Before you order
- Confirm the boiler model against the fit list above
- Check the appliance build code is AFQ or later
- Inspect the existing harness connectors for damage before ordering
- Verify whether a timer or programmer is being fitted alongside the harness
Compliance
| Barcode / EAN | 5022141811111 |
|---|---|
| Alternative numbers | 1777762 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL LOGIC CODE COMBI ESP1 26 | 47-349-35 | 47-349-35 | — | — |
| IDEAL LOGIC CODE COMBI ESP1 33 | 47-349-36 | 47-349-36 | — | — |
| IDEAL LOGIC CODE COMBI ESP1 38 | 47-349-37 | 47-349-37 | — | — |
| IDEAL LOGIC COMBI 2 C24 | 47-349-93 | 47-349-93 | — | — |
| IDEAL LOGIC COMBI 2 C24 IE | 47-349-96 | 47-349-96 | — | — |
| IDEAL LOGIC COMBI 2 C30 | 47-349-94 | 47-349-94 | — | — |
| IDEAL LOGIC COMBI 2 C30 IE | 47-349-97 | 47-349-97 | — | — |
| IDEAL LOGIC COMBI 2 C35 | 47-349-95 | 47-349-95 | — | — |
| IDEAL LOGIC COMBI 2 C35 IE | 47-349-98 | 47-349-98 | — | — |
| IDEAL LOGIC MAX COMBI 2 C24 | 47-387-03 | 47-387-03 | — | — |
Showing 10 of 21 compatible appliances.
