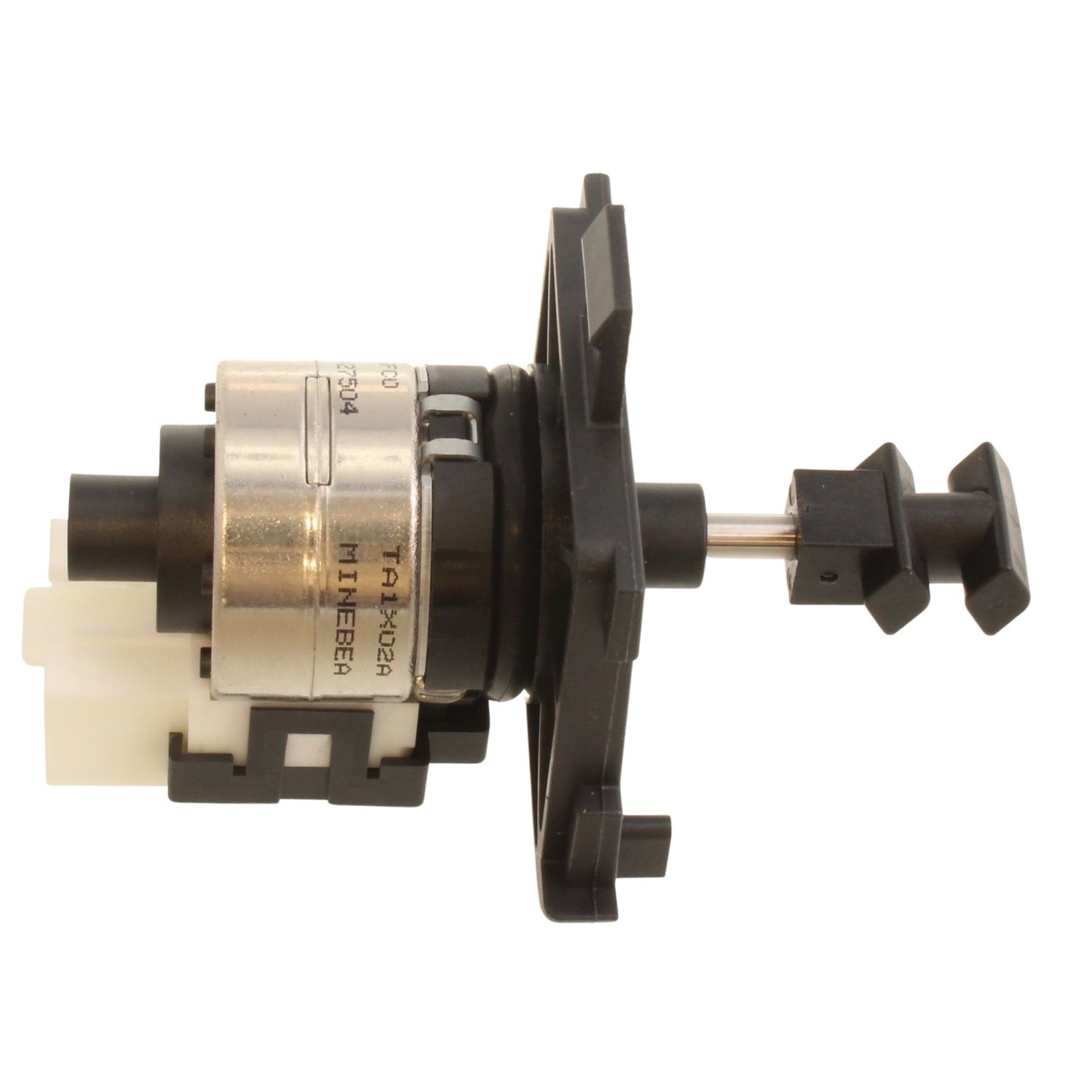

Ideal Diverter Valve Motor Kit Minebea 24V 181018
Ideal 181018 diverter valve motor kit with a Minebea 24V motor, for Atlantic Combi and Classic 2 combi boilers and other Ideal models.
At a glance
- Part type: Diverter and motorised valves
- Also known as 1179989
£81.30
£67.75 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 181018 is a diverter valve motor kit built around a Minebea 24V motor. It drives the diverter valve spindle inside the boiler, moving the valve between central heating and domestic hot water positions on demand. The kit is supplied by Ideal for use across the Atlantic Combi, Classic 2 and related appliance families listed in the compatibility table.
Signs this part needs replacing
- Hot water runs but central heating never fires, or the reverse, with the valve stuck in one position.
- The motor head hums or buzzes continuously without the valve spindle turning.
- No hot water at the taps while the boiler still heats the radiators.
- The valve fails to return to its rest position after a hot water draw-off, leaving the boiler cycling.
- Visible scorching, a stiff or seized spindle, or a motor that has stopped responding to the PCB demand.
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct variant.
- Confirm the existing motor is a Minebea 24V unit and that the part number on the old component matches 181018 or 1179989.
- Inspect the valve body and seals while the motor is off; a worn spindle or perished O-ring may need attention at the same time.
- Note the appliance model and serial number before ordering so the correct version is supplied first time.
Mechanical
| Part type | Diverter & Motorised Valves |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Performance
| Voltage | 24 V |
|---|
Compliance
| Manufacturer part number (MPN) | 181018 |
|---|---|
| Barcode / EAN | 5022141810183 |
| Commodity code | 8501 10 00 00 |
| GPC classification | Valves/Fittings Accessories/Replacement Parts - Water and Gas |
| Alternative numbers | 1179989 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL ATLANTIC COMBI 24 | 47-349-81 | 47-349-81 | — | — |
| IDEAL ATLANTIC COMBI 30 | 47-349-82 | 47-349-82 | — | — |
| IDEAL ATLANTIC COMBI 35 | 47-349-83 | 47-349-83 | — | — |
| IDEAL CLASSIC 2 24 | 47-349-71 | 47-349-71 | — | — |
| IDEAL CLASSIC 2 30 | 47-349-72 | 47-349-72 | — | — |
| IDEAL CLASSIC 2 35 | 47-349-73 | 47-349-73 | — | — |
| IDEAL ESPRIT ECO 2 24 | 47-349-65 | 47-349-65 | — | — |
| IDEAL ESPRIT ECO 2 30 | 47-349-66 | 47-349-66 | — | — |
| IDEAL ESPRIT ECO 2 35 | 47-349-67 | 47-349-67 | — | — |
| IDEAL EXCLUSIVE 2 24 | 47-349-62 | 47-349-62 | — | — |
Showing 10 of 64 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — LOGIC COMBI 2 C24 (GC 47-349-93), LOGIC COMBI 2 C30 (GC 47-349-94), LOGIC COMBI 2 C35 (GC 47-349-95)
manualmanualIDEAL appliance manual — LOGIC MAX COMBI 2 C24 (GC 47-387-03), LOGIC MAX COMBI 2 C30 (GC 47-387-04), LOGIC MAX COMBI 2 C35 (GC 47-387-05)
manualmanualIDEAL appliance manual — LOGIC MAX COMBI C24 (GC 47-349-56), LOGIC MAX COMBI C30 (GC 47-349-57), LOGIC MAX COMBI C35 (GC 47-349-58)
manualmanualIDEAL appliance manual — VOGUE MAX COMBI 26 (GC 47-349-59), VOGUE MAX COMBI 32 (GC 47-349-60), VOGUE MAX COMBI 40 (GC 47-349-61)
manualNo technical questions yet for this part.
