Ideal
Ideal Fascia Kit 179230
Ideal 179230 fascia kit, a casing assembly spare for Ideal Logic+ Heat commercial boiler models. Alternative number 8901880.
At a glance
- Part type: Fascia kit (casing assembly)
- Also known as 8901880
£22.45
£18.71 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is

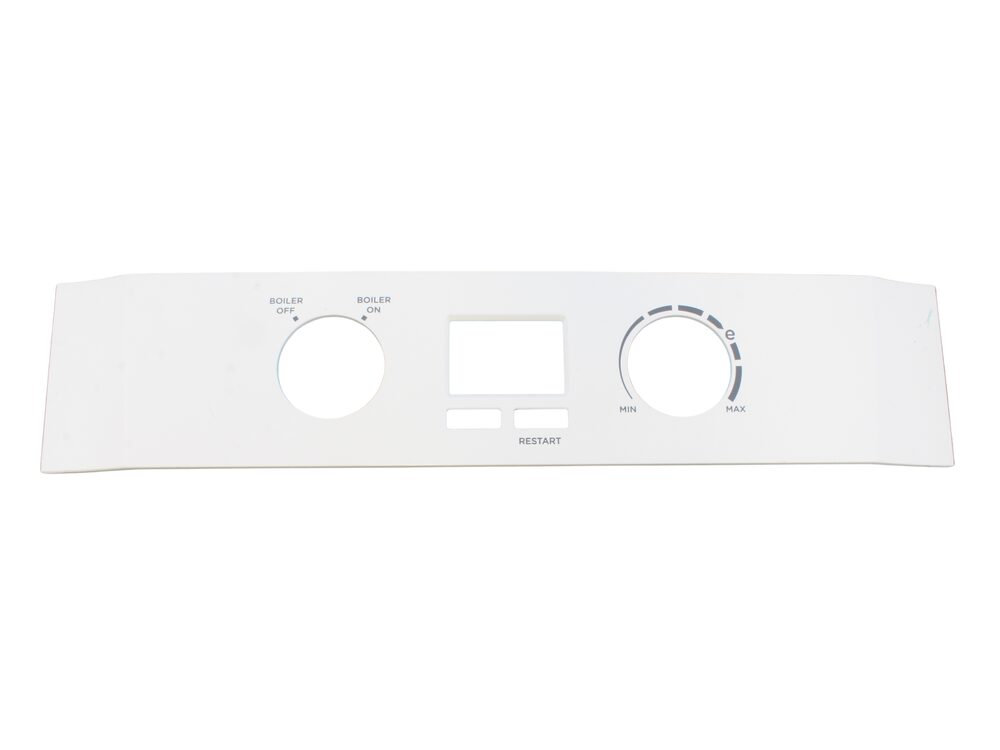

The Ideal 179230 is a fascia kit supplied as a casing assembly for Ideal commercial heating appliances. It forms the outer front panel of the boiler casing, sitting over the controls and combustion area to give the appliance its finished appearance while shielding internal components from dust and accidental contact.
The kit is listed under the Casings, Covers & Panels spare category and is used across the Ideal Logic+ Heat range of commercial boilers. It is not a gas-carrying component.
Signs this part needs replacing
- Visible cracks, splits or impact damage to the fascia panel
- Discolouration or heat marking on the front casing
- Broken or missing retaining clips that stop the panel seating correctly
- A loose or rattling front panel that will not sit flush against the casing
- Damage caused during servicing or removal of the casing
Before you order
- Check the appliance GC number against the compatibility list to confirm the correct fascia variant for your model
- Confirm the model and serial details on the boiler data badge before ordering
- Inspect the existing fixings and clips, as these are often reused when fitting a replacement fascia
Mechanical
| Part type | Casings, Covers & Panels |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 179230 |
|---|---|
| Barcode / EAN | 5022141792304 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 8901880 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL LOGIC + HEAT H12 | 41-750-82 | 41-750-82 | — | — |
| IDEAL LOGIC + HEAT H15 | 41-750-83 | 41-750-83 | — | — |
| IDEAL LOGIC + HEAT H18 | 41-750-84 | 41-750-84 | — | — |
| IDEAL LOGIC + HEAT H24 | 41-750-85 | 41-750-85 | — | — |
| IDEAL LOGIC + HEAT H30 | 41-750-86 | 41-750-86 | — | — |
| IDEAL LOGIC HEAT H12 | 41-750-77 | 41-750-77 | — | — |
| IDEAL LOGIC HEAT H15 | 41-750-78 | 41-750-78 | — | — |
| IDEAL LOGIC HEAT H18 | 41-750-79 | 41-750-79 | — | — |
| IDEAL LOGIC HEAT H24 | 41-750-80 | 41-750-80 | — | — |
| IDEAL LOGIC HEAT H30 | 41-750-81 | 41-750-81 | — | — |
Showing 10 of 16 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — LOGIC + HEAT H12 (GC 41-750-82), LOGIC + HEAT H15 (GC 41-750-83), LOGIC + HEAT H18 (GC 41-750-84), LOGIC + HEAT H24 (GC 41-750-85), LOGIC + HEAT H30 (GC 41-750-86)
manualmanualIDEAL appliance manual — LOGIC HEAT H12 (GC 41-750-77), LOGIC HEAT H15 (GC 41-750-78), LOGIC HEAT H18 (GC 41-750-79), LOGIC HEAT H24 (GC 41-750-80), LOGIC HEAT H30 (GC 41-750-81)
manualmanualIDEAL appliance manual — LOGIC MAX HEAT H12 (GC 41-796-17), LOGIC MAX HEAT H15 (GC 41-796-18), LOGIC MAX HEAT H18 (GC 41-796-19), LOGIC MAX HEAT H24 (GC 41-796-20), LOGIC MAX HEAT H30 (GC 41-796-21)
