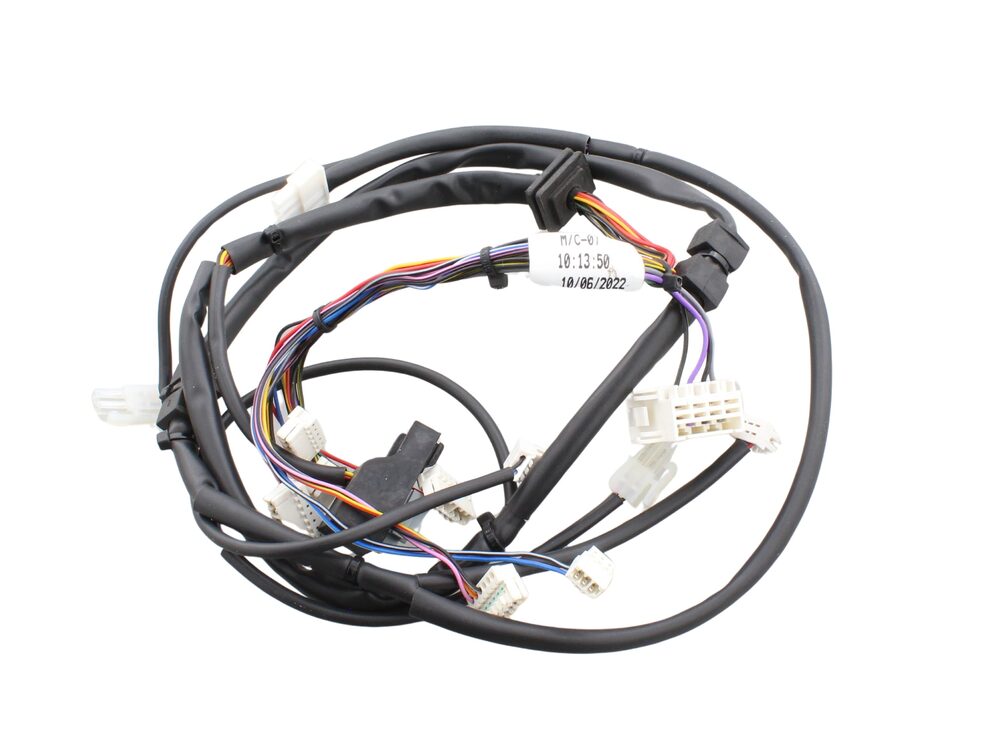

Ideal 179227 voltage PELV wiring harness for Logic+ Heat boilers, carrying low-voltage connections between the PCB and boiler components.
At a glance
- Part type: Wiring harness (voltage PELV)
- Appliance family: Logic+ Heat
- Also known as 1777750
£41.81
£34.84 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 179227 is a voltage PELV wiring harness supplied for Ideal Logic+ Heat boilers. It forms the low-voltage electrical link between the appliance's control board and the components it supplies, so that signals and power reach the fan, pump, sensors and other parts of the boiler's control circuit. It is a service replacement item intended for installation inside the appliance casing.
Signs this part needs replacing
- Intermittent boiler faults that appear or disappear when the loom is moved or the plugs are reseated
- Visible chafing, scorching, brittleness or exposed conductor on the harness insulation
- Corroded, loose or heat-damaged plug connectors at the board or at the component end
- Loss of supply to a boiler component with no fault found at the component itself
- Repeated blowing of the appliance fuse linked to the harness circuit
Before you order
- Check the model and GC number on the appliance data badge against the compatibility list before ordering
- Confirm the existing harness carries the number 179227 or the alternative number 1777750
- Isolate the electrical supply and follow the manufacturer's wiring diagram when fitting, as incorrect routing can cause the fault to return
Mechanical
| Part type | Wiring harness |
|---|---|
| Appliance family | Logic+ Heat |
Compliance
| Manufacturer part number (MPN) | 179227 |
|---|---|
| Barcode / EAN | 5022141792274 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1777750 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL LOGIC + HEAT H12 | 41-750-82 | 41-750-82 | — | — |
| IDEAL LOGIC + HEAT H15 | 41-750-83 | 41-750-83 | — | — |
| IDEAL LOGIC + HEAT H18 | 41-750-84 | 41-750-84 | — | — |
| IDEAL LOGIC + HEAT H24 | 41-750-85 | 41-750-85 | — | — |
| IDEAL LOGIC + HEAT H30 | 41-750-86 | 41-750-86 | — | — |
| IDEAL LOGIC HEAT H12 | 41-750-77 | 41-750-77 | — | — |
| IDEAL LOGIC HEAT H15 | 41-750-78 | 41-750-78 | — | — |
| IDEAL LOGIC HEAT H18 | 41-750-79 | 41-750-79 | — | — |
| IDEAL LOGIC HEAT H24 | 41-750-80 | 41-750-80 | — | — |
| IDEAL LOGIC HEAT H30 | 41-750-81 | 41-750-81 | — | — |
Showing 10 of 16 compatible appliances.
