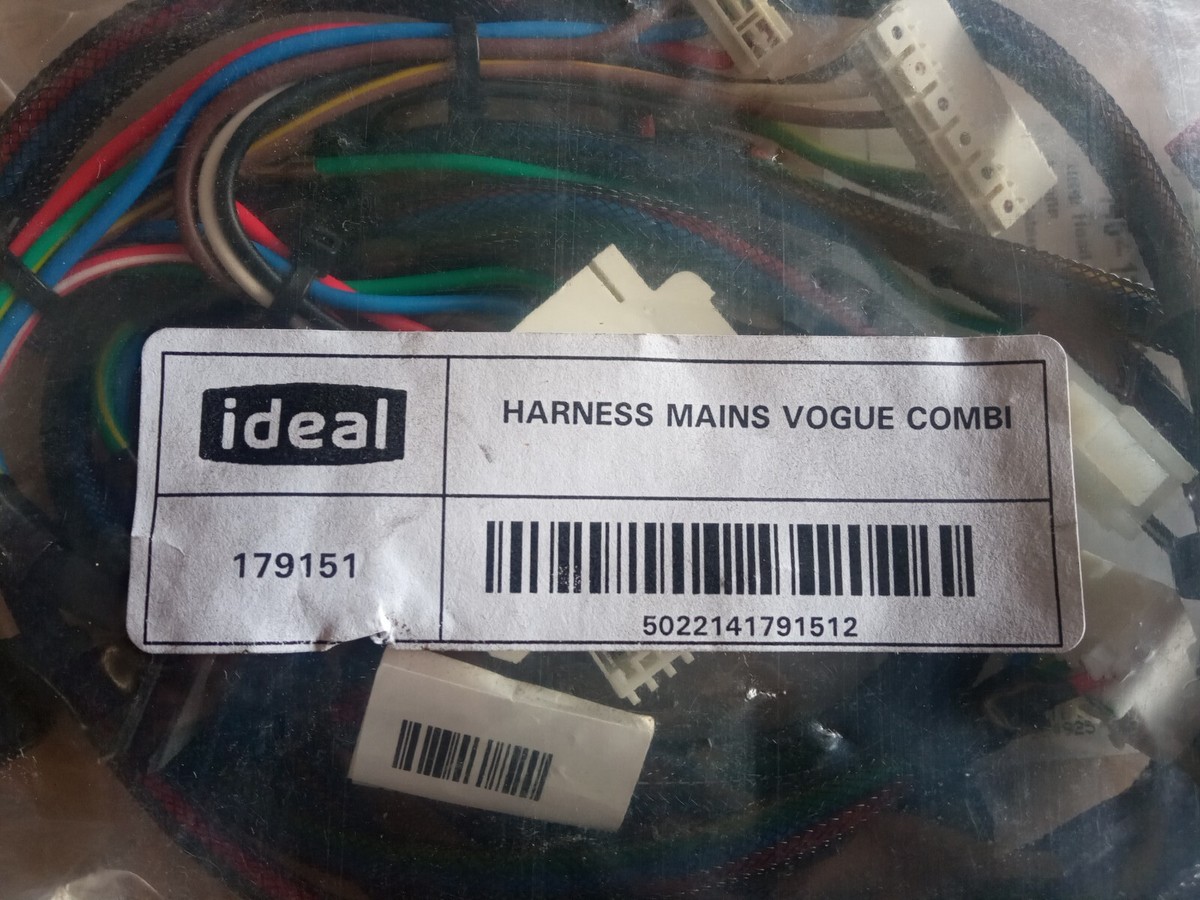

Ideal Wiring Harness Mains Vogue Combi 179151
Ideal 179151 mains wiring harness for Vogue Combi Gen2 appliances, carrying the mains supply to the boiler's control components.
At a glance
- Part type: Wiring harness (cables, leads and wiring harnesses)
- Appliance family: Vogue Combi Gen2
- Also known as 1777742
£44.69
£37.24 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 179151 is the mains wiring harness fitted to Ideal Vogue Combi Gen2 appliances. It carries the mains supply from the boiler's connection point through to the control components, so the appliance can power up, run its sequence and hold a stable supply during operation. The part is listed under Ideal Spares as a cable, lead and wiring harness item.
Signs this part needs replacing
- The boiler does not power up, or the display stays blank with the mains supply present and proven at the isolation point.
- Intermittent shutdowns or resets that reappear when the harness or its plugs are moved.
- Visible chafing, scorching, discoloured sleeving or brittle insulation on the mains leads.
- Loose, corroded or partially seated connectors at the harness ends.
- Fault codes or lockouts that clear temporarily after the harness is disturbed, then return.
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the harness matches your model.
- Confirm the model and generation shown on the data badge before ordering, as the harness is listed against specific Vogue Combi Gen2 variants.
- Cross-reference the alternative part number 1777742 if you are working from an older parts listing.
- Isolate the mains supply and work to the manufacturer's wiring diagram when removing and refitting the harness.
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Appliance family | Vogue Combi Gen2 |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 179151 |
|---|---|
| Barcode / EAN | 5022141791512 |
| Commodity code | 8544 42 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1777742 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL VOGUE C26 GEN2 | 47-349-38 | 47-349-38 | — | — |
| IDEAL VOGUE C26 IE GEN2 | 47-349-47 | 47-349-47 | — | — |
| IDEAL VOGUE C32 GEN2 | 47-349-39 | 47-349-39 | — | — |
| IDEAL VOGUE C32 IE GEN2 | 47-349-48 | 47-349-48 | — | — |
| IDEAL VOGUE C40 GEN2 | 47-349-40 | 47-349-40 | — | — |
| IDEAL VOGUE C40 IE GEN2 | 47-349-49 | 47-349-49 | — | — |
| IDEAL VOGUE MAX COMBI 26 | 47-349-59 | 47-349-59 | — | — |
| IDEAL VOGUE MAX COMBI 32 | 47-349-60 | 47-349-60 | — | — |
| IDEAL VOGUE MAX COMBI 40 | 47-349-61 | 47-349-61 | — | — |
| IDEAL COMMERCIAL IDEAL COMMERCIAL PARTS | — | — | — |
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — VOGUE C26 GEN2 (GC 47-349-38), VOGUE C32 GEN2 (GC 47-349-39), VOGUE C40 GEN2 (GC 47-349-40)
manualmanualIDEAL appliance manual — VOGUE C26 IE GEN2 (GC 47-349-47), VOGUE C32 IE GEN2 (GC 47-349-48), VOGUE C40 IE GEN2 (GC 47-349-49)
manualmanualIDEAL appliance manual — VOGUE MAX COMBI 26 (GC 47-349-59), VOGUE MAX COMBI 32 (GC 47-349-60), VOGUE MAX COMBI 40 (GC 47-349-61)
manualNo technical questions yet for this part.
