Ideal

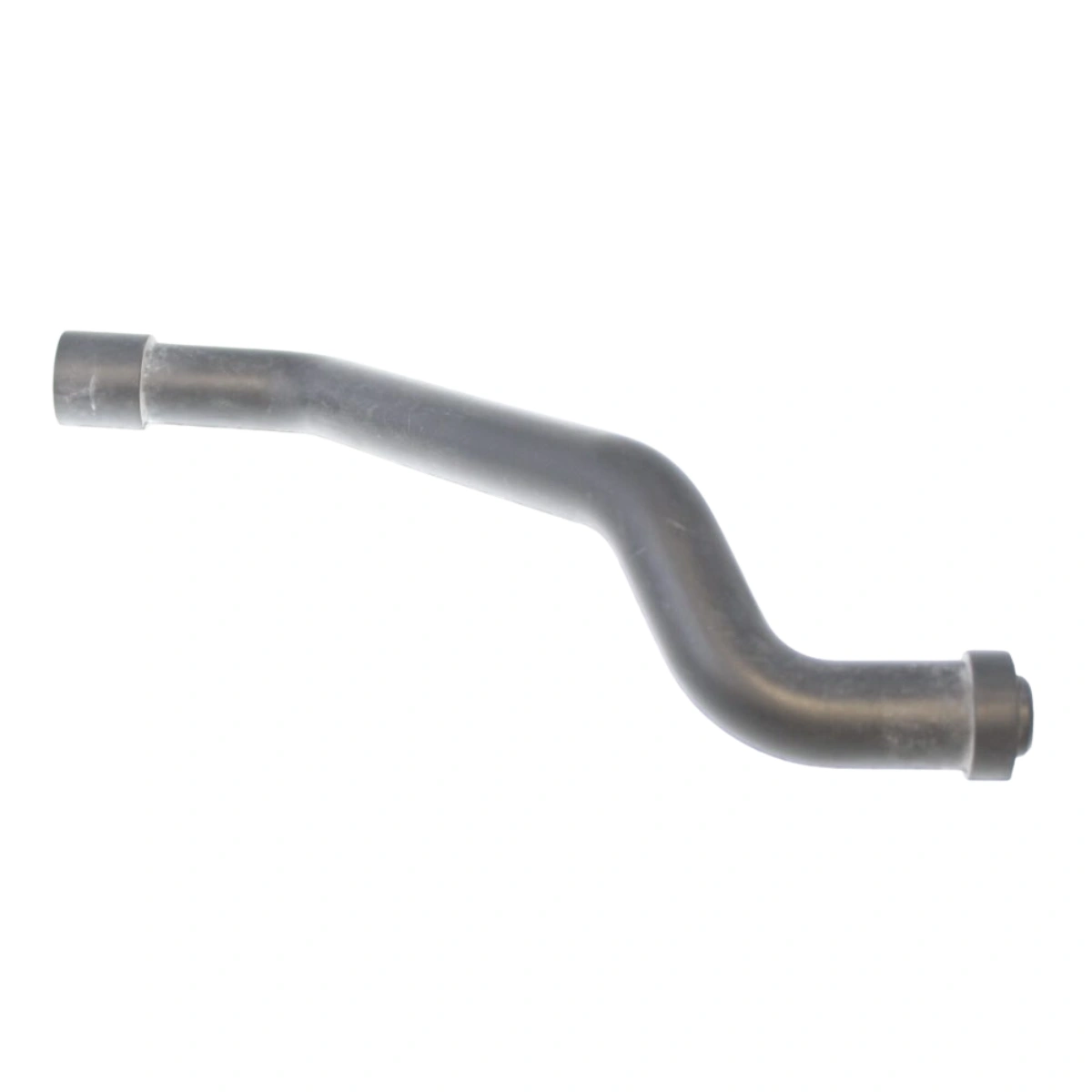

Ideal Condensate Hose Assembly 179140
Ideal condensate hose assembly, part 179140, for Vogue Gen2 and Ideal Commercial boilers, routing condensate from the heat exchanger to the trap.
At a glance
- Part type: Condensate assembly
- Also known as 1782802
£31.33
£26.11 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 179140 is a condensate hose assembly used in Ideal's condensing boiler range. It forms part of the condensate removal path, carrying acidic condensate water away from the heat exchanger and flue gases towards the condensate trap and external drain. The assembly is listed by Ideal under the spare part type Pipes & Hoses and is supplied for the Vogue Gen2 family and Ideal Commercial appliances.
Signs this part needs replacing
- Water pooling on the floor or inside the boiler casing beneath the condensate route
- Visible cracking, splitting or perishing along the hose wall
- Condensate leaking at the hose connection to the trap or heat exchanger outlet
- Boiler locking out or showing a condensate-related fault code
- Gurgling, slow drainage or a blocked condensate path traced back to the hose
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct variant
- Note the alternative number 1782802 when cross-referencing older documentation
- Inspect the condensate trap and its seals at the same time, as these are commonly disturbed during replacement
Mechanical
| Part type | Pipes & Hoses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 179140 |
|---|---|
| Barcode / EAN | 5022141791406 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782802 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL VOGUE C26 GEN2 | 47-349-38 | 47-349-38 | — | — |
| IDEAL VOGUE C26 IE GEN2 | 47-349-47 | 47-349-47 | — | — |
| IDEAL VOGUE C32 GEN2 | 47-349-39 | 47-349-39 | — | — |
| IDEAL VOGUE C32 IE GEN2 | 47-349-48 | 47-349-48 | — | — |
| IDEAL VOGUE C40 GEN2 | 47-349-40 | 47-349-40 | — | — |
| IDEAL VOGUE C40 IE GEN2 | 47-349-49 | 47-349-49 | — | — |
| IDEAL VOGUE MAX COMBI 26 | 47-349-59 | 47-349-59 | — | — |
| IDEAL VOGUE MAX COMBI 32 | 47-349-60 | 47-349-60 | — | — |
| IDEAL VOGUE MAX COMBI 40 | 47-349-61 | 47-349-61 | — | — |
| IDEAL VOGUE MAX SYSTEM 18 | 41-796-23 | 41-796-23 | — | — |
Showing 10 of 21 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — VOGUE C26 GEN2 (GC 47-349-38), VOGUE C32 GEN2 (GC 47-349-39), VOGUE C40 GEN2 (GC 47-349-40)
manualmanualIDEAL appliance manual — VOGUE C26 IE GEN2 (GC 47-349-47), VOGUE C32 IE GEN2 (GC 47-349-48), VOGUE C40 IE GEN2 (GC 47-349-49)
manualmanualIDEAL appliance manual — VOGUE MAX COMBI 26 (GC 47-349-59), VOGUE MAX COMBI 32 (GC 47-349-60), VOGUE MAX COMBI 40 (GC 47-349-61)
manualmanualIDEAL appliance manual — VOGUE MAX SYSTEM 18 (GC 41-796-23), VOGUE MAX SYSTEM 26 (GC 41-796-24), VOGUE MAX SYSTEM 32 (GC 41-796-25)
manualmanualIDEAL appliance manual — VOGUE S15 GEN2 (GC 41-750-88), VOGUE S18 GEN2 (GC 41-750-89), VOGUE S26 GEN2 (GC 41-750-90), VOGUE S32 GEN2 (GC 41-750-91)
manualmanualIDEAL appliance manual — VOGUE S15 IE GEN2 (GC 41-750-97), VOGUE S18 IE GEN2 (GC 41-750-98), VOGUE S26 IE GEN2 (GC 41-750-99), VOGUE S32 IE GEN2 (GC 41-796-01)
manualNo technical questions yet for this part.
Not sure which part?
Search by part number, product name or brand — our technical team confirms fitment before anything is dispatched.
