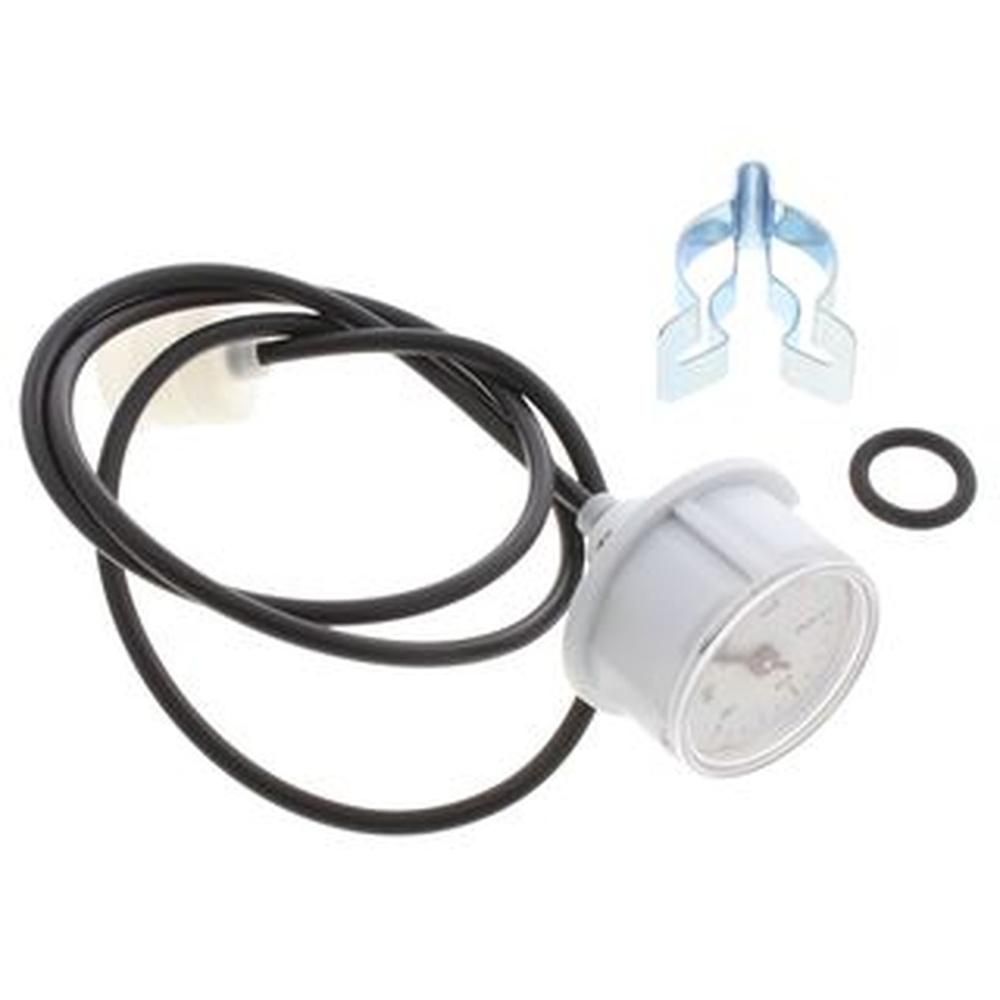

Ideal Pressure Gauge Kit 179136
Ideal 179136 pressure gauge kit (alt. 4400022) for Ideal Vogue Gen2 and Commercial boilers, showing system water pressure on the sealed circuit.
At a glance
- Part type: Pressure gauge kit
- Also known as 4400022
£28.30
£23.58 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 179136 is a pressure gauge kit for Ideal gas boilers. It displays the water pressure inside the sealed heating circuit on the boiler's fascia, so the reading can be checked against the filling loop during servicing or fault-finding. The kit is listed under the Ideal gauges spare part group and is used across the Vogue Gen2 range and Ideal Commercial appliances.
Signs this part needs replacing
- The needle stays at zero or does not move when the system is pressurised
- The reading drifts, jumps or reads erratically against a known system pressure
- The dial face is misted, discoloured or the markings can no longer be read
- Water weeps from the gauge body or from its connection to the boiler
- The boiler shows a low-pressure fault or locks out even though the system is correctly filled
Before you order
- Match the appliance model and GC number against the compatibility list before ordering
- Have the appliance GC number and serial number to hand when cross-referencing the part
- Note the alternative number 4400022 when checking older Ideal documentation
Mechanical
| Part type | Gauges |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 179136 |
|---|---|
| Barcode / EAN | 5022141791369 |
| Commodity code | 9026 20 20 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 4400022 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL VOGUE C26 GEN2 | 47-349-38 | 47-349-38 | — | — |
| IDEAL VOGUE C26 IE GEN2 | 47-349-47 | 47-349-47 | — | — |
| IDEAL VOGUE C32 GEN2 | 47-349-39 | 47-349-39 | — | — |
| IDEAL VOGUE C32 IE GEN2 | 47-349-48 | 47-349-48 | — | — |
| IDEAL VOGUE C40 GEN2 | 47-349-40 | 47-349-40 | — | — |
| IDEAL VOGUE C40 IE GEN2 | 47-349-49 | 47-349-49 | — | — |
| IDEAL VOGUE MAX COMBI 26 | 47-349-59 | 47-349-59 | — | — |
| IDEAL VOGUE MAX COMBI 32 | 47-349-60 | 47-349-60 | — | — |
| IDEAL VOGUE MAX COMBI 40 | 47-349-61 | 47-349-61 | — | — |
| IDEAL VOGUE MAX SYSTEM 15 | 41-796-22 | 41-796-22 | — | — |
Showing 10 of 22 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — VOGUE C26 GEN2 (GC 47-349-38), VOGUE C32 GEN2 (GC 47-349-39), VOGUE C40 GEN2 (GC 47-349-40)
manualmanualIDEAL appliance manual — VOGUE C26 IE GEN2 (GC 47-349-47), VOGUE C32 IE GEN2 (GC 47-349-48), VOGUE C40 IE GEN2 (GC 47-349-49)
manualmanualIDEAL appliance manual — VOGUE MAX COMBI 26 (GC 47-349-59), VOGUE MAX COMBI 32 (GC 47-349-60), VOGUE MAX COMBI 40 (GC 47-349-61)
manualmanualIDEAL appliance manual — VOGUE MAX SYSTEM 15 (GC 41-796-22), VOGUE MAX SYSTEM 18 (GC 41-796-23), VOGUE MAX SYSTEM 26 (GC 41-796-24), VOGUE MAX SYSTEM 32 (GC 41-796-25)
manualmanualIDEAL appliance manual — VOGUE S15 GEN2 (GC 41-750-88), VOGUE S18 GEN2 (GC 41-750-89), VOGUE S26 GEN2 (GC 41-750-90), VOGUE S32 GEN2 (GC 41-750-91)
manualmanualIDEAL appliance manual — VOGUE S15 IE GEN2 (GC 41-750-97), VOGUE S18 IE GEN2 (GC 41-750-98), VOGUE S26 IE GEN2 (GC 41-750-99), VOGUE S32 IE GEN2 (GC 41-796-01)
manualNo technical questions yet for this part.
