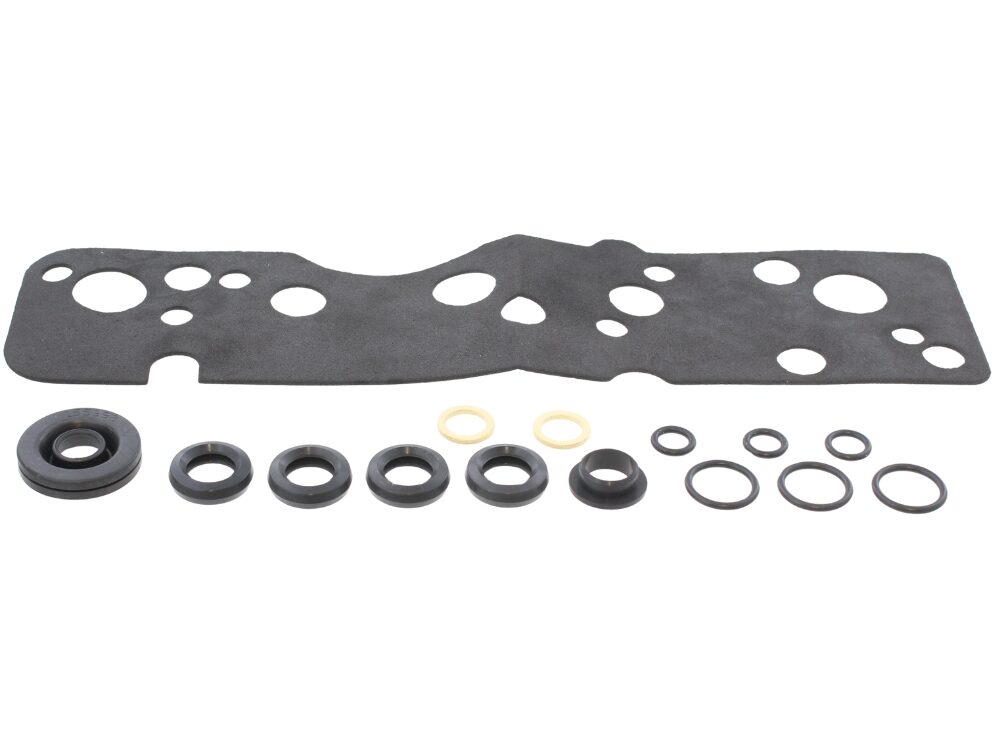

Ideal Hydroblock Gasket Kit 179070
Hydroblock gasket kit for Ideal Logic+ System and Logic System boilers, part 179070, sealing the hydroblock assembly joints.
At a glance
- Part type: gaskets, O-rings, seals and washers
- Also known as 8904428
£20.88
£17.40 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 179070 hydroblock gasket kit contains the seals used to reseal the hydroblock assembly on Ideal Logic+ System and Logic System boilers. The hydroblock sits at the heart of the boiler's water circuit, carrying the main heat exchanger connections and the hydraulic components, so its joints are under constant pressure and temperature cycling. These gaskets form the watertight seal between the hydroblock body and the parts bolted to it.
Signs this part needs replacing
- Water weeping or a visible drip from around the hydroblock body or its connection points
- Crusty white limescale staining or rust-coloured marks at the hydroblock joints
- Falling system pressure that needs topping up more often than usual
- Seals that have hardened, flattened or split when the hydroblock is disturbed during a repair
- Damp patches or corrosion on components sitting below the hydroblock
Before you order
- Check the appliance GC number and model against the compatibility list to confirm the kit suits your boiler
- Confirm the part number on the existing component or in the boiler's service documentation before ordering
- If the hydroblock is being opened for another repair, replace the seals at the same time rather than reusing old ones
- Work on the boiler's water circuit should be carried out by a competent engineer, with the appliance isolated and drained as required
Mechanical
| Part type | Gaskets, O-rings, seals and washers |
|---|---|
| Appliance family | Logic+ System, Logic System |
Compliance
| Manufacturer part number (MPN) | 179070 |
|---|---|
| Barcode / EAN | 5022141790706 |
| Commodity code | 8484 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 8904428 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC + SYSTEM S15 | — | — | — | |
| IDEAL IDEAL : LOGIC + SYSTEM S18 | — | — | — | |
| IDEAL IDEAL : LOGIC + SYSTEM S24 | — | — | — | |
| IDEAL IDEAL : LOGIC + SYSTEM S30 | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM S15 | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM S15IE | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM S18 | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM S18IE | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM S24 | — | — | — | |
| IDEAL IDEAL : LOGIC SYSTEM S24IE | — | — | — |
Showing 10 of 33 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — INDEPENDENT SYSTEM S15 (GC 41-750-69), INDEPENDENT SYSTEM S18 (GC 41-750-70), INDEPENDENT SYSTEM S24 (GC 41-750-71), INDEPENDENT SYSTEM S30 (GC 41-750-72)
manualmanualIDEAL appliance manual — LOGIC + SYSTEM S15 (GC 41-750-65), LOGIC + SYSTEM S18 (GC 41-750-66), LOGIC + SYSTEM S24 (GC 41-750-67), LOGIC + SYSTEM S30 (GC 41-750-68)
manualmanualIDEAL appliance manual — LOGIC MAX SYSTEM S15 (GC 41-796-13), LOGIC MAX SYSTEM S18 (GC 41-796-14), LOGIC MAX SYSTEM S24 (GC 41-796-15), LOGIC MAX SYSTEM S30 (GC 41-796-16)
manualmanualIDEAL appliance manual — LOGIC SYSTEM S15 (GC 41-750-61), LOGIC SYSTEM S18 (GC 41-750-62), LOGIC SYSTEM S24 (GC 41-750-63), LOGIC SYSTEM S30 (GC 41-750-64)
manualNo technical questions yet for this part.
