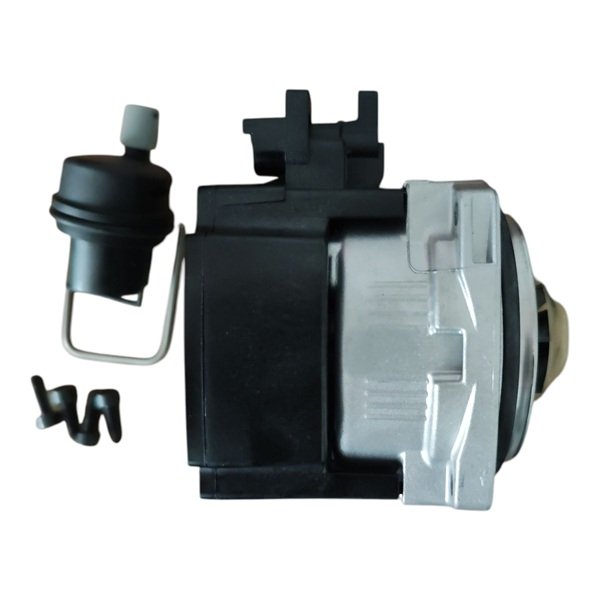

Ideal Pump Head Kit Vogue Gen 2 179063
Ideal pump head kit (179063) for Vogue Gen 2 condensing boilers, replacing the circulating pump head that moves primary water around the heating circuit.
At a glance
- Part type: Pump head kit
- Appliance family: Ideal Vogue Gen 2
- Also known as 8904170
£436.70
£363.92 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The pump head kit is the hydraulic and motor section of the circulating pump used on Ideal Vogue Gen 2 condensing boilers. It contains the pump head assembly that drives primary water around the boiler and the heating circuit, so heat can be transferred from the heat exchanger to the radiators and hot water cylinder. The kit is supplied by Ideal for the Vogue Gen 2 range and is the direct replacement for the pump head originally fitted to these appliances.
Signs this part needs replacing
- No heating or hot water, with the boiler firing briefly and then shutting down
- Pump fault code or lockout shown on the boiler display
- Grinding, whining or rumbling noise from the pump area when the boiler runs
- Pump body running hot, or the overheat thermostat tripping during a demand
- Seized or stiff impeller that will not turn when the pump head is removed
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the boiler is a Vogue Gen 2 model
- Confirm the part number on the existing pump head or the boiler documentation matches 179063 or 59200814
- Inspect the pump gasket and O-ring seals while the head is off and replace them if they are compressed or perished
- Isolate the electrical supply and drain or isolate the boiler before removing the pump head
Mechanical
| Part type | Pumps |
|---|---|
| Appliance family | Vogue Gen 2 |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 179063 |
|---|---|
| Barcode / EAN | 5022141790638 |
| Commodity code | 8413 91 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 8904170 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL VOGUE C26 GEN2 | 47-349-38 | 47-349-38 | — | — |
| IDEAL VOGUE C26 IE GEN2 | 47-349-47 | 47-349-47 | — | — |
| IDEAL VOGUE C32 GEN2 | 47-349-39 | 47-349-39 | — | — |
| IDEAL VOGUE C32 IE GEN2 | 47-349-48 | 47-349-48 | — | — |
| IDEAL VOGUE C40 GEN2 | 47-349-40 | 47-349-40 | — | — |
| IDEAL VOGUE C40 IE GEN2 | 47-349-49 | 47-349-49 | — | — |
| IDEAL VOGUE MAX COMBI 26 | 47-349-59 | 47-349-59 | — | — |
| IDEAL VOGUE MAX COMBI 32 | 47-349-60 | 47-349-60 | — | — |
| IDEAL VOGUE MAX COMBI 40 | 47-349-61 | 47-349-61 | — | — |
| IDEAL VOGUE MAX SYSTEM 15 | 41-796-22 | 41-796-22 | — | — |
Showing 10 of 22 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — VOGUE C26 GEN2 (GC 47-349-38), VOGUE C32 GEN2 (GC 47-349-39), VOGUE C40 GEN2 (GC 47-349-40)
manualmanualIDEAL appliance manual — VOGUE C26 IE GEN2 (GC 47-349-47), VOGUE C32 IE GEN2 (GC 47-349-48), VOGUE C40 IE GEN2 (GC 47-349-49)
manualmanualIDEAL appliance manual — VOGUE MAX COMBI 26 (GC 47-349-59), VOGUE MAX COMBI 32 (GC 47-349-60), VOGUE MAX COMBI 40 (GC 47-349-61)
manualmanualIDEAL appliance manual — VOGUE MAX SYSTEM 15 (GC 41-796-22), VOGUE MAX SYSTEM 18 (GC 41-796-23), VOGUE MAX SYSTEM 26 (GC 41-796-24), VOGUE MAX SYSTEM 32 (GC 41-796-25)
manualmanualIDEAL appliance manual — VOGUE S15 GEN2 (GC 41-750-88), VOGUE S18 GEN2 (GC 41-750-89), VOGUE S26 GEN2 (GC 41-750-90), VOGUE S32 GEN2 (GC 41-750-91)
manualmanualIDEAL appliance manual — VOGUE S15 IE GEN2 (GC 41-750-97), VOGUE S18 IE GEN2 (GC 41-750-98), VOGUE S26 IE GEN2 (GC 41-750-99), VOGUE S32 IE GEN2 (GC 41-796-01)
manualNo technical questions yet for this part.
