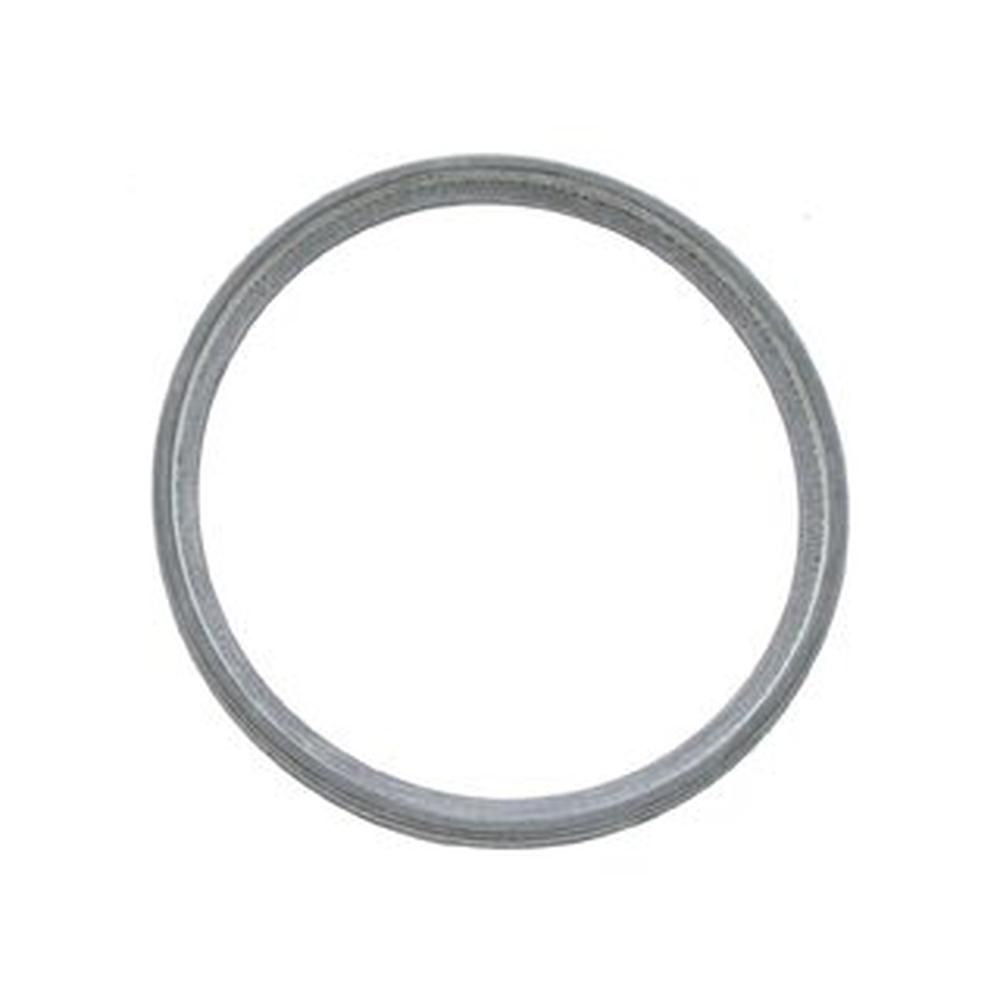

Ideal Gasket Kit Heat Exchanger to Flue 177924
Ideal 177924 heat exchanger to flue gasket kit for Vogue Gen2 and Ideal Commercial appliances, sealing the flue joint at the heat exchanger outlet.
At a glance
- Part type: Gaskets, o-rings, seals and washers
- Appliance family: Vogue Gen2
- Also known as 1782513
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£8.76
£7.30 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 177924 heat exchanger to flue gasket kit seals the joint between the heat exchanger outlet and the flue on Ideal Vogue Gen2 appliances. It is produced by Ideal and listed under the Ideal Spares brand. The gasket sits in the combustion circuit, keeping products of combustion inside the flue path rather than allowing them to escape into the appliance casing.
Signs this part needs replacing
- Soot or dark staining around the heat exchanger to flue joint
- Flue gas analyser readings drifting outside the expected range for the appliance
- Gasket visibly hardened, cracked, flattened or compressed
- Smell of combustion products close to the appliance casing
- Gasket disturbed or damaged while carrying out heat exchanger or flue work
Before you order
- Check the GC number on the appliance data badge against the compatibility list.
- Confirm the alternative number 1782513 if you are working from an older reference.
- Check whether the joint needs the complete kit rather than a single gasket.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Gaskets, Seals & Washers |
|---|---|
| Appliance family | Vogue Gen2 |
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 177924 |
|---|---|
| Barcode / EAN | 5022141779244 |
| Commodity code | 8484 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782513 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL VOGUE C26 GEN2 | 47-349-38 | 47-349-38 | — | — |
| IDEAL VOGUE C26 IE GEN2 | 47-349-47 | 47-349-47 | — | — |
| IDEAL VOGUE C32 GEN2 | 47-349-39 | 47-349-39 | — | — |
| IDEAL VOGUE C32 IE GEN2 | 47-349-48 | 47-349-48 | — | — |
| IDEAL VOGUE C40 GEN2 | 47-349-40 | 47-349-40 | — | — |
| IDEAL VOGUE C40 IE GEN2 | 47-349-49 | 47-349-49 | — | — |
| IDEAL VOGUE MAX COMBI 26 | 47-349-59 | 47-349-59 | — | — |
| IDEAL VOGUE MAX COMBI 32 | 47-349-60 | 47-349-60 | — | — |
| IDEAL VOGUE MAX COMBI 40 | 47-349-61 | 47-349-61 | — | — |
| IDEAL VOGUE MAX SYSTEM 15 | 41-796-22 | 41-796-22 | — | — |
Showing 10 of 22 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — VOGUE C26 GEN2 (GC 47-349-38), VOGUE C32 GEN2 (GC 47-349-39), VOGUE C40 GEN2 (GC 47-349-40)
manualmanualIDEAL appliance manual — VOGUE C26 IE GEN2 (GC 47-349-47), VOGUE C32 IE GEN2 (GC 47-349-48), VOGUE C40 IE GEN2 (GC 47-349-49)
manualmanualIDEAL appliance manual — VOGUE MAX COMBI 26 (GC 47-349-59), VOGUE MAX COMBI 32 (GC 47-349-60), VOGUE MAX COMBI 40 (GC 47-349-61)
manualmanualIDEAL appliance manual — VOGUE MAX SYSTEM 15 (GC 41-796-22), VOGUE MAX SYSTEM 18 (GC 41-796-23), VOGUE MAX SYSTEM 26 (GC 41-796-24), VOGUE MAX SYSTEM 32 (GC 41-796-25)
manualmanualIDEAL appliance manual — VOGUE S15 GEN2 (GC 41-750-88), VOGUE S18 GEN2 (GC 41-750-89), VOGUE S26 GEN2 (GC 41-750-90), VOGUE S32 GEN2 (GC 41-750-91)
manualmanualIDEAL appliance manual — VOGUE S15 IE GEN2 (GC 41-750-97), VOGUE S18 IE GEN2 (GC 41-750-98), VOGUE S26 IE GEN2 (GC 41-750-99), VOGUE S32 IE GEN2 (GC 41-796-01)
manualNo technical questions yet for this part.
