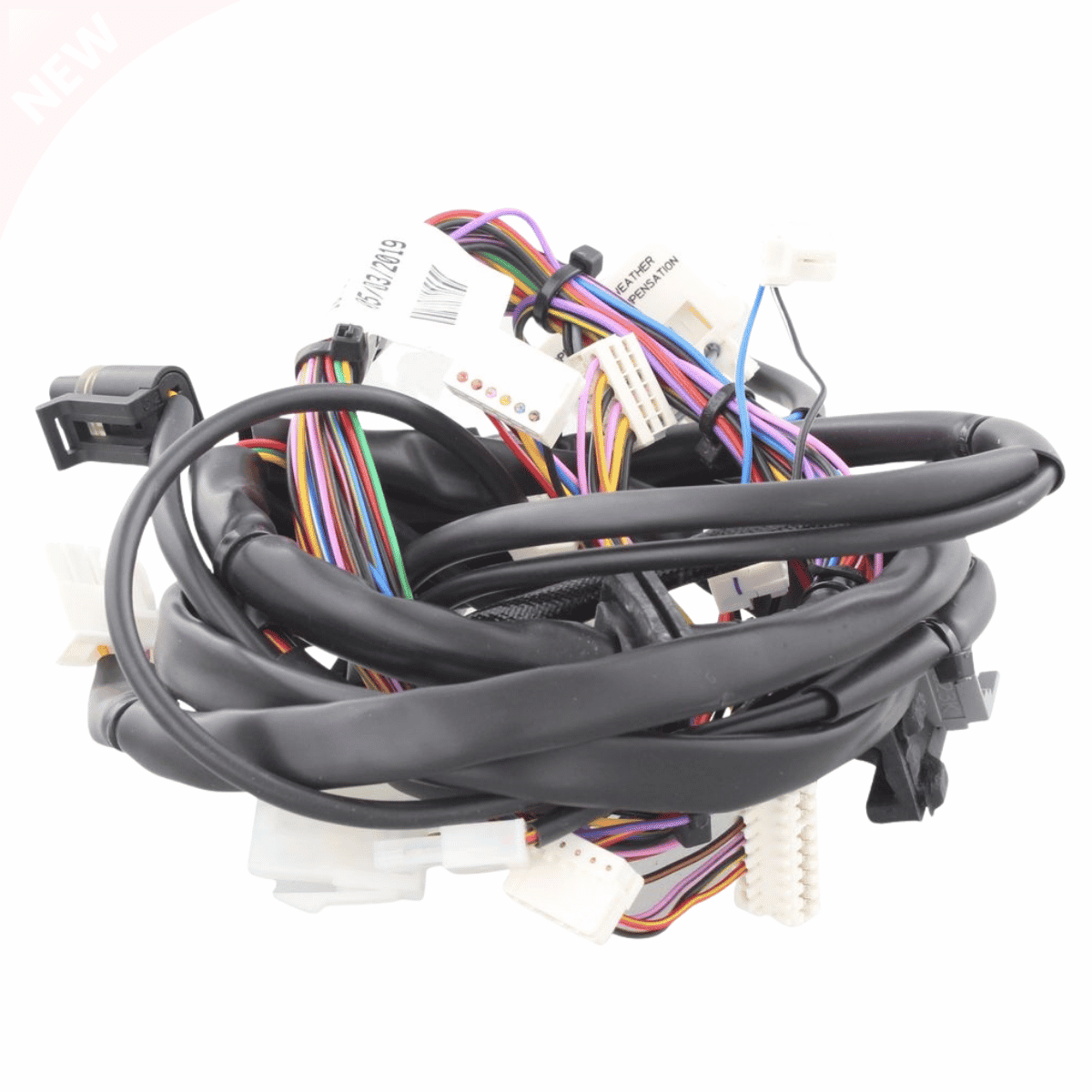

Ideal Wiring Harness Mains Voltage 177898
Ideal 177898 mains voltage wiring harness for Logic Code Combi and Logic Combi E models, build prefix ABT onwards.
At a glance
- Part type: Wiring harness, mains voltage
- Also known as 1777724
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£66.30
£55.25 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 177898 is a mains voltage wiring harness used in Ideal Logic combi appliances. It carries mains supply and control connections between the appliance's electrical components, so the boiler's PCB, fan, pump and other powered parts receive the voltage and signals they need to run.
This harness is listed for appliances built from prefix ABT onwards and belongs to the Logic Code Combi and Logic Combi E families. It is a direct replacement for the original lead where the existing harness has been damaged or has developed a poor connection.
Signs this part needs replacing
- The appliance fails to power up or cuts out intermittently with no obvious fault elsewhere
- Visible burning, scorching or discolouration at a harness plug or terminal
- Cracked, chafed or brittle insulation along the length of the lead
- Loose or poorly seated connectors that will not stay clipped in place
- Repeated electrical faults traced to the mains supply wiring during diagnosis
Before you order
- Check the appliance GC number against the compatibility list to confirm the harness suits your model
- Confirm the appliance build prefix is ABT or later, as this harness is listed for those builds
- Note the alternative part number 1777724 when cross-referencing an existing order or stock record
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 177898 |
|---|---|
| Barcode / EAN | 5022141778988 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1777724 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC CODE COMBI ES26 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI ES33 | — | — | — | |
| IDEAL IDEAL : LOGIC CODE COMBI ES38 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI E 24 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI E 30 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI E 35 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ES 24 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ES 30 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ES 35 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ESP 24 | — | — | — |
Showing 10 of 44 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — INDEPENDENT C24 (GC 47-348-68), INDEPENDENT C30 (GC 47-348-69), INDEPENDENT C35 (GC 47-348-70)
manualmanualIDEAL appliance manual — INDEPENDENT PLUS C24 (GC 47-348-85), INDEPENDENT PLUS C30 (GC 47-348-86), INDEPENDENT PLUS C35 (GC 47-348-87)
manualmanualIDEAL appliance manual — LOGIC + COMBI 24 (GC 47-348-65), LOGIC + COMBI 30 (GC 47-348-66), LOGIC + COMBI 35 (GC 47-348-67)
manualmanualIDEAL appliance manual — LOGIC CODE COMBI 26 (GC 47-348-74), LOGIC CODE COMBI 33 (GC 47-348-75), LOGIC CODE COMBI 36 (GC 47-348-76)
manualmanualIDEAL appliance manual — LOGIC CODE COMBI ES26 (GC 47-349-04), LOGIC CODE COMBI ES33 (GC 47-349-05), LOGIC CODE COMBI ES38 (GC 47-349-06)
manualmanualIDEAL appliance manual — LOGIC COMBI 24 (GC 47-348-56), LOGIC COMBI 30 (GC 47-348-57), LOGIC COMBI 35 (GC 47-348-58)
manualmanualIDEAL appliance manual — LOGIC COMBI E 24 (GC 47-348-88), LOGIC COMBI E 30 (GC 47-348-89), LOGIC COMBI E 35 (GC 47-348-90)
manualmanualIDEAL appliance manual — LOGIC COMBI ES 24 (GC 47-349-01), LOGIC COMBI ES 30 (GC 47-349-02), LOGIC COMBI ES 35 (GC 47-349-03)
manualmanualIDEAL appliance manual — ZANUSSI ULTRA COMBI 30 (GC 47-002-01), ZANUSSI ULTRA COMBI 35 (GC 47-002-02)
manualmanualIDEAL appliance manual — i MINI 24 (GC 47-348-77), i MINI 30 (GC 47-348-78)
manualNo technical questions yet for this part.
