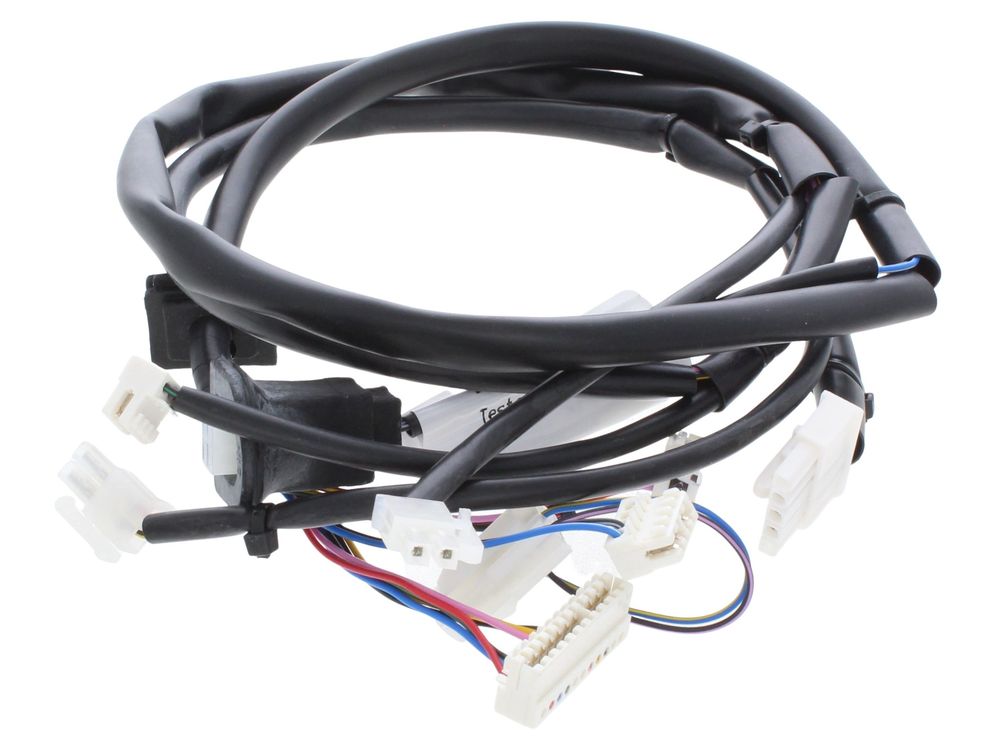

Ideal Wiring Harness Low Voltage 177738
Ideal low voltage wiring harness 177738 for Logic+ Heat and Ideal Commercial boilers, carrying control signals between the PCB and low voltage components.
At a glance
- Part type: Harness Low Voltage
- Also known as 1777722
£43.12
£35.93 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal low voltage wiring harness (177738) is a replacement loom that carries low voltage control signals around the boiler. It is manufactured by Ideal for the Logic+ Heat range and for Ideal Commercial appliances. The harness links the main control board to the low voltage sensors, switches and connectors the board monitors during a heating cycle.
Signs this part needs replacing
- The boiler locks out or throws intermittent fault codes with no obvious failed component
- The control board reports sensor or communication faults that clear and return
- Visible chafing, scorching or brittle insulation along the harness run
- Loose, corroded or heat-damaged connector plugs at the PCB or component end
- Faults that appear or disappear when the harness and its plugs are disturbed
Before you order
- Check the model and GC number on the appliance data badge against the compatibility list
- Cross-reference the alternative number 1777722 when working from older documentation
- Confirm the connector layout and plug count match the harness being removed
Mechanical
| Part type | Harness Low Voltage |
|---|
Compliance
| Manufacturer part number (MPN) | 177738 |
|---|---|
| Barcode / EAN | 5022141777387 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1777722 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL LOGIC + HEAT 12 | 41-409-97 | 41-409-97 | — | — |
| IDEAL LOGIC + HEAT 15 | 41-409-98 | 41-409-98 | — | — |
| IDEAL LOGIC + HEAT 18 | 41-409-99 | 41-409-99 | — | — |
| IDEAL LOGIC + HEAT 24 | 41-750-21 | 41-750-21 | — | — |
| IDEAL LOGIC + HEAT 30 | 41-750-22 | 41-750-22 | — | — |
| IDEAL LOGIC HEAT 12 | 41-399-99 | 41-399-99 | — | — |
| IDEAL LOGIC HEAT 15 | 41-409-93 | 41-409-93 | — | — |
| IDEAL LOGIC HEAT 18 | 41-409-94 | 41-409-94 | — | — |
| IDEAL LOGIC HEAT 24 | 41-409-95 | 41-409-95 | — | — |
| IDEAL LOGIC HEAT 30 | 41-409-96 | 41-409-96 | — | — |
Showing 10 of 11 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — LOGIC + HEAT 12 (GC 41-409-97), LOGIC + HEAT 15 (GC 41-409-98), LOGIC + HEAT 18 (GC 41-409-99), LOGIC + HEAT 24 (GC 41-750-21), LOGIC + HEAT 30 (GC 41-750-22)
manualmanualIDEAL appliance manual — LOGIC HEAT 12 (GC 41-399-99), LOGIC HEAT 15 (GC 41-409-93), LOGIC HEAT 18 (GC 41-409-94), LOGIC HEAT 24 (GC 41-409-95), LOGIC HEAT 30 (GC 41-409-96)
