Ideal Flow Manifold Assembly 177728

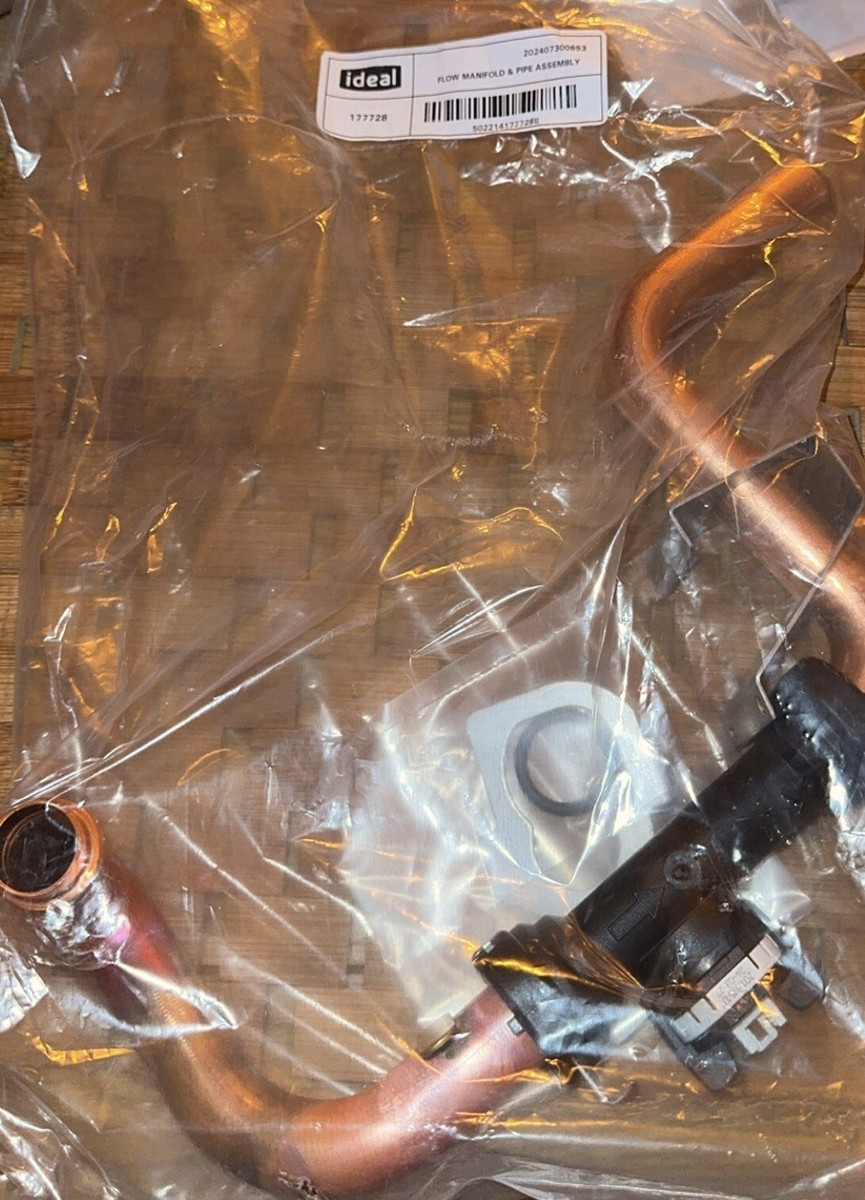

Flow manifold and pipe assembly for Ideal Logic+ Heat and Ideal Commercial appliances, part 177728, routing heating water to the circuits.
At a glance
- Part type: Flow manifold and pipe assembly
- Also known as 1376502, 177728IDE
£92.60
£77.17 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 177728 is a flow manifold and pipe assembly used in Ideal Logic+ Heat and Ideal Commercial appliances. It forms part of the hydraulic assembly inside the boiler casing, taking heated primary water and distributing it to the individual heating circuits. The assembly is supplied as a matched component, so its pipe runs and connection points line up with the appliance it is built for.
Signs this part needs replacing
- Uneven or reduced heat across radiators or heating circuits
- Water weeping, dripping or staining around the manifold body or pipe joints
- Kettling, gurgling or trapped air noise traced back to the manifold
- Boiler locking out or reporting a flow-related fault
- Visible corrosion, scale build-up or cracking on the manifold or its pipework
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct variant.
- Confirm the model and serial number, as this assembly serves several Logic+ Heat and Ideal Commercial variants.
- Inspect the seals and O-rings at the manifold connections and renew them if they are compressed or perished.
- Compare the new assembly against the removed part before fitting.
Mechanical
| Part type | Flow Manifold |
|---|
Compliance
| Manufacturer part number (MPN) | 177728 |
|---|---|
| Barcode / EAN | 4024074453513 |
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1376502, 177728IDE |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL LOGIC + HEAT 12 | 41-409-97 | 41-409-97 | — | — |
| IDEAL LOGIC + HEAT 15 | 41-409-98 | 41-409-98 | — | — |
| IDEAL LOGIC + HEAT 18 | 41-409-99 | 41-409-99 | — | — |
| IDEAL LOGIC + HEAT 2 H12 | 41-860-20 | 41-860-20 | — | — |
| IDEAL LOGIC + HEAT 2 H15 | 41-860-21 | 41-860-21 | — | — |
| IDEAL LOGIC + HEAT 2 H18 | 41-860-22 | 41-860-22 | — | — |
| IDEAL LOGIC + HEAT 2 H24 | 41-860-23 | 41-860-23 | — | — |
| IDEAL LOGIC + HEAT 2 H30 | 41-860-24 | 41-860-24 | — | — |
| IDEAL LOGIC + HEAT 24 | 41-750-21 | 41-750-21 | — | — |
| IDEAL LOGIC + HEAT 30 | 41-750-22 | 41-750-22 | — | — |
Showing 10 of 52 compatible appliances.
