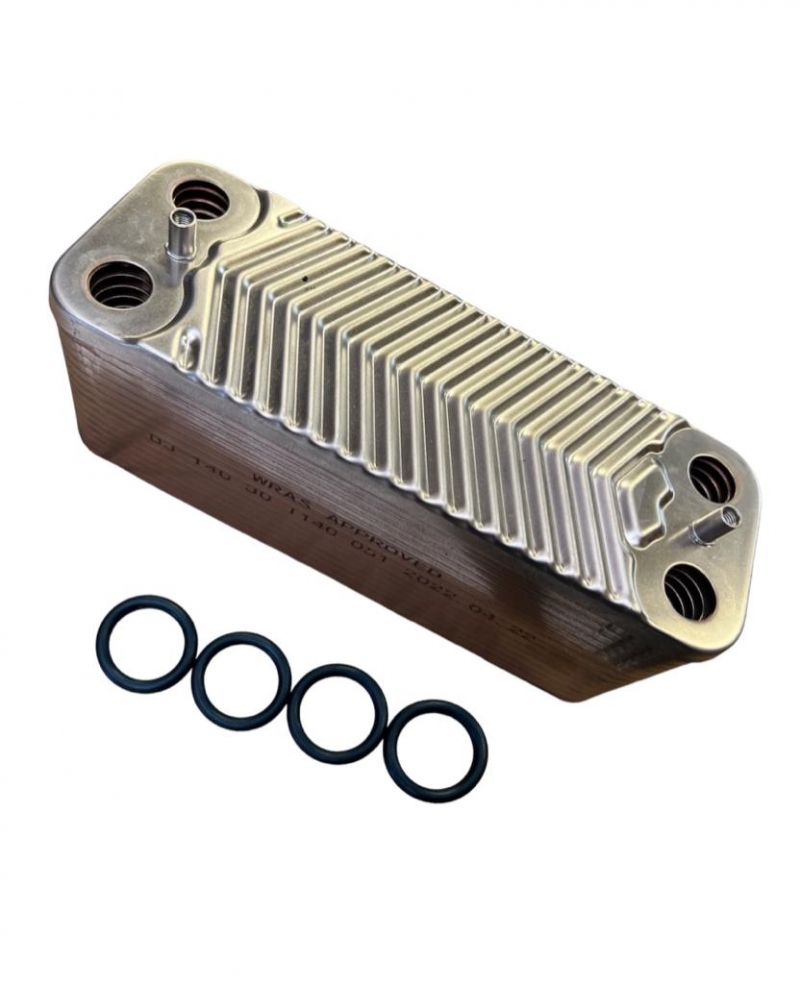

Ideal Heat Exchanger 24 Plate HIU 177631

The Ideal 177631 is a 24-plate heat exchanger intended for use in a heat interface unit (HIU). It transfers heat between the primary circuit and the domestic hot water or heating circuit, and the plate count determines the surface area available for that transfer. This is a plate-type component supplied for Ideal Commercial appliances.

• Domestic hot water temperature that fluctuates or fails to reach the set point
• Reduced hot water flow rate or a noticeable drop in output compared with when the unit was installed
• Scale or debris blocking the plate channels, often after poor water quality or a lack of inhibitor
• Weeping or dripping from the plate pack, gasket edges or connections
• Kettling, banging or unusual noise from the heat exchanger during demand
• A pressure differential fault or lockout traced to a restricted or fouled exchanger

• Confirm the appliance model and serial number against the compatibility list, as HIU assemblies vary between builds
• Check the existing exchanger for plate count and connection arrangement so the replacement matches
• Note the alternative number 1180284 when cross-referencing older documentation
• Consider whether new plate gaskets or seals are needed for reassembly, as these are handled separately from the exchanger
• This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
