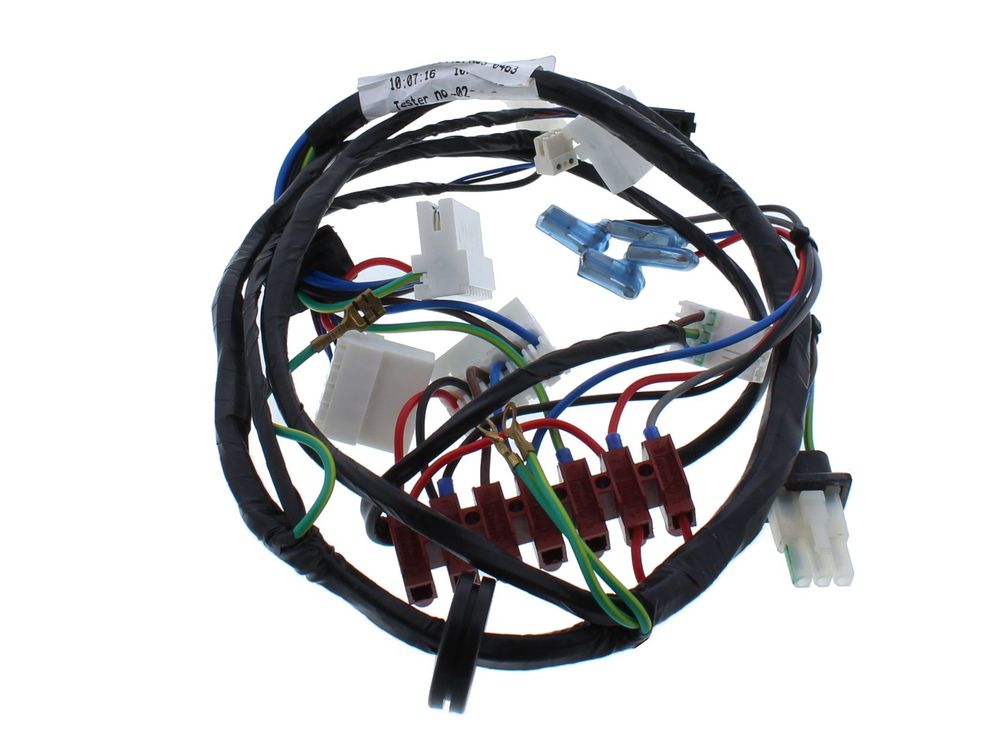

Ideal Wiring Harness Mains Base Combi 177609
Ideal 177609 mains base wiring harness for Classic Combi, Esprit Eco and Exclusive combi models; alternative number 1782754.
At a glance
- Part type: Wiring harness (mains base)
- Also known as 1782754
£78.00
£65.00 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 177609 is a mains base wiring harness used on Ideal combi appliances. It forms part of the electrical loom that carries the mains supply from the appliance's base connection point through to the internal control and safety components. It is listed under the Cables, Leads & Wiring Harnesses spare part category and is supplied by Ideal for its Classic Combi, Esprit Eco and Exclusive ranges.
Signs this part needs replacing
- The appliance fails to power up, or power is intermittent when the unit is switched on
- Blown fuses or tripping at the mains base connection point
- Visible damage to the harness: scorched, brittle or cracked insulation, or exposed conductor
- Loose or corroded terminals where the harness meets the mains base or control board
- Faults that appear or disappear when the wiring loom is moved or reseated
Before you order
- Check the appliance model and GC number against the compatibility list before ordering, as the same harness is used across several Ideal ranges
- Confirm the number on the existing harness matches 177609 or the alternative number 1782754
- Inspect the mains base terminals and any associated seals while the appliance is open, and replace anything that shows heat damage
- Work on the appliance electrical supply should only be carried out by a competent person, with the unit isolated at the mains before any harness is disconnected
Mechanical
| Part type | Cables, Leads & Wiring Harnesses |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | 177609 |
|---|---|
| Barcode / EAN | 5022141776090 |
| Commodity code | 8544 42 90 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1782754 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL CLASSIC COMBI 24 | 47-349-07 | 47-349-07 | — | — |
| IDEAL CLASSIC COMBI 30 | 47-349-08 | 47-349-08 | — | — |
| IDEAL ESPRIT ECO 24 | 47-348-91 | 47-348-91 | — | — |
| IDEAL ESPRIT ECO 30 | 47-348-92 | 47-348-92 | — | — |
| IDEAL EXCLUSIVE 24 COMBI | 47-349-41 | 47-349-41 | — | — |
| IDEAL EXCLUSIVE 30 COMBI | 47-349-42 | 47-349-42 | — | — |
| IDEAL EXCLUSIVE 35 COMBI | 47-349-43 | 47-349-43 | — | — |
| IDEAL INSTINCT 24 | 47-349-09 | 47-349-09 | — | — |
| IDEAL INSTINCT 30 | 47-349-10 | 47-349-10 | — | — |
| IDEAL INSTINCT 35 | 47-349-11 | 47-349-11 | — | — |
Showing 10 of 21 compatible appliances.
