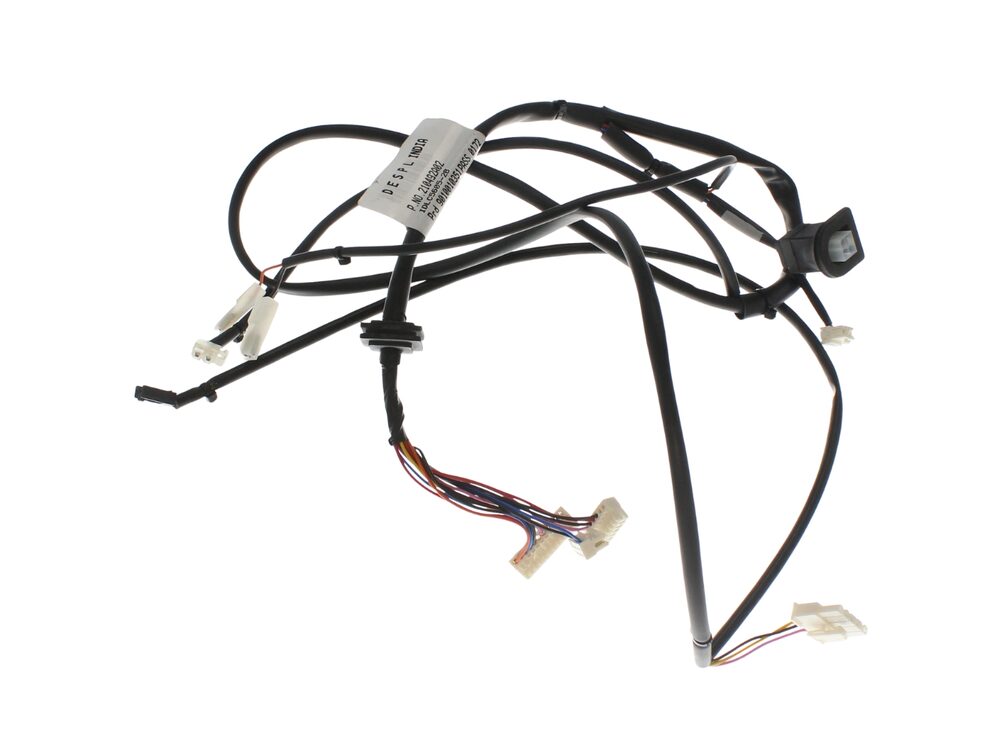

Ideal Wiring Harness Safety Extra Low Voltage 177554
Ideal 177554 extra low voltage safety wiring harness for Logic Combi E and ES boilers, supplied singly as a direct replacement loom.
At a glance
- Also known as 1777713
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
£35.11
£29.26 ex. VAT · VAT at 20%
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 177554 is an extra low voltage safety harness — a pre-terminated wiring loom that carries low voltage signals between the safety and control components inside the boiler. It is manufactured by Ideal Heating for the Logic Combi appliance family. The harness forms part of the boiler's electronics and controls group, linking the safety circuit so the appliance can monitor and shut down correctly.
Signs this part needs replacing
- Boiler locks out or fails to fire with no obvious fault at the gas or water side
- Intermittent faults that appear and clear when the loom or its plugs are disturbed
- Error codes relating to the safety circuit or control electronics
- Visible damage to the harness: cracked insulation, scorched or brittle conductors, corroded pins
- Loose, poorly seated or heat-damaged connectors at either end of the loom
Before you order
- Check the GC number on the appliance data badge against the compatibility list to confirm the correct harness for your model.
- Note the alternative part number 1777713 when cross-referencing against older documentation or stock records.
- This part is fitted to a gas appliance; installation must be carried out by a Gas Safe registered engineer.
Mechanical
| Part type | Extra Low Voltage Safety Harness |
|---|
Compliance
| Manufacturer part number (MPN) | 177554 |
|---|---|
| Barcode / EAN | 5022141775543 |
| Commodity code | 8544 42 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 1777713 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC COMBI E 24 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI E 30 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI E 35 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ES 24 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ES 30 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ES 35 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ESP 24 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ESP 30 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ESP 35 | — | — | — | |
| IDEAL INDEPENDENT C24 | 47-348-68 | 47-348-68 | — | — |
Showing 10 of 32 compatible appliances.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
IDEAL appliance manual — INDEPENDENT C24 (GC 47-348-68), INDEPENDENT C30 (GC 47-348-69), INDEPENDENT C35 (GC 47-348-70)
manualmanualIDEAL appliance manual — INDEPENDENT PLUS C24 (GC 47-348-85), INDEPENDENT PLUS C30 (GC 47-348-86), INDEPENDENT PLUS C35 (GC 47-348-87)
manualmanualIDEAL appliance manual — LOGIC COMBI 24 (GC 47-348-56), LOGIC COMBI 30 (GC 47-348-57), LOGIC COMBI 35 (GC 47-348-58)
manualmanualIDEAL appliance manual — LOGIC COMBI E 24 (GC 47-348-88), LOGIC COMBI E 30 (GC 47-348-89), LOGIC COMBI E 35 (GC 47-348-90)
manualmanualIDEAL appliance manual — LOGIC COMBI ES 24 (GC 47-349-01), LOGIC COMBI ES 30 (GC 47-349-02), LOGIC COMBI ES 35 (GC 47-349-03)
manualmanualIDEAL appliance manual — ZANUSSI ULTRA COMBI 30 (GC 47-002-01), ZANUSSI ULTRA COMBI 35 (GC 47-002-02)
manualmanualIDEAL appliance manual — i MINI 24 (GC 47-348-77), i MINI 30 (GC 47-348-78)
manualNo technical questions yet for this part.
