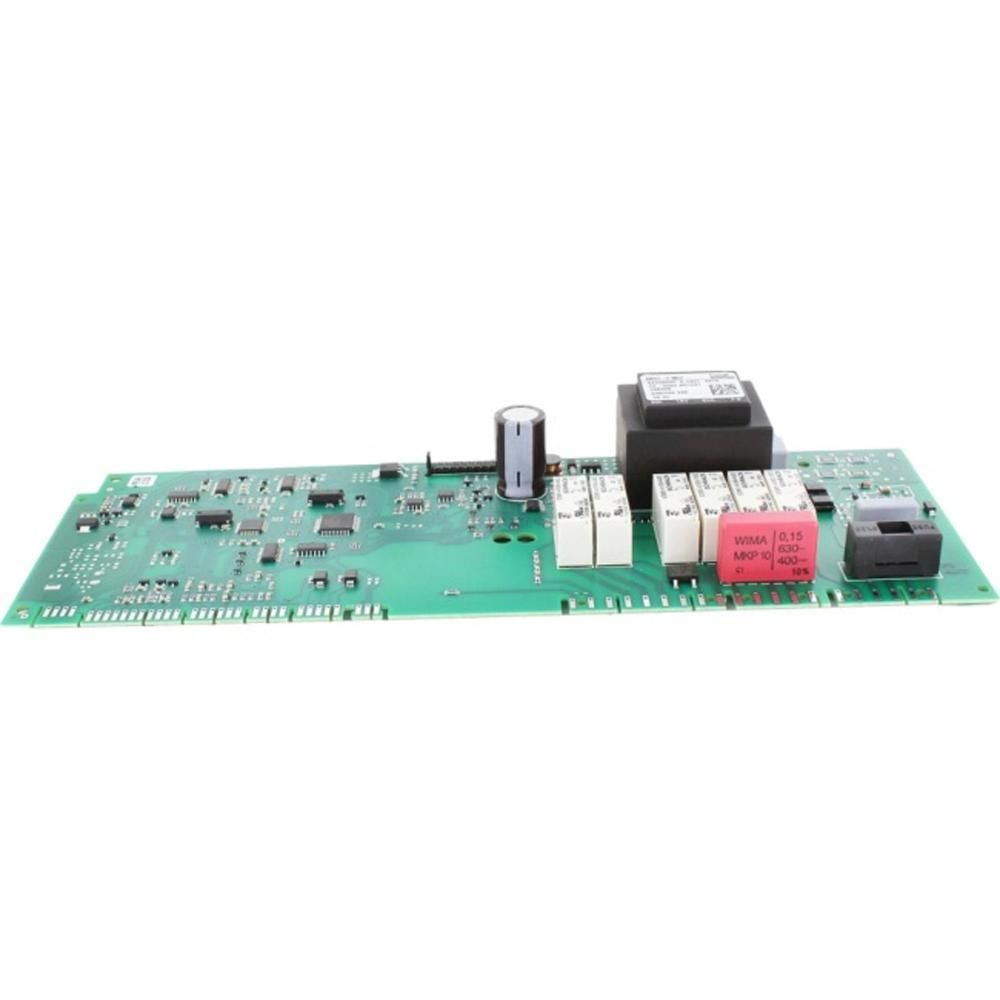

Ideal 177550 Primary PCB Kit I10
At a glance
- Part type: Printed circuit board (PCB)
- Also known as 1782493, N7102, IDEAL177550
Showing prices
£260.48
£217.07 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 177550 is a primary printed circuit board kit intended for Ideal I10 appliances. The primary PCB is the main control board, managing ignition sequencing, temperature regulation and the safety interlocks that keep the appliance running within its design limits. It is supplied under the Ideal Spares brand as a replacement control board.
Signs this part needs replacing
- The appliance fails to fire and drops into lockout with no mechanical fault evident elsewhere
- Fault or error codes appear on the control display and will not clear
- Heating or hot water output becomes intermittent, cutting in and out without a pattern
- The fan, pump or ignition sequence does not start when there is a call for heat
- The existing board shows scorching, heat damage, cracked solder joints or signs of moisture ingress
Before you order
- Match the number 177550 against the label on the board already fitted to the appliance
- Check the appliance model and GC number on the data badge to confirm the board is the correct variant
- Isolate the electrical supply at the spur before removing or fitting any control board
- Confirm whether the replacement board needs to be set up or configured for the specific appliance model after fitting
Mechanical
| Part type | Printed Circuit Boards (PCB) |
|---|---|
| Length | 0.1mm |
| Width | 0.1mm |
| Depth | 0.1mm |
Compliance
| Manufacturer part number (MPN) | IDEAL177550 |
|---|---|
| Commodity code | 8537 10 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | IDEAL177550, 1782493, N7102 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL IDEAL : LOGIC COMBI E 24 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI E 30 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI E 35 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ES 24 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ES 30 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ES 35 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ESP 24 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ESP 30 | — | — | — | |
| IDEAL IDEAL : LOGIC COMBI ESP 35 | — | — | — | |
| IDEAL INDEPENDENT C24 | 47-348-68 | 47-348-68 | — | — |
Showing 10 of 38 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — INDEPENDENT C24 (GC 47-348-68), INDEPENDENT C30 (GC 47-348-69), INDEPENDENT C35 (GC 47-348-70)
manualmanualIDEAL appliance manual — INDEPENDENT PLUS C24 (GC 47-348-85), INDEPENDENT PLUS C30 (GC 47-348-86), INDEPENDENT PLUS C35 (GC 47-348-87)
manualmanualIDEAL appliance manual — LOGIC CODE COMBI 26 (GC 47-348-74), LOGIC CODE COMBI 33 (GC 47-348-75), LOGIC CODE COMBI 36 (GC 47-348-76)
manualmanualIDEAL appliance manual — LOGIC CODE COMBI ES26 (GC 47-349-04), LOGIC CODE COMBI ES33 (GC 47-349-05), LOGIC CODE COMBI ES38 (GC 47-349-06)
manualmanualIDEAL appliance manual — LOGIC COMBI 24 (GC 47-348-56), LOGIC COMBI 30 (GC 47-348-57), LOGIC COMBI 35 (GC 47-348-58)
manualmanualIDEAL appliance manual — LOGIC COMBI E 24 (GC 47-348-88), LOGIC COMBI E 30 (GC 47-348-89), LOGIC COMBI E 35 (GC 47-348-90)
manualmanualIDEAL appliance manual — LOGIC COMBI ES 24 (GC 47-349-01), LOGIC COMBI ES 30 (GC 47-349-02), LOGIC COMBI ES 35 (GC 47-349-03)
manualmanualIDEAL appliance manual — ZANUSSI ULTRA COMBI 30 (GC 47-002-01), ZANUSSI ULTRA COMBI 35 (GC 47-002-02)
manualmanualIDEAL appliance manual — i MINI 24 (GC 47-348-77), i MINI 30 (GC 47-348-78)
manualNo technical questions yet for this part.
