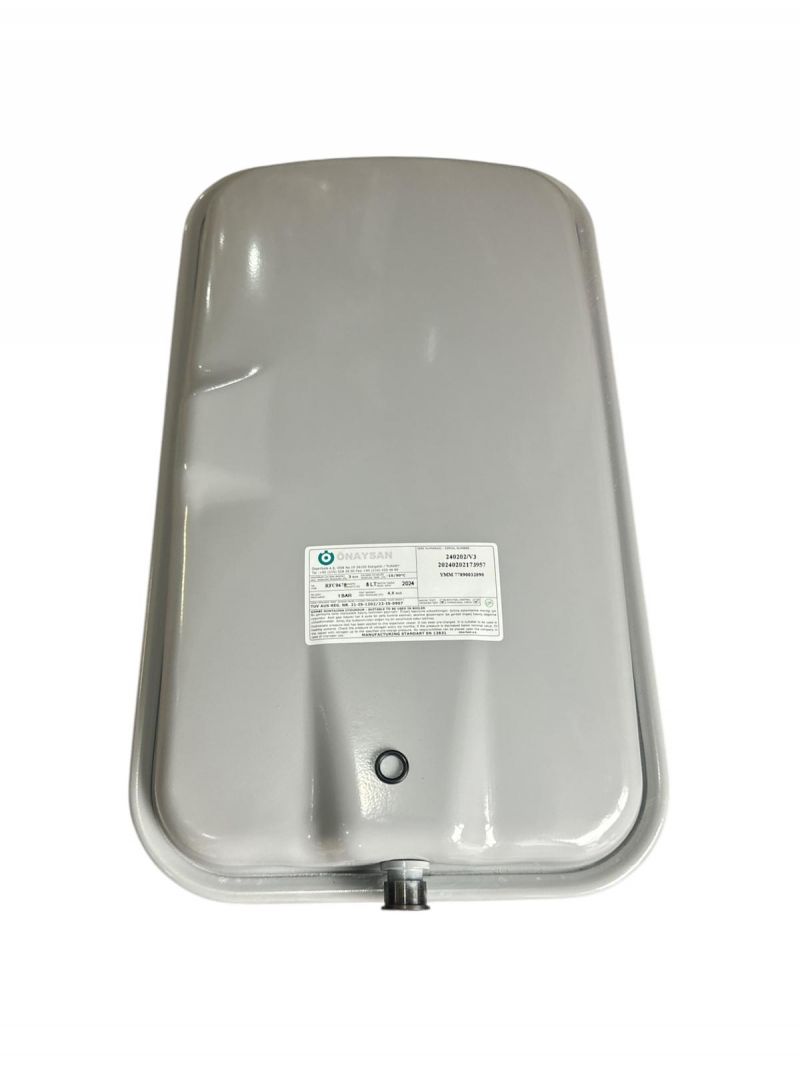

Ideal 177540 Expansion Vessel Kit
Ideal 177540 expansion vessel kit for i-mini, Independent and Code Combi boilers from ABK onwards.
At a glance
- Appliance family: i-mini, Independent, Code Combi
- Also known as IDEAL177540
Showing prices
£78.00
£65.00 ex. VAT · VAT at 20%
In stock
Cut-off passed — dispatches next working day
Not certain it's the right part? The technical team verifies fitment before dispatch — no charge, and it stops a second trip.Call the technical teamSend a technical question
Same-day dispatch
Ordered by 4pm Mon–Fri, 10:30am Sat.
30-day returns
Unused, in original packaging.
What it is
The Ideal 177540 is an expansion vessel kit supplied for Ideal domestic boilers. The expansion vessel absorbs the volume change in the sealed heating circuit as the water heats and cools, holding system pressure within the range the boiler expects. This kit is the version specified for i-mini, Independent and Code Combi appliances built from ABK onwards.
Signs this part needs replacing
- System pressure climbs steadily as the boiler heats up and falls again once it cools.
- The pressure relief valve discharges water, often leaving a trace from the discharge pipe.
- The boiler needs frequent topping up to keep the pressure gauge in the normal band.
- Pressure rises quickly from cold to hot, or the gauge reads high before the boiler has run.
- Water is visible around the vessel connection or the vessel feels heavy when disconnected.
Before you order
- Confirm the appliance model and that it is an ABK onwards build before ordering.
- Check the part number on the existing component or in the appliance documentation against 177540.
- Inspect the vessel connection and any seal at the same time, as these are disturbed during replacement.
- Work on the boiler casing and water circuit should be carried out by a competent person.
Mechanical
| Part type | Expansion Vessel Kit |
|---|---|
| Appliance family | i-mini, Independent, Code Combi |
Compliance
| Manufacturer part number (MPN) | 177540 |
|---|---|
| Commodity code | 8403 90 00 00 |
| GPC classification | Household Boilers/Furnaces/Tank Water Heaters Replacement Parts/Accessories |
| Alternative numbers | 5022141775406, IDEAL177540, IDEAL177540, IDEAL177540, N9097 |
| Make | Model / assembly | Reference | Years | Fitment |
|---|---|---|---|---|
| IDEAL INDEPENDENT + COMBI 24 | 47-349-27 | 47-349-27 | — | — |
| IDEAL INDEPENDENT + COMBI 30 | 47-349-28 | 47-349-28 | — | — |
| IDEAL INDEPENDENT + COMBI 35 | 47-349-29 | 47-349-29 | — | — |
| IDEAL INDEPENDENT C24 | 47-348-68 | 47-348-68 | — | — |
| IDEAL INDEPENDENT C30 | 47-348-69 | 47-348-69 | — | — |
| IDEAL INDEPENDENT C35 | 47-348-70 | 47-348-70 | — | — |
| IDEAL INDEPENDENT COMBI 24 | 47-349-24 | 47-349-24 | — | — |
| IDEAL INDEPENDENT COMBI 30 | 47-349-25 | 47-349-25 | — | — |
| IDEAL INDEPENDENT COMBI 35 | 47-349-26 | 47-349-26 | — | — |
| IDEAL INDEPENDENT PLUS C24 | 47-348-85 | 47-348-85 | — | — |
Showing 10 of 132 compatible appliances.
Fitment listings are a guide, not a guarantee. Plant-room assemblies get modified on site more often than not. Send us the GC number off the data badge and a photo of the existing valve and we will confirm before anything is dispatched.
Documents & drawings
Everything we hold for this part. Where a document exists but we don't hold it, the technical team will source it from the manufacturer — usually the same working day.
manual
IDEAL appliance manual — INDEPENDENT + COMBI 24 (GC 47-349-27), INDEPENDENT + COMBI 30 (GC 47-349-28), INDEPENDENT + COMBI 35 (GC 47-349-29)
manualmanualIDEAL appliance manual — INDEPENDENT C24 (GC 47-348-68), INDEPENDENT C30 (GC 47-348-69), INDEPENDENT C35 (GC 47-348-70)
manualmanualIDEAL appliance manual — INDEPENDENT COMBI 24 (GC 47-349-24), INDEPENDENT COMBI 30 (GC 47-349-25), INDEPENDENT COMBI 35 (GC 47-349-26)
manualmanualIDEAL appliance manual — INDEPENDENT PLUS C24 (GC 47-348-85), INDEPENDENT PLUS C30 (GC 47-348-86), INDEPENDENT PLUS C35 (GC 47-348-87)
manualmanualIDEAL appliance manual — INDEPENDENT SYSTEM S15 (GC 41-750-69), INDEPENDENT SYSTEM S18 (GC 41-750-70), INDEPENDENT SYSTEM S24 (GC 41-750-71), INDEPENDENT SYSTEM S30 (GC 41-750-72)
manualmanualIDEAL appliance manual — LOGIC + COMBI 24 (GC 47-348-65), LOGIC + COMBI 30 (GC 47-348-66), LOGIC + COMBI 35 (GC 47-348-67)
manualmanualIDEAL appliance manual — LOGIC + COMBI C24 (GC 47-349-15), LOGIC + COMBI C30 (GC 47-349-16), LOGIC + COMBI C35 (GC 47-349-17)
manualmanualIDEAL appliance manual — LOGIC + SYSTEM S15 (GC 41-750-65), LOGIC + SYSTEM S18 (GC 41-750-66), LOGIC + SYSTEM S24 (GC 41-750-67), LOGIC + SYSTEM S30 (GC 41-750-68)
manualmanualIDEAL appliance manual — LOGIC CODE COMBI 26 (GC 47-348-74), LOGIC CODE COMBI 33 (GC 47-348-75), LOGIC CODE COMBI 36 (GC 47-348-76)
manualmanualIDEAL appliance manual — LOGIC CODE COMBI ES26 (GC 47-349-04), LOGIC CODE COMBI ES33 (GC 47-349-05), LOGIC CODE COMBI ES38 (GC 47-349-06)
manualmanualIDEAL appliance manual — LOGIC COMBI 2 C24 (GC 47-349-93), LOGIC COMBI 2 C30 (GC 47-349-94), LOGIC COMBI 2 C35 (GC 47-349-95)
manualmanualIDEAL appliance manual — LOGIC COMBI 24 (GC 47-348-56), LOGIC COMBI 30 (GC 47-348-57), LOGIC COMBI 35 (GC 47-348-58)
manualmanualIDEAL appliance manual — LOGIC COMBI C24 (GC 47-349-18), LOGIC COMBI C30 (GC 47-349-19), LOGIC COMBI C35 (GC 47-349-20)
manualmanualIDEAL appliance manual — LOGIC COMBI E 24 (GC 47-348-88), LOGIC COMBI E 30 (GC 47-348-89), LOGIC COMBI E 35 (GC 47-348-90)
manualmanualIDEAL appliance manual — LOGIC COMBI ES 24 (GC 47-349-01), LOGIC COMBI ES 30 (GC 47-349-02), LOGIC COMBI ES 35 (GC 47-349-03)
manualmanualIDEAL appliance manual — LOGIC COMBI ESP1 24 (GC 47-349-21), LOGIC COMBI ESP1 30 (GC 47-349-22), LOGIC COMBI ESP1 35 (GC 47-349-23)
manualmanualIDEAL appliance manual — LOGIC MAX COMBI 2 C24 (GC 47-387-03), LOGIC MAX COMBI 2 C30 (GC 47-387-04), LOGIC MAX COMBI 2 C35 (GC 47-387-05)
manualmanualIDEAL appliance manual — LOGIC MAX COMBI C24 (GC 47-349-56), LOGIC MAX COMBI C30 (GC 47-349-57), LOGIC MAX COMBI C35 (GC 47-349-58)
manualmanualIDEAL appliance manual — LOGIC MAX SYSTEM 2 S15 (GC 41-796-97), LOGIC MAX SYSTEM 2 S18 (GC 41-796-98), LOGIC MAX SYSTEM 2 S24 (GC 41-796-99), LOGIC MAX SYSTEM 2 S30 (GC 41-860-01)
manualmanualIDEAL appliance manual — LOGIC MAX SYSTEM S15 (GC 41-796-13), LOGIC MAX SYSTEM S18 (GC 41-796-14), LOGIC MAX SYSTEM S24 (GC 41-796-15), LOGIC MAX SYSTEM S30 (GC 41-796-16)
manualmanualIDEAL appliance manual — LOGIC SYSTEM 15 (GC 41-750-24), LOGIC SYSTEM 15IE (GC 41-750-44), LOGIC SYSTEM 18 (GC 41-750-25), LOGIC SYSTEM 18IE (GC 41-750-45), LOGIC SYSTEM 24 (GC 41-750-26), LOGIC SYSTEM 24IE (GC 41-750-46), LOGIC SYSTEM 30 (GC 41-750-27), LOGIC SYSTEM 30IE (GC 41-750-47)
manualmanualIDEAL appliance manual — LOGIC SYSTEM 2 S15 (GC 41-796-85), LOGIC SYSTEM 2 S18 (GC 41-796-86), LOGIC SYSTEM 2 S24 (GC 41-796-87), LOGIC SYSTEM 2 S30 (GC 41-796-88)
manualmanualIDEAL appliance manual — LOGIC SYSTEM S15 (GC 41-750-61), LOGIC SYSTEM S18 (GC 41-750-62), LOGIC SYSTEM S24 (GC 41-750-63), LOGIC SYSTEM S30 (GC 41-750-64)
manualmanualIDEAL appliance manual — ZANUSSI ULTRA COMBI 30 (GC 47-002-01), ZANUSSI ULTRA COMBI 35 (GC 47-002-02)
manualmanualIDEAL appliance manual — ZANUSSI ULTRA SYSTEM 15 (GC 41-002-01), ZANUSSI ULTRA SYSTEM 18 (GC 41-002-02), ZANUSSI ULTRA SYSTEM 24 (GC 41-002-03), ZANUSSI ULTRA SYSTEM 30 (GC 41-002-04)
manualmanualIDEAL appliance manual — i MINI 24 (GC 47-348-77), i MINI 30 (GC 47-348-78)
manualmanualIDEAL appliance manual — i MINI C24 (GC 47-349-30), i MINI C30 (GC 47-349-31)
manualmanualKESTON appliance manual — COMBI 30 BOILER (GC 47-930-04), COMBI 35 BOILER (GC 47-930-05)
manualmanualKESTON appliance manual — COMBI C30 BOILER (GC 47-930-07), COMBI C35 BOILER (GC 47-930-08)
manualmanualKESTON appliance manual — SYSTEM 30 BOILER (GC 41-930-39)
manualNo technical questions yet for this part.
